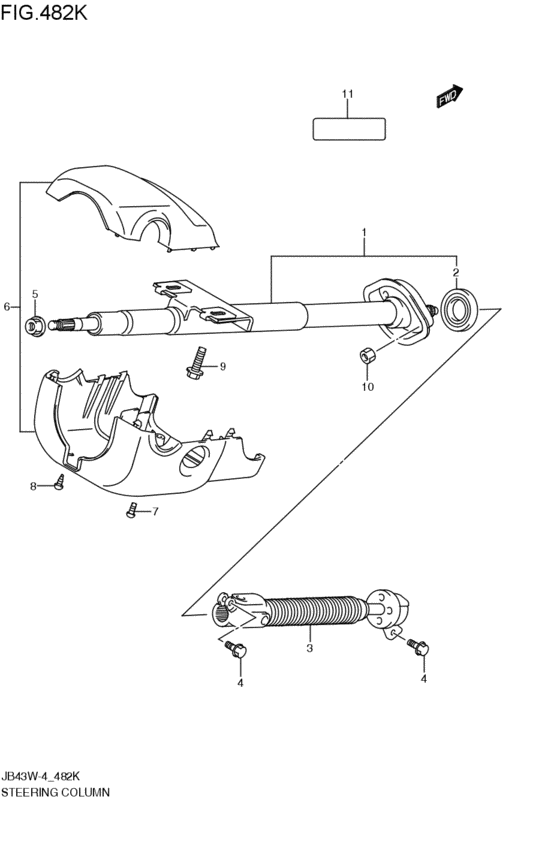

steering column (2004-10-01~) Diagram Suzuki JIMNY
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-76J00-000 COLUMN ASSY,COLPS STRG2004-10-01~ |
48200-76J00-000 |
US $535.81 |
||
|
2
|
2
48491-81A00-000 SEAL,STEERING COLUMN2004-10-01~ |
48491-81A00-000 |
US $2.72 |
||
|
3
|
3
48220-81A20-000 SHAFT ASSY,STEERING LOWER2004-10-01~ |
48220-81A20-000 |
US $668.30 |
||
|
4
|
4
09117-08068-000 BOLT(8X30)2004-10-01~ |
09117-08068-000 |
US $17.30 |
||
|
5
|
5
08316-10123-000
Nut
2004-10-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1012A-000 NUT2004-10-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
6
|
6
48400-76J00-P4Z COVER ASSY,STRG COLUMNグレ-; 2004-10-01~ |
48400-76J00-P4Z |
US $47.84 |
||
|
7
|
7
09136-05030-000 SCREW(5X12)2004-10-01~ |
09136-05030-000 |
US $0.96 |
||
|
8
|
8
03211-05123-000
Screw
2004-10-01~ |
03211-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03211-0512A-000 SCREW2004-10-01~ |
03211-0512A-000 |
US $0.80 |
||
|
9
|
9
09116-08120-000 BOLT(8X28)2004-10-01~ |
09116-08120-000 |
from US $6.38 |
||
|
10
|
10
08316-20083-000
Nut
2004-10-01~ |
08316-20083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-2008A-000 NUT2004-10-01~ |
08316-2008A-000 |
from US $0.80 |
||
|
11
|
11
79172-50G73-000
ラベル,ステアリングコラムエアバッグ
2004-10-01~ |
79172-50G73-000 |
— | ||
| replacement | |||||
|
11
|
11
79172-80G02-000 LABEL,STRG JOINT2004-10-01~ |
79172-80G02-000 |
US $4.48 |
||
