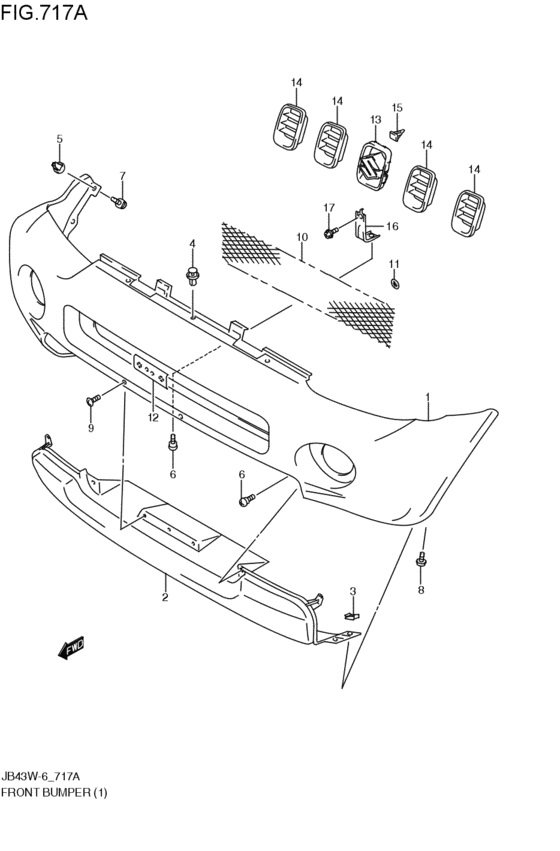

front bumper (JY; 2008-03-01~) Diagram Suzuki JIMNY
- Year
- 2008 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- JY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-81A50-799 BUMPER,FR(PRIMARY)JY; 2008-03-01~ |
71711-81A50-799 |
US $851.20 |
||
|
2
|
2
71712-81A00-W07 GUARD,FR UNDER SPLJY; 2008-03-01~ |
71712-81A00-W07 |
US $157.87 |
||
|
3
|
3
09148-06021-000 NUTNut, air cleaner JY; 2008-03-01~ |
09148-06021-000 |
from US $1.31 |
||
|
4
|
4
09409-07340-000 CLIPJY; 2008-03-01~ |
09409-07340-000 |
from US $1.19 |
||
|
5
|
5
09148-06007-000 NUTJY; 2008-03-01~ |
09148-06007-000 |
from US $0.88 |
||
|
6
|
6
09122-66007-000 SCREW(6X14)JY; 2008-03-01~ |
09122-66007-000 |
from US $0.80 |
||
|
7
|
7
09132-06022-000 SCREW(6X20)JY; 2008-03-01~ |
09132-06022-000 |
US $1.60 |
||
|
8
|
8
09125-06121-000 SCREW(6X16)JY; 2008-03-01~ |
09125-06121-000 |
from US $1.58 |
||
|
9
|
9
03541-0516A-000 SCREWJY; 2008-03-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
10
|
10
71718-81A00-000 NET,FR BUMPERJY; 2008-03-01~ |
71718-81A00-000 |
US $56.30 |
||
|
11
|
11
71717-81A01-000 NUT,FR BUMPER NETJY; 2008-03-01~ |
71717-81A01-000 |
from US $1.58 |
||
|
12
|
12
71771-56B00-000 RETAINER,FR LICENSE PLATEJY; 2008-03-01~ |
71771-56B00-000 |
from US $4.41 |
||
|
13
|
13
72111-76J10-5PK GARNISH,FR CTRJY; 2008-03-01~ |
72111-76J10-5PK |
from US $13.07 |
||
|
14
|
14
72112-81A00-5PK GARNISH,FR SIDEJY; 2008-03-01~ |
72112-81A00-5PK |
from US $12.53 |
||
|
15
|
15
09409-06323-000 CLIPJY; 2008-03-01~ |
09409-06323-000 |
US $1.12 |
||
|
16
|
16
71481-81A00-000 BRACKET,SPLASH GUARD CTRJY; 2008-03-01~ |
71481-81A00-000 |
US $7.04 |
||
|
17
|
17
02162-0616B-000 SCREWBolt, adjust JY; 2008-03-01~ |
02162-0616B-000 |
from US $0.80 |
