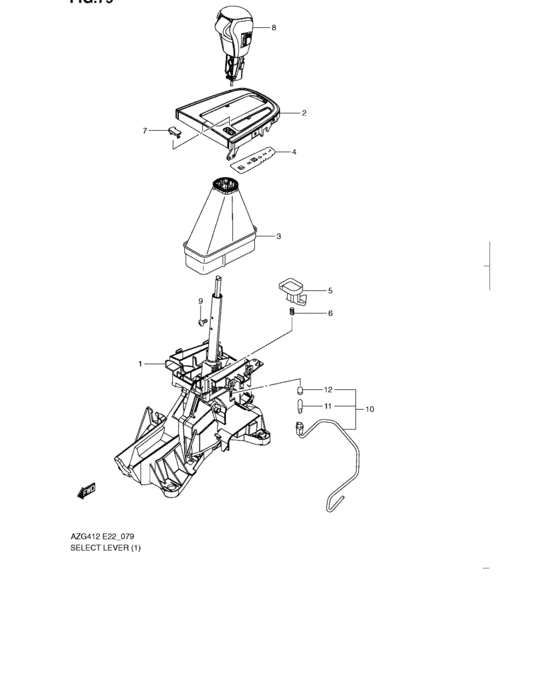

Select lever (AT:LHD) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-71L10-000 LEVER,SHIFTGL |
28110-71L10-000 |
from US $146.79 |
||
|
1
|
1
28110-71L50-000 LEVER,SHIFTGLX |
28110-71L50-000 |
US $492.05 |
||
|
2
|
2
28151-71L30-000 INDICATOR,SELECT LEVER |
28151-71L30-000 |
US $37.55 |
||
|
3
|
3
28152-71L10-000
BOOT,SELECT LEVER
|
28152-71L10-000 |
— | ||
|
4
|
4
28153-71L30-000 PLATE,SELECT POSITION |
28153-71L30-000 |
US $7.80 |
||
|
5
|
5
28156-71L30-000 BUTTON,SHIFT LOCK RELEASE |
28156-71L30-000 |
US $2.94 |
||
|
6
|
6
28157-68H10-000 SPRING |
28157-68H10-000 |
US $1.91 |
||
|
7
|
7
28157-71L30-000 CAP,INDICATOR |
28157-71L30-000 |
US $4.88 |
||
|
8
|
8
28160-71L30-000
KNOB ASSY,SELECT LEVER
|
28160-71L30-000 |
— | ||
| replacement | |||||
|
8
|
8
28160-71L31-000 KNOB ASSY,SELECT LEVER |
28160-71L31-000 |
US $53.73 |
||
|
9
|
9
28166-68H10-000 SCREW |
28166-68H10-000 |
US $1.58 |
||
|
10
|
10
28180-71L30-000 LAMP ASSY,SELECT LEVER ILLUM |
28180-71L30-000 |
US $14.94 |
||
|
11
|
11
28181-62J10-000 BULB |
28181-62J10-000 |
from US $2.81 |
||
|
12
|
12
28182-62J30-000 FILTER |
28182-62J30-000 |
US $2.13 |
||
