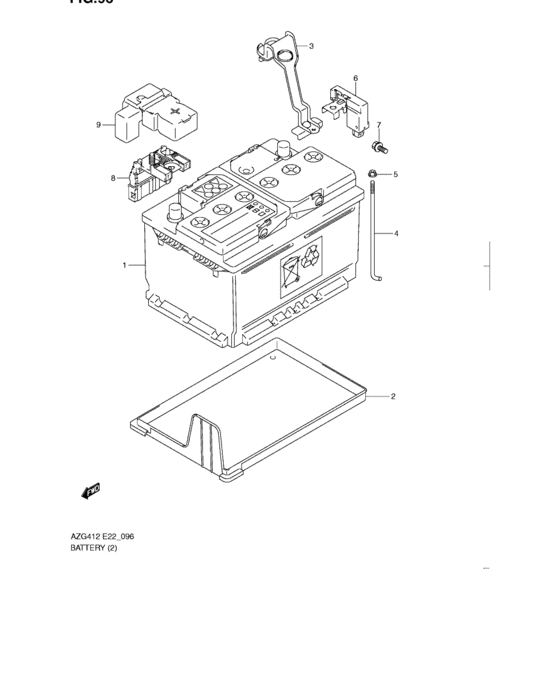

Battery (D13A) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-83E40-000
Battery
|
33610-83E40-000 |
— | ||
|
2
|
2
33660-68L10-000
Tray, battery
|
33660-68L10-000 |
— | ||
|
3
|
3
72511-68L10-000
Band, battery
|
72511-68L10-000 |
— | ||
|
4
|
4
72729-68L10-000
BOLT,BATTERY
|
72729-68L10-000 |
— | ||
|
5
|
5
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.96 |
||
|
6
|
6
32810-68L00-000 Sensor assy,current |
32810-68L00-000 |
US $98.33 |
||
| replacement | |||||
|
6
|
6
32810-68L10-000 SENSOR ASSY,CURRENT |
32810-68L10-000 |
from US $77.18 |
||
|
7
|
7
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
8
|
8
36739-68L00-000
Fuse, battery
|
36739-68L00-000 |
— | ||
|
9
|
9
36694-68L00-000
Cover, battery terminal
|
36694-68L00-000 |
— | ||
