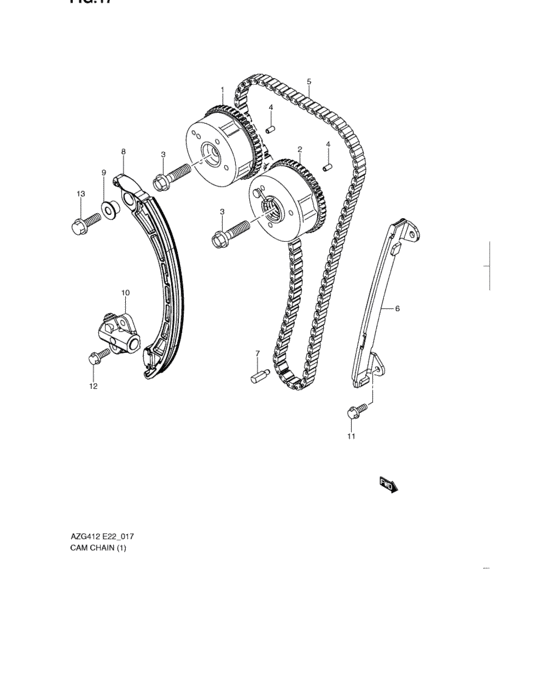

Cam chain (K12B) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12740-73KA0-000 SPROCKET ASSY,CAMSHAFT TIMING |
12740-73KA0-000 |
from US $255.42 |
||
|
2
|
2
12750-69LA0-000 SPROCKET ASSY,CAMSHAFT EXH |
12750-69LA0-000 |
US $755.20 |
||
|
3
|
3
12753-69L00-000 BOLT,CAMSHAFT SPROCKET |
12753-69L00-000 |
from US $2.72 |
||
|
4
|
4
09206-05001-000 PIN(3.4X5X10) |
09206-05001-000 |
from US $1.28 |
||
|
5
|
5
12761-69L00-000 CHAIN,TIMING |
12761-69L00-000 |
from US $82.73 |
||
|
6
|
6
12771-69L00-000 GUIDE,TIMING CHAIN |
12771-69L00-000 |
from US $19.20 |
||
|
7
|
7
12781-69G00-000 JET,TIMING CHAIN |
12781-69G00-000 |
from US $8.64 |
||
|
8
|
8
12811-69L00-000 Tensioner, Timing Chain |
12811-69L00-000 |
from US $52.31 |
||
|
9
|
9
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner |
12812-73G10-000 |
from US $4.48 |
||
|
10
|
10
12831-69L00-000 ADJUSTER ASSY,TENSIONER |
12831-69L00-000 |
from US $83.54 |
||
|
11
|
11
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
01550-0620A-000 Bolt |
01550-0620A-000 |
from US $0.76 |
||
|
13
|
13
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
