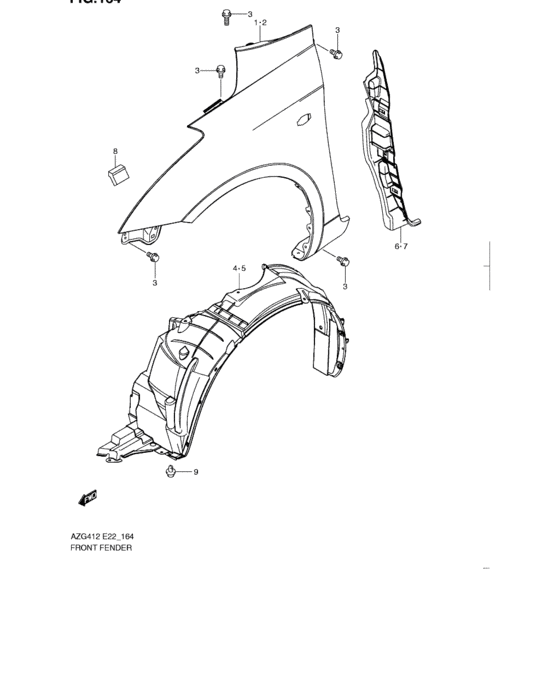

Front fender (FRONT FENDER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-68L00-000
Panel,front fender,r
|
57611-68L00-000 |
— | ||
|
2
|
2
57711-68L00-000
Panel,front fender,l
|
57711-68L00-000 |
— | ||
|
3
|
3
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72321-68L00-000
Lining, front fender rh
|
72321-68L00-000 |
— | ||
|
5
|
5
72322-68L00-000
Lining, front fender lh
|
72322-68L00-000 |
— | ||
|
6
|
6
72351-68L00-000
Cover,front fender,r
|
72351-68L00-000 |
— | ||
| replacement | |||||
|
6
|
6
72351-71L00-000 COVER,FR FENDER,R |
72351-71L00-000 |
from US $29.61 |
||
|
7
|
7
72352-68L00-000
Cover,front fender,l
|
72352-68L00-000 |
— | ||
| replacement | |||||
|
7
|
7
72352-71L00-000 COVER,FR FENDER,L |
72352-71L00-000 |
from US $30.13 |
||
|
8
|
8
72377-68L00-000
Cushion, fr fender
|
72377-68L00-000 |
— | ||
|
9
|
9
09409-07340-000 CLIP |
09409-07340-000 |
from US $1.22 |
||
