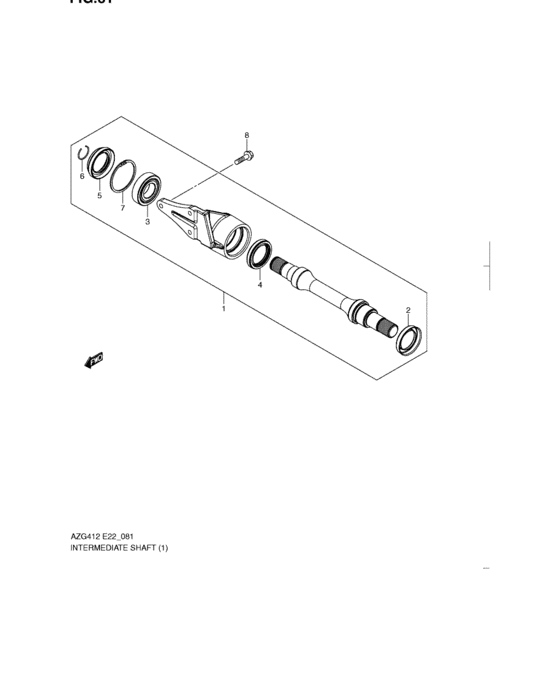

Intermediate shaft (MT:D13A) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27800-69L00-000
Shaft assy,drive intermediate
|
27800-69L00-000 |
— | ||
| replacement | |||||
|
1
|
1
27800-69L01-000 SHAFT ASSY,DRIVE INTERMEDIATE |
27800-69L01-000 |
US $485.76 |
||
|
2
|
2
27812-54L00-000 DEFLECTOR,INTERMEDIATE SHAFT |
27812-54L00-000 |
US $4.71 |
||
|
3
|
3
27831-54L00-000 BEARING,DRIVE INTERMEDIATE |
27831-54L00-000 |
from US $31.39 |
||
|
4
|
4
27841-64G00-000 SEAL,DRIVE INTERMEDIATE |
27841-64G00-000 |
from US $11.71 |
||
|
5
|
5
27841-71L00-000 SEAL,DRIVE INTERMEDIATE,R |
27841-71L00-000 |
US $10.67 |
||
|
6
|
6
09381-25006-000 RING,SNAP |
09381-25006-000 |
US $13.20 |
||
|
7
|
7
08331-4162A-000 CIRCLIP |
08331-4162A-000 |
from US $2.50 |
||
|
8
|
8
01550-0830A-000 BoltBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.06 |
||
