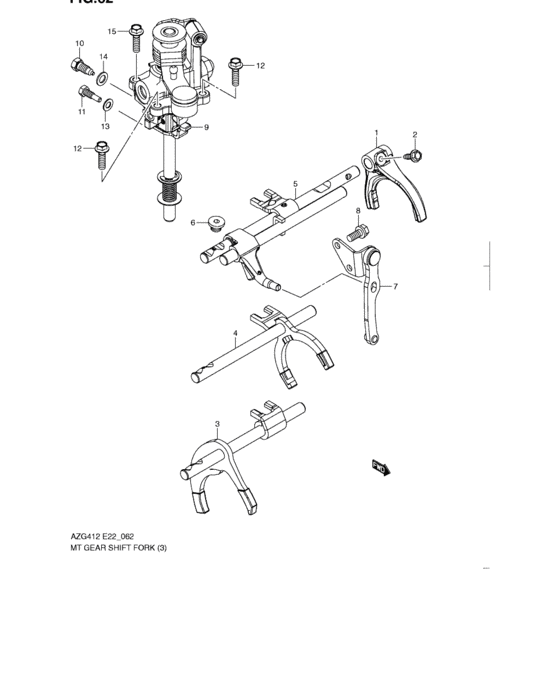

Mt gear shift fork (MT:D13A) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25231-54G01-000 FORK,5TH GEAR SHIFT |
25231-54G01-000 |
from US $35.82 |
||
|
2
|
2
25291-70C00-000 BOLT,LOW&HIGH SPEED FORK |
25291-70C00-000 |
from US $0.95 |
||
|
3
|
3
25401-71L00-000
SHAFT,LOW SPEED GR SHF
|
25401-71L00-000 |
— | ||
| replacement | |||||
|
3
|
3
25401-71L20-000 Shaft Comp,low Speed Gear Shf |
25401-71L20-000 |
US $94.94 |
||
|
4
|
4
25402-71L00-000
SHAFT,HIGH SPEED GR SHF
|
25402-71L00-000 |
— | ||
| replacement | |||||
|
4
|
4
25402-71L20-000
Shaft Comp,high Speed Gear Shf
|
25402-71L20-000 |
— | ||
|
5
|
5
25403-71L00-000
Shaft, 5th/rev gear shift
|
25403-71L00-000 |
— | ||
| replacement | |||||
|
5
|
5
25403-71L01-000 SHAFT,5TH & REV GR SHFFT |
25403-71L01-000 |
US $103.78 |
||
|
6
|
6
25416-70C00-000 BOLT,GR SHF LOCATING |
25416-70C00-000 |
from US $1.80 |
||
|
7
|
7
25460-M86J0-000
Lever, reverse gear shift
|
25460-M86J0-000 |
— | ||
|
8
|
8
01570-0820A-000 Bolt |
01570-0820A-000 |
from US $0.96 |
||
|
9
|
9
25010-69L20-000
Shaft assy, gear shift/select
|
25010-69L20-000 |
— | ||
| replacement | |||||
|
9
|
9
25010-69L21-000
Shaft assy,gear shift & select
|
25010-69L21-000 |
— | ||
|
10
|
10
25321-86G00-000
BOLT,GEAR SHF INTERLOCK
|
25321-86G00-000 |
— | ||
| replacement | |||||
|
10
|
10
25321-74PE0-000 BOLT,GEAR SHF INTERLOCK |
25321-74PE0-000 |
US $3.31 |
||
|
11
|
11
25584-51KA0-000
BOLT,5TH TO REV INTLK GUIDE
|
25584-51KA0-000 |
— | ||
| replacement | |||||
|
11
|
11
25584-51KA1-000 Bolt,5Th To Rev Intlk Guide |
25584-51KA1-000 |
US $2.90 |
||
|
12
|
12
09103-08419-000 BOLT(8X25) |
09103-08419-000 |
from US $2.08 |
||
|
13
|
13
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
14
|
14
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
15
|
15
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
