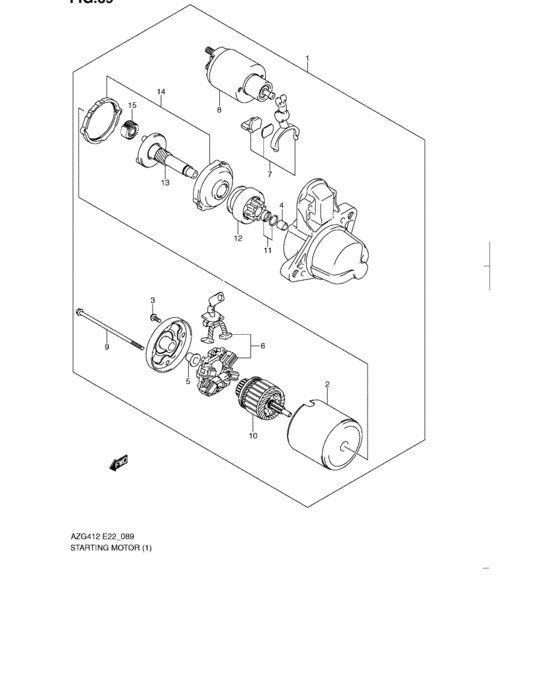

Starting motor (K12B:MT:N/EASS) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-51K10-000
MOTOR ASSY,STARTING
|
31100-51K10-000 |
— | ||
|
2
|
2
31110-63J00-000 YOKE ASSY |
31110-63J00-000 |
US $257.60 |
||
|
3
|
3
31136-79030-000 SCREW ASSY |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
3
|
3
31175-79030-000 Screw Set |
31175-79030-000 |
US $8.16 |
||
|
4
|
4
31152-63J00-000 BEARING,FRONT |
31152-63J00-000 |
from US $10.56 |
||
|
5
|
5
31172-64B60-000 BEARING,REAR |
31172-64B60-000 |
from US $8.21 |
||
|
6
|
6
31173-63J00-000 BRUSH ASSY |
31173-63J00-000 |
from US $32 |
||
|
7
|
7
31191-79K00-000 LEVER SET |
31191-79K00-000 |
US $11.68 |
||
|
8
|
8
31220-63J00-000 SWITCH ASSY |
31220-63J00-000 |
from US $120.80 |
||
|
9
|
9
31261-75F10-000 Bolt |
31261-75F10-000 |
from US $4.21 |
||
|
10
|
10
31311-73K10-000 ARMATURE |
31311-73K10-000 |
US $314.64 |
||
|
11
|
11
31313-86030-000 STOPPER SET |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
11
|
11
31314-86030-000 Stopper Set |
31314-86030-000 |
from US $11.50 |
||
|
12
|
12
31320-76G00-000 CLUTCH ASSY |
31320-76G00-000 |
from US $93.17 |
||
|
13
|
13
31341-73K10-000 SHAFT ASSY,GEAR |
31341-73K10-000 |
US $146.83 |
||
|
14
|
14
31343-73K10-000 INTERNAL GEAR ASSY |
31343-73K10-000 |
US $27.60 |
||
|
15
|
15
31344-86030-000 GEAR,PLNTY |
31344-86030-000 |
from US $18.09 |
||
