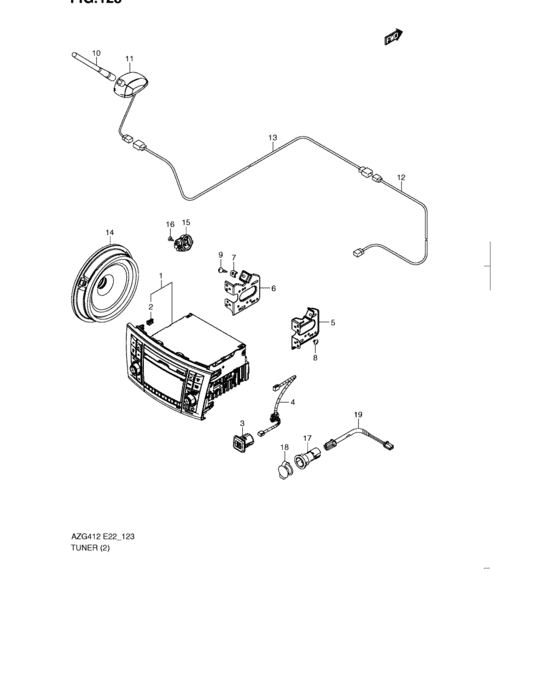

Tuner (W/TUNER) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Europe
- transmission
- MT
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-68L00-HVW
Tuner assy
N/BLUETOOTH |
39101-68L00-HVW |
— | ||
|
1
|
1
39101-68L10-HVW
Tuner assy
W/BLUETOOTH |
39101-68L10-HVW |
— | ||
|
2
|
2
09409-08342-000 CLIP |
09409-08342-000 |
from US $1.17 |
||
|
3
|
3
39105-57L10-000 SOCKET,USB |
39105-57L10-000 |
from US $35.57 |
||
|
4
|
4
39106-68L00-000 CABLE,USB |
39106-68L00-000 |
from US $45.88 |
||
|
5
|
5
39321-68L00-000
Bracket, tuner rh
|
39321-68L00-000 |
— | ||
|
6
|
6
39322-68L00-000
Bracket, tuner lh
|
39322-68L00-000 |
— | ||
|
7
|
7
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
8
|
8
02142-0506A-000 SCREW |
02142-0506A-000 |
US $0.80 |
||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
10
|
10
39251-68L00-000 Rod, antenna |
39251-68L00-000 |
US $33.75 |
||
|
11
|
11
39253-68L10-000 Base, antenna |
39253-68L10-000 |
US $59.06 |
||
|
12
|
12
39270-68L00-000
Feeder, ant i/p
|
39270-68L00-000 |
— | ||
|
13
|
13
39271-68L00-000
Feeder, antenna roof
GA,GL |
39271-68L00-000 |
— | ||
|
13
|
13
39271-68L10-000
Feeder, antenna roof
GLX:LHD |
39271-68L10-000 |
— | ||
|
13
|
13
39271-68L20-000
Feeder, antenna roof
GLX:RHD |
39271-68L20-000 |
— | ||
|
14
|
14
39102-68L00-000
Speaker assy
|
39102-68L00-000 |
— | ||
| replacement | |||||
|
14
|
14
39102-68L01-000 SPEAKER ASSY |
39102-68L01-000 |
US $32.57 |
||
|
15
|
15
39102-68LA0-000
Speaker assy, tweeter
W/TWEETER |
39102-68LA0-000 |
— | ||
|
16
|
16
03541-0410A-000 SCREWW/TWEETER |
03541-0410A-000 |
from US $0.80 |
||
|
17
|
17
39410-86G00-000
ACCESSORY SOCKET
|
39410-86G00-000 |
— | ||
| replacement | |||||
|
17
|
17
39410-86G02-000 Accessory Socket |
39410-86G02-000 |
US $21.60 |
||
|
18
|
18
39411-86G00-000 CAP,ACC SOCKET |
39411-86G00-000 |
US $8.48 |
||
|
19
|
19
39460-51K00-000
HARNESS ASSY,SOCKET
|
39460-51K00-000 |
— | ||
