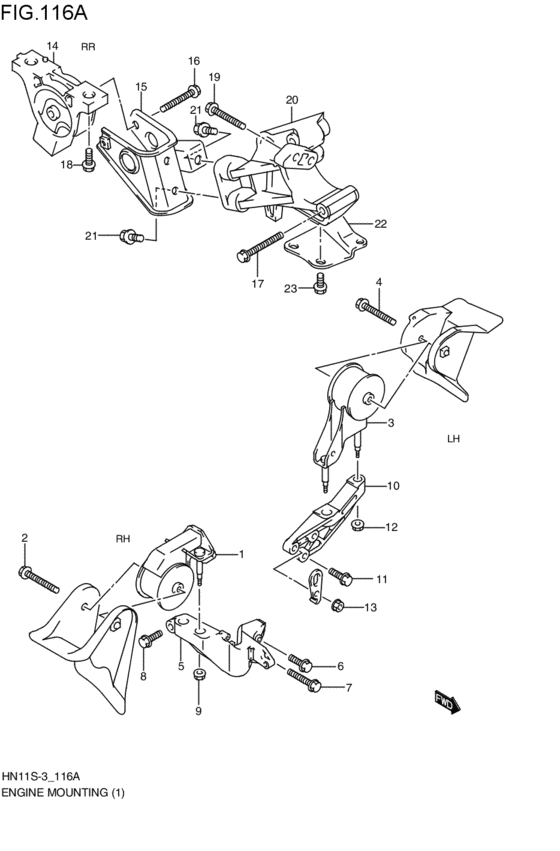

engine mounting (F6A:MT:2WD; 2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- F6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- EX
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-76G20-000
Mounting, engine rh
F6A:MT:2WD; 2000-10-01~2001-05-01 |
11610-76G20-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-83H00-000 MOUNTING,ENG,RF6A:MT:2WD; 2000-10-01~2001-05-01 |
11610-83H00-000 |
from US $140.67 |
||
|
2
|
2
09113-10004-000 BOLT(10X85)F6A:MT:2WD; 2000-10-01~2001-05-01 |
09113-10004-000 |
US $21.70 |
||
|
3
|
3
11620-76G10-000
マウンチング,エンジン,レフト
F6A:MT:2WD; 2000-10-01~2001-05-01 |
11620-76G10-000 |
— | ||
| replacement | |||||
|
3
|
3
11620-83H01-000 MOUNTING,ENG,LF6A:MT:2WD; 2000-10-01~2001-05-01 |
11620-83H01-000 |
from US $75.07 |
||
|
4
|
4
09113-10004-000 BOLT(10X85)F6A:MT:2WD; 2000-10-01~2001-05-01 |
09113-10004-000 |
US $21.70 |
||
|
5
|
5
11641-76G00-000
ブラケット,エンジンマウンチング,ライト
F6A:MT:2WD; 2000-10-01~2001-05-01 |
11641-76G00-000 |
— | ||
|
6
|
6
01550-08253-000
Bolt, rear
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0825B-000 BOLTF6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-0825B-000 |
from US $0.96 |
||
|
6
|
6
01550-0825A-000 BOLTF6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-0825A-000 |
from US $1.06 |
||
|
7
|
7
01550-08553-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-08553-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0855B-000 BoltF6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-0855B-000 |
from US $1.40 |
||
|
7
|
7
01550-0855A-000 BOLTBolt, gear holder F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-0855A-000 |
from US $1.22 |
||
|
8
|
8
01550-10353-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-1035A-000 BOLTBolt, fr fork upper F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1035A-000 |
from US $5.68 |
||
|
9
|
9
08316-10103-000
Nut
F6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTF6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
11651-76G00-000 BRACKET,ENG MTG,LF6A:MT:2WD; 2000-10-01~2001-05-01 |
11651-76G00-000 |
US $71.76 |
||
|
11
|
11
01550-10353-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1035A-000 BOLTBolt, fr fork upper F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1035A-000 |
from US $5.68 |
||
|
12
|
12
08316-10103-000
Nut
F6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUTF6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
08316-10103-000
Nut
F6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUTF6A:MT:2WD; 2000-10-01~2001-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
11710-76G30-000 MOUNTING,ENG RRF6A:MT:2WD; 2000-10-01~2001-05-01 |
11710-76G30-000 |
US $148 |
||
|
15
|
15
11740-83G00-000 BRACKET,ENG MTG RRF6A:MT:2WD; 2000-10-01~2001-05-01 |
11740-83G00-000 |
US $34.04 |
||
|
16
|
16
09113-10003-000 BOLT(10X75)F6A:MT:2WD; 2000-10-01~2001-05-01 |
09113-10003-000 |
US $19.50 |
||
|
17
|
17
01550-10853-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1085A-000 BOLTF6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1085A-000 |
US $1.76 |
||
|
18
|
18
01551-10353-000
ボルト
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01551-10353-000 |
— | ||
| replacement | |||||
|
18
|
18
01551-1035A-000 BoltF6A:MT:2WD; 2000-10-01~2001-05-01 |
01551-1035A-000 |
US $19.50 |
||
|
19
|
19
01550-10353-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-1035A-000 BOLTBolt, fr fork upper F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1035A-000 |
from US $5.68 |
||
|
20
|
20
11749-78F10-000 BRACKET,ENG MTG RRF6A:MT:2WD; 2000-10-01~2001-05-01 |
11749-78F10-000 |
US $107.46 |
||
|
21
|
21
09103-10342-000 BOLT(10X32)F6A:MT:2WD; 2000-10-01~2001-05-01 |
09103-10342-000 |
from US $6.14 |
||
|
22
|
22
11751-78F00-000 STIFFENER,ENG MTG BRKT RRF6A:MT:2WD; 2000-10-01~2001-05-01 |
11751-78F00-000 |
US $11.11 |
||
|
23
|
23
01550-10253-000
Bolt
F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-1025B-000 BoltBolt, rr swgarm bracket, l F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1025B-000 |
from US $5.59 |
||
|
23
|
23
01550-1025A-000 BOLTBolt, drive gear F6A:MT:2WD; 2000-10-01~2001-05-01 |
01550-1025A-000 |
from US $1.06 |
||
