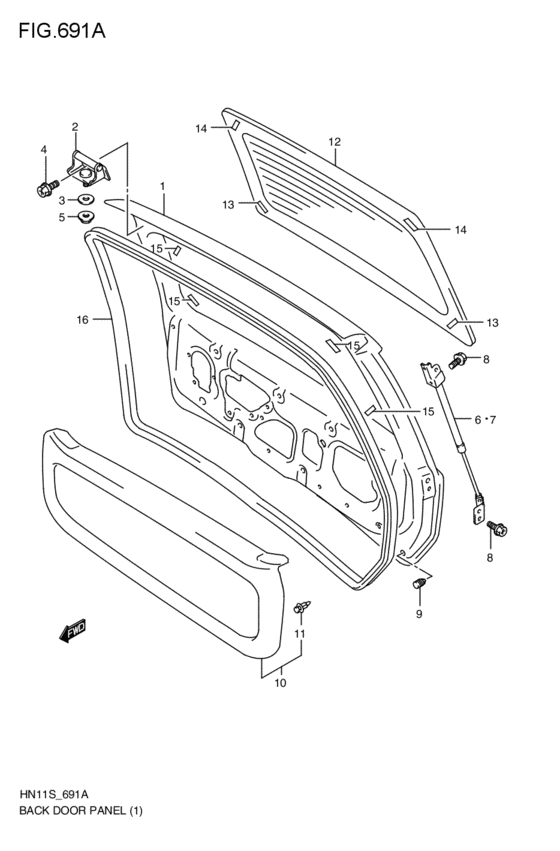

back door panel (C,G,X:NORMAL; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 5MT
- air bag
- AB
- abs
- ABS-N
- splr
- SPLR-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-74G01-000
パネルアッシ,バックドア
C; 1998-09-01~1999-04-01 |
69100-74G01-000 |
— | ||
| replacements | |||||
|
1
|
1
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLEC; 1998-09-01~1999-04-01 |
35819-72J00-000 |
US $2.58 |
||
|
1
|
1
69100-82GA0-000
パネルアッシ,バックドア
C; 1998-09-01~1999-04-01 |
69100-82GA0-000 |
— | ||
|
1
|
1
82841-82G02-000 HANDLE,BACK DOOR INNERC; 1998-09-01~1999-04-01 |
82841-82G02-000 |
US $7.62 |
||
|
2
|
2
69510-76G00-000 HINGE,BACK DOORC,G,X:NORMAL; 1998-09-01~1999-11-01 |
69510-76G00-000 |
US $25.39 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNGC,G,X:NORMAL; 1998-09-01~1999-11-01 |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
08361-25083-000
Nut
C,G,X:NORMAL; 1998-09-01~1999-11-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUTC,G,X:NORMAL; 1998-09-01~1999-11-01 |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-74G00-000
バランサ,バックドア,ライト
C; 1998-09-01~1998-11-01 |
81850-74G00-000 |
— | ||
|
6
|
6
81850-74G01-000
バランサ,バックドア,ライト
C; 1998-11-01~1999-04-01 |
81850-74G01-000 |
— | ||
|
7
|
7
81860-74G00-000
バランサ,バックドア,レフト
C; 1998-09-01~1998-11-01 |
81860-74G00-000 |
— | ||
|
7
|
7
81860-74G01-000
バランサ,バックドア,レフト
C; 1998-11-01~1999-04-01 |
81860-74G01-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket C,G,X:NORMAL; 1998-09-01~1999-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
76683-70C00-000 CUSHION,TRUNK LID/BACK DRC,G,X:NORMAL; 1998-09-01~1999-11-01 |
76683-70C00-000 |
US $1.92 |
||
|
10
|
10
83770-74G00-V12
Trim, back door (gray)
グレ-; C,G,X:NORMAL; 1998-09-01~1999-11-01 |
83770-74G00-V12 |
— | ||
| replacement | |||||
|
10
|
10
83770-74G00-T01
TRIM,BACK DOOR
グレ-; C,G,X:NORMAL; 1998-09-01~1999-11-01 |
83770-74G00-T01 |
— | ||
|
11
|
11
09409-08320-000 CLIPC,G,X:NORMAL; 1998-09-01~1999-11-01 |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
84570-74G00-000
Glass, back dr window
グリーン,ASAHI; C,G; 1998-09-01~1999-11-01 |
84570-74G00-000 |
— | ||
| replacement | |||||
|
12
|
12
84570-74G01-000
GLASS,BACK DR WINDOW
グリーン,ASAHI; C,G; 1998-09-01~1999-11-01 |
84570-74G01-000 |
— | ||
|
13
|
13
84572-74G00-000 MALE,GLASS FASTENER NO.1C,G,X:NORMAL; 1998-09-01~1999-11-01 |
84572-74G00-000 |
US $3.79 |
||
|
14
|
14
84513-76F00-000 MALE,GLASS FASTENER NO.2C,G,X:NORMAL; 1998-09-01~1999-11-01 |
84513-76F00-000 |
US $1.60 |
||
|
15
|
15
84515-65D00-000 FEMALE,GLASS FASTENER NO.2C,G,X:NORMAL; 1998-09-01~1999-11-01 |
84515-65D00-000 |
from US $3.51 |
||
|
16
|
16
84681-74G00-000 WEATHERSTRIP,BACK DR OPNGC,G,X:NORMAL; 1998-09-01~1999-11-01 |
84681-74G00-000 |
US $67.34 |
||
