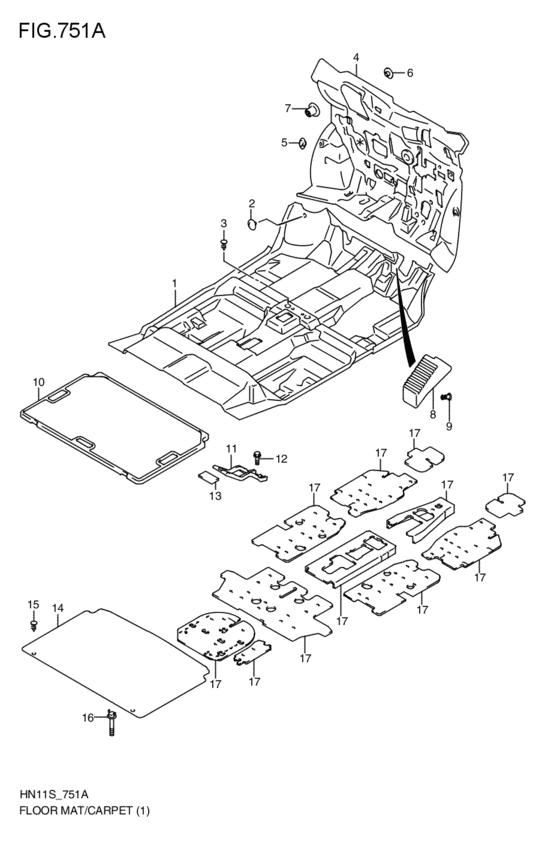

floor mat / carpet (C; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 5MT
- air bag
- AB
- abs
- ABS-N
- splr
- SPLR-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-74G00-S01
カーペット,フロア(グレー)
グレ-; C:MT; 1998-09-01~1999-04-01 |
75110-74G00-S01 |
— | ||
|
2
|
2
09148-05042-000 CLIPC; 1998-09-01~1999-11-01 |
09148-05042-000 |
US $1.12 |
||
|
3
|
3
09409-10302-T01 CLIP(GRAY)グレ-; C; 1998-09-01~1999-11-01 |
09409-10302-T01 |
US $1.22 |
||
|
4
|
4
75220-74G00-000 SILENCER,DASH PANELC; 1998-09-01~1999-11-01 |
75220-74G00-000 |
US $261.28 |
||
|
5
|
5
09148-05037-000 CLIPC; 1998-09-01~1999-11-01 |
09148-05037-000 |
from US $1.24 |
||
|
6
|
6
09148-05037-000 CLIPC; 1998-09-01~1999-11-01 |
09148-05037-000 |
from US $1.24 |
||
|
7
|
7
09148-06016-000 NUTC; 1999-03-01~1999-11-01 |
09148-06016-000 |
US $17.30 |
||
|
8
|
8
75491-76F00-000 PEDAL,FOOTRESTC; 1998-09-01~1999-11-01 |
75491-76F00-000 |
US $22.26 |
||
|
9
|
9
75492-76G00-000
Clip, footrest
C; 1998-09-01~1999-11-01 |
75492-76G00-000 |
— | ||
| replacement | |||||
|
9
|
9
75492-76G01-000 CLIP,FOOTRESTC; 1998-09-01~1999-11-01 |
75492-76G01-000 |
US $2.69 |
||
|
10
|
10
75440-74G12-V12
Lid, luggage box (gray)
グレ-; C; 1998-09-01~1999-11-01 |
75440-74G12-V12 |
— | ||
| replacement | |||||
|
10
|
10
75440-82G00-FK6 LID,LUGGAGE BOX(GRAY)グレ-; C; 1998-09-01~1999-11-01 |
75440-82G00-FK6 |
US $156.77 |
||
|
11
|
11
75452-74G00-000
ステー,ラゲッジリッド
C; 1998-09-01~1999-04-01 |
75452-74G00-000 |
— | ||
|
12
|
12
01551-10203-000
Bolt, 3rd striker
C; 1998-09-01~1999-04-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01551-1020A-000 BoltC; 1998-09-01~1999-04-01 |
01551-1020A-000 |
US $17.30 |
||
|
13
|
13
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) L:170X95>40X20; C; 1998-10-01~1999-04-01 |
33651-37000-000 |
from US $4.41 |
||
|
14
|
14
75453-74G00-S01
カバー,スペアタイヤ(グレー)
グレ-; C; 1998-09-01~1999-04-01 |
75453-74G00-S01 |
— | ||
|
15
|
15
09409-10302-T01 CLIP(GRAY)グレ-; C; 1998-09-01~1999-04-01 |
09409-10302-T01 |
US $1.22 |
||
|
16
|
16
75463-70B00-000
SCREW,SPARE TIRE
C; 1998-09-01~1999-11-01 |
75463-70B00-000 |
— | ||
|
17
|
17
99611-60A01-000 SHEET,SILENCER 800X1000X3C; 1998-09-01~1999-11-01 |
99611-60A01-000 |
US $62.40 |
||
