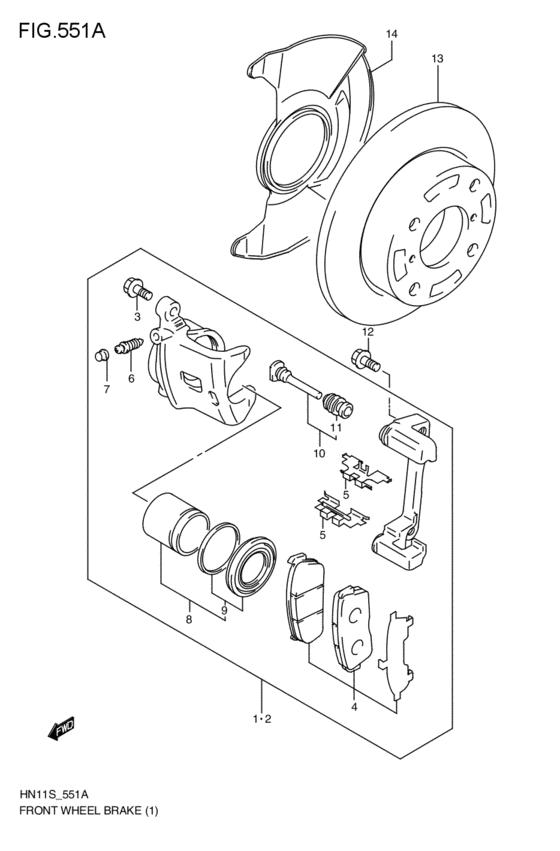

front wheel brakes (C; 1998-09-01~1999-04-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 5MT
- air bag
- AB
- abs
- ABS-N
- splr
- SPLR-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-76G00-000
キャリパアッシ,フロントブレーキ,ライト
C; 1998-09-01~1999-04-01 |
55101-76G00-000 |
— | ||
| replacements | |||||
|
1
|
1
55810-76G20-000 PAD SET,DISC BRAKEC; 1998-09-01~1999-04-01 |
55810-76G20-000 |
US $119.20 |
||
|
1
|
1
55101-72M00-999 CALIPER,FR BRAKE,RC; 1998-09-01~1999-04-01 |
55101-72M00-999 |
US $710.40 |
||
|
2
|
2
55102-76G00-000
キャリパアッシ,フロントブレーキ,レフト
C; 1998-09-01~1999-04-01 |
55102-76G00-000 |
— | ||
| replacements | |||||
|
2
|
2
55810-76G20-000 PAD SET,DISC BRAKEC; 1998-09-01~1999-04-01 |
55810-76G20-000 |
US $119.20 |
||
|
2
|
2
55102-72M00-999 CALIPER,FR BRAKE,LC; 1998-09-01~1999-04-01 |
55102-72M00-999 |
US $710.40 |
||
|
3
|
3
55206-78451-000
Bolt, pin
C; 1998-09-01~1999-04-01 |
55206-78451-000 |
— | ||
| replacement | |||||
|
3
|
3
55206-78452-000 BOLT,PINC; 1998-09-01~1999-04-01 |
55206-78452-000 |
US $4.77 |
||
|
4
|
4
55810-76G00-000
パッドセット,ディスクブレーキ
C; 1998-09-01~1999-04-01 |
55810-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
55810-76G20-000 PAD SET,DISC BRAKEC; 1998-09-01~1999-04-01 |
55810-76G20-000 |
US $119.20 |
||
|
5
|
5
55234-76G00-000 SPRING,PADC; 1998-09-01~1999-04-01 |
55234-76G00-000 |
US $6.88 |
||
|
6
|
6
55473-82030-000
Plug, bleeder
C; 1998-09-01~1999-04-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
6
|
6
55151-78451-000 PLUG,BLEEDERC; 1998-09-01~1999-04-01 |
55151-78451-000 |
from US $3.94 |
||
|
7
|
7
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug C; 1998-09-01~1999-04-01 |
55156-66310-000 |
from US $1.98 |
||
|
8
|
8
55840-76G00-000
PISTON / SEAL SET
C; 1998-09-01~1999-04-01 |
55840-76G00-000 |
— | ||
| replacement | |||||
|
8
|
8
55840-76G01-000 PISTON / SEAL SETC; 1998-09-01~1999-04-01 |
55840-76G01-000 |
US $23.56 |
||
|
9
|
9
55830-76G00-000
SEAL SET,PISTON
C; 1998-09-01~1999-04-01 |
55830-76G00-000 |
— | ||
| replacement | |||||
|
9
|
9
55830-76G01-000 SEAL SET,PISTONC; 1998-09-01~1999-04-01 |
55830-76G01-000 |
US $11.55 |
||
|
10
|
10
55850-76G00-000
PIN / BOOT SET
C; 1998-09-01~1999-04-01 |
55850-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
55850-76G01-000 PIN / BOOT SETC; 1998-09-01~1999-04-01 |
55850-76G01-000 |
from US $19.80 |
||
|
11
|
11
55201-60A00-000 BOOT,PINC; 1998-09-01~1999-04-01 |
55201-60A00-000 |
US $2.56 |
||
|
12
|
12
09117-12006-000 BOLT(12X27)C; 1998-09-01~1999-04-01 |
09117-12006-000 |
US $1.92 |
||
|
13
|
13
55311-76G00-000
ディスク,フロントブレーキ
C; 1998-09-01~1999-04-01 |
55311-76G00-000 |
— | ||
| replacement | |||||
|
13
|
13
55311-67H11-000 DISC,FR BRAKEC; 1998-09-01~1999-04-01 |
55311-67H11-000 |
US $117.60 |
||
|
14
|
14
55321-76G00-000
カバー,フロントブレーキディスクダスト
C; 1998-09-01~1999-04-01 |
55321-76G00-000 |
— | ||
| replacement | |||||
|
14
|
14
55321-76G10-000 COVER,FR BRAKE DISC DUSTC; 1998-09-01~1999-04-01 |
55321-76G10-000 |
US $24.84 |
||
