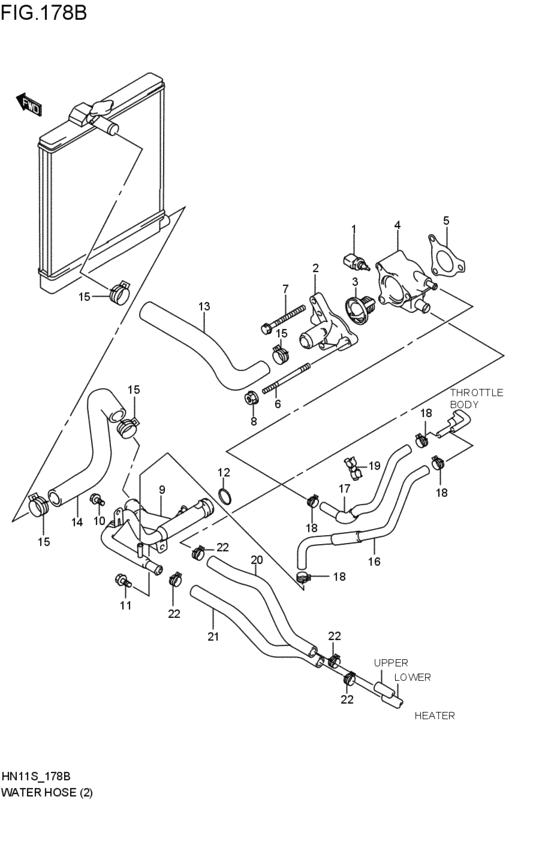

water hose (K6A:4V; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 5MT
- air bag
- AB
- abs
- ABS-N
- splr
- SPLR-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-50G01-000 Sensor,water TempK6A:4V; 1998-09-01~1999-11-01 |
13650-50G01-000 |
from US $62.33 |
||
|
2
|
2
17561-75F00-000
CAP,WATER THERMOSTAT
K6A:4V; 1998-09-01~1999-11-01 |
17561-75F00-000 |
— | ||
|
3
|
3
17670-50G10-000
THERMOSTAT,WATER 88 DEG
K6A:4V; 1998-09-01~1999-03-01 |
17670-50G10-000 |
— | ||
| replacement | |||||
|
3
|
3
17670-50G11-000 THERMOSTATK6A:4V; 1998-09-01~1999-03-01 |
17670-50G11-000 |
from US $18.99 |
||
|
3
|
3
17670-76G10-000
サーモスタット,ウォータ,88゜C
K6A:4V; 1999-03-01~1999-11-01 |
17670-76G10-000 |
— | ||
| replacement | |||||
|
3
|
3
17670-65G00-000 THERMOSTAT,WATER 88 DEGK6A:4V; 1999-03-01~1999-11-01 |
17670-65G00-000 |
from US $25.60 |
||
|
4
|
4
17690-78G00-000
ケース,サーモ
K6A:4V; 1998-09-01~1999-11-01 |
17690-78G00-000 |
— | ||
| replacement | |||||
|
4
|
4
17690-75FV1-000
CASE,THERMOSTAT
K6A:4V; 1998-09-01~1999-11-01 |
17690-75FV1-000 |
— | ||
|
5
|
5
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case K6A:4V; 1998-09-01~1999-11-01 |
17699-73G01-000 |
from US $3.74 |
||
|
6
|
6
01421-08753-000
Stud bolt
K6A:4V; 1998-09-01~1999-11-01 |
01421-08753-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0875A-000 BOLT,STUDK6A:4V; 1998-09-01~1999-11-01 |
01421-0875A-000 |
from US $6.49 |
||
|
7
|
7
01550-08803-000
Bolt (8x80)
K6A:4V; 1998-09-01~1999-11-01 |
01550-08803-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0880B-000 BoltBolt, muffler bracket & stand K6A:4V; 1998-09-01~1999-11-01 |
01550-0880B-000 |
from US $3.05 |
||
|
7
|
7
01550-0880A-000 BOLTK6A:4V; 1998-09-01~1999-11-01 |
01550-0880A-000 |
from US $1.67 |
||
|
8
|
8
08316-10083-000
Nut
K6A:4V; 1998-09-01~1999-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUTK6A:4V; 1998-09-01~1999-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
17830-78G00-000
パイプ,ウォータ,インレット
K6A:4V; 1998-09-01~1999-11-01 |
17830-78G00-000 |
— | ||
| replacement | |||||
|
9
|
9
17830-78GVV-000 PIPE,WATER INLETK6A:4V; 1998-09-01~1999-11-01 |
17830-78GVV-000 |
US $91.63 |
||
|
10
|
10
01550-06123-000
Bolt
K6A:4V; 1998-09-01~1999-11-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp K6A:4V; 1998-09-01~1999-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTK6A:4V; 1998-09-01~1999-11-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
01550-08163-000
Bolt, holder
K6A:4V; 1998-09-01~1999-11-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 BOLTK6A:4V; 1998-09-01~1999-11-01 |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BOLTBolt, rear K6A:4V; 1998-09-01~1999-11-01 |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe K6A:4V; 1998-09-01~1999-11-01 |
17849-53E00-000 |
from US $1.52 |
||
|
13
|
13
17852-78G00-000 HOSE,RADIATOR INLETK6A:4V; 1998-09-01~1999-11-01 |
17852-78G00-000 |
US $24 |
||
|
14
|
14
17854-78G10-000 HOSE,RDTR OUTLETK6A:4V; 1998-09-01~1999-11-01 |
17854-78G10-000 |
US $26.50 |
||
|
15
|
15
09402-32511-000 CLAMPK6A:4V; 1998-09-01~1999-11-01 |
09402-32511-000 |
from US $6.08 |
||
|
16
|
16
17958-78G50-000
Hose, throt outlet
K6A:4V; 1998-09-01~1999-11-01 |
17958-78G50-000 |
— | ||
| replacement | |||||
|
16
|
16
17958-78G51-000 HOSE,WTR THROT OUTLETK6A:4V; 1998-09-01~1999-11-01 |
17958-78G51-000 |
US $17.96 |
||
|
17
|
17
17959-78G50-000 HOSE,WTR THROT INLETK6A:4V; 1998-09-01~1999-11-01 |
17959-78G50-000 |
US $15.42 |
||
|
18
|
18
09401-12410-000 CLIPClip, filter outlet K6A:4V; 1998-09-01~1999-11-01 |
09401-12410-000 |
from US $1.52 |
||
|
19
|
19
09408-00173-000 CLAMPK6A:4V; 1998-09-01~1999-11-01 |
09408-00173-000 |
US $26.90 |
||
|
20
|
20
17871-78G00-000
Hose, heater inlet
K6A:4V; 1998-09-01~1999-11-01 |
17871-78G00-000 |
— | ||
| replacement | |||||
|
20
|
20
17871-78G11-000 HOSE,HTR INLETK6A:4V; 1998-09-01~1999-11-01 |
17871-78G11-000 |
US $11.67 |
||
|
21
|
21
17872-78G00-000
ホース,ヒータ,アウトレット
K6A:4V:MT; 1998-09-01~1999-11-01 |
17872-78G00-000 |
— | ||
| replacement | |||||
|
21
|
21
17872-78G11-000 HOSE,HTR OUTLETK6A:4V:MT; 1998-09-01~1999-11-01 |
17872-78G11-000 |
US $18.40 |
||
|
22
|
22
09401-18403-000 CLIPClip, heater hose K6A:4V:MT; 1998-09-01~1999-11-01 |
09401-18403-000 |
US $1.92 |
||
