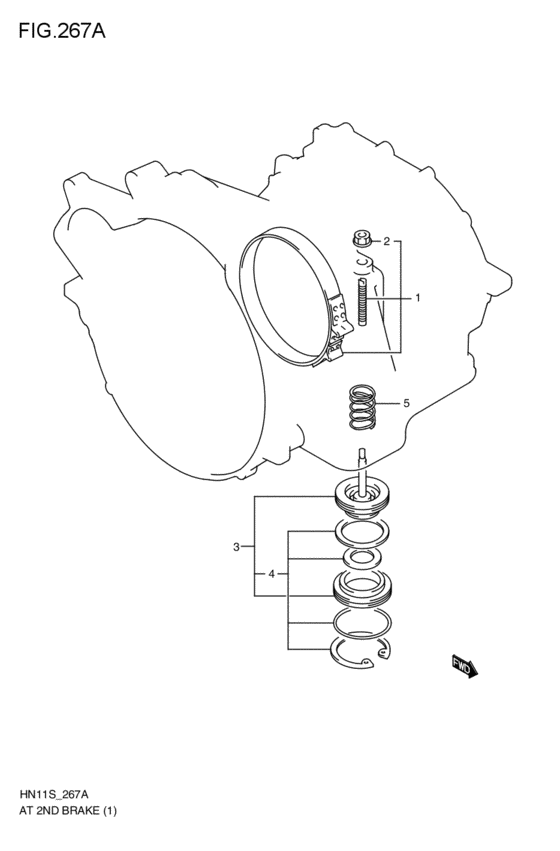

at - second brakes (3AT; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 3AT
- air bag
- AB-N
- abs
- ABS-N
- splr
- SPLR-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26700-61DT0-000 BAND SET,2ND BRAKE3AT; 1998-09-01~1999-11-01 |
26700-61DT0-000 |
US $158.61 |
||
|
2
|
2
08316-10083-000
Nut
3AT; 1998-09-01~1999-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1008B-000 NUT3AT; 1998-09-01~1999-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
3
|
3
26740-56ET0-000
ピストンセット,セカンドブレーキ
3AT:4V; 1998-09-01~1999-04-01 |
26740-56ET0-000 |
— | ||
| replacement | |||||
|
3
|
3
26740-56ET1-000 PISTON SET,2ND BRAKE3AT:4V; 1998-09-01~1999-04-01 |
26740-56ET1-000 |
US $107.82 |
||
|
4
|
4
26741-56ET0-000
SEAL RING SET,2ND
3AT:4V; 1998-09-01~1999-04-01 |
26741-56ET0-000 |
— | ||
|
5
|
5
26761-56E00-000 SPRING,2ND BRAKE PSTN RETURN3AT:4V; 1998-09-01~1999-04-01 |
26761-56E00-000 |
US $4.67 |
||
