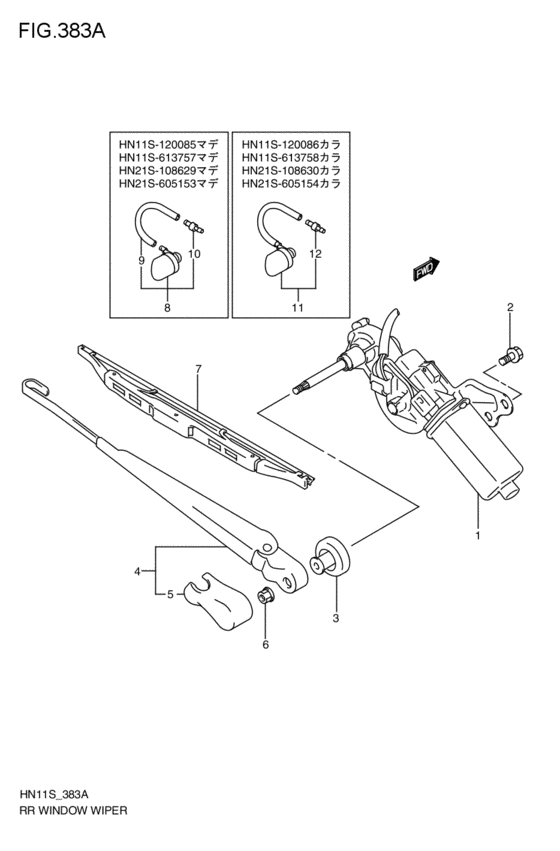

rear wind windshield wiper (G,X,S; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- number of the gears
- 5MT
- air bag
- AB-N
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-74G00-000
Wiper assy, rear window
G,X,S; 1998-09-01~1999-11-01 |
38810-74G00-000 |
— | ||
| replacement | |||||
|
1
|
1
38810-74G02-000 WIPER ASSY,RR WINDOWG,X,S; 1998-09-01~1999-11-01 |
38810-74G02-000 |
US $264.96 |
||
|
2
|
2
02162-06123-000
Bolt (6x12)
G,X,S; 1998-09-01~1999-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt G,X,S; 1998-09-01~1999-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket G,X,S; 1998-09-01~1999-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
38274-81A00-000 CAP,WIPER PIVOTG,X,S; 1998-09-01~1999-11-01 |
38274-81A00-000 |
from US $3.67 |
||
|
4
|
4
38821-74G00-000 ARM ASSY,RR WIPERG,X,S; 1998-09-01~1999-11-01 |
38821-74G00-000 |
US $41.95 |
||
|
5
|
5
38315-63G00-000 COVER,RR WIPER HEADG,X,S; 1998-09-01~1999-11-01 |
38315-63G00-000 |
US $4.86 |
||
|
6
|
6
08316-10063-000
Nut
G,X,S; 1998-09-01~1999-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTG,X,S; 1998-09-01~1999-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
38340-74G00-000 BLADE ASSY,WIPERG,X,S; 1998-09-01~1999-11-01 |
38340-74G00-000 |
US $14.61 |
||
|
8
|
8
38840-76G00-000 NOZZLE ASSY,RR WASHERG,X,S; 1998-09-01~1999-06-01 |
38840-76G00-000 |
US $12.44 |
||
|
9
|
9
38491-60B40-000
ホース,ウォッシャ,L:730
L:730>130; G,X,S; 1998-09-01~1999-06-01 |
38491-60B40-000 |
— | ||
| replacement | |||||
|
9
|
9
38459-50J00-000 HOSE,WASHER L:810L:730>130; G,X,S; 1998-09-01~1999-06-01 |
38459-50J00-000 |
US $14.40 |
||
|
10
|
10
38496-61A00-000 VALVE,CHECKG,X,S; 1998-09-01~1999-06-01 |
38496-61A00-000 |
from US $1.71 |
||
|
11
|
11
38840-70B10-000
Nozzle assy, rear washer
G,X,S; 1999-06-01~1999-11-01 |
38840-70B10-000 |
— | ||
| replacement | |||||
|
11
|
11
38840-70B11-000 NOZZLE ASSY,RR WASHERG,X,S; 1999-06-01~1999-11-01 |
38840-70B11-000 |
US $11.19 |
||
|
12
|
12
38496-61A00-000 VALVE,CHECKG,X,S; 1999-06-01~1999-11-01 |
38496-61A00-000 |
from US $1.71 |
||
