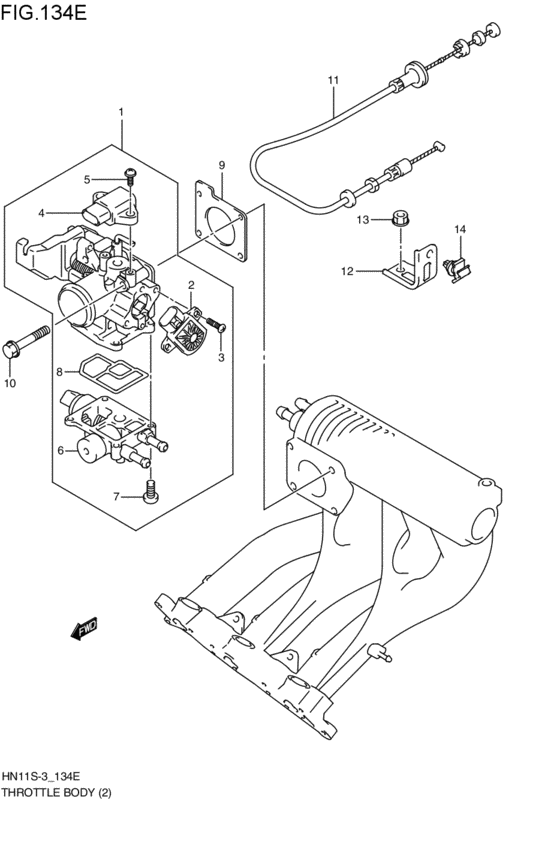

throttle body (K6A:4V; 2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- E
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-78G00-000
ボディアッシ,スロットル
K6A:4V; 2000-10-01~2001-05-01 |
13400-78G00-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-78G01-000 BODY ASSY,THROTTLEK6A:4V; 2000-10-01~2001-05-01 |
13400-78G01-000 |
US $802.56 |
||
|
2
|
2
13420-77G00-000
Sensor, throttle position
K6A:4V; 2000-10-01~2001-05-01 |
13420-77G00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-77G01-000 SENSOR,THROTTLE POSITIONK6A:4V; 2000-10-01~2001-05-01 |
13420-77G01-000 |
US $231.84 |
||
|
3
|
3
13428-77G10-000
Screw
K6A:4V; 2000-10-01~2001-05-01 |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X12K6A:4V; 2000-10-01~2001-05-01 |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18590-72F21-000
SENSOR,PRESSURE
K6A:4V; 2000-10-01~2001-05-01 |
18590-72F21-000 |
— | ||
| replacement | |||||
|
4
|
4
18590-68H00-000 SENSOR,PRESSURESensor, pressure K6A:4V; 2000-10-01~2001-05-01 |
18590-68H00-000 |
from US $196.49 |
||
|
5
|
5
13601-05148-000 SCREW(5X14)K6A:4V; 2000-10-01~2001-05-01 |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
5
|
5
13601-05148-XC0 SCREW(5X14)K6A:4V; 2000-10-01~2001-05-01 |
13601-05148-XC0 |
from US $1.98 |
||
|
6
|
6
18117-78G00-000
バルブ,アイドルスピードコントロール
K6A:4V; 2000-10-01~2001-05-01 |
18117-78G00-000 |
— | ||
| replacement | |||||
|
6
|
6
18117-78G01-000 VALVE,ISCK6A:4V; 2000-10-01~2001-05-01 |
18117-78G01-000 |
US $356.96 |
||
|
7
|
7
13601-05148-000 SCREW(5X14)K6A:4V; 2000-10-01~2001-05-01 |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
7
|
7
13601-05148-XC0 SCREW(5X14)K6A:4V; 2000-10-01~2001-05-01 |
13601-05148-XC0 |
from US $1.98 |
||
|
8
|
8
14139-77G10-000 GASKET,ISC VALVEK6A:4V; 2000-10-01~2001-05-01 |
14139-77G10-000 |
from US $2.88 |
||
|
9
|
9
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body K6A:4V; 2000-10-01~2001-05-01 |
13421-77G00-000 |
from US $2.24 |
||
|
10
|
10
01550-06503-000
Bolt
K6A:4V; 2000-10-01~2001-05-01 |
01550-06503-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0650B-000 BoltK6A:4V; 2000-10-01~2001-05-01 |
01550-0650B-000 |
US $15.50 |
||
|
10
|
10
01550-0650A-000 BOLTBolt (6x50) K6A:4V; 2000-10-01~2001-05-01 |
01550-0650A-000 |
from US $0.96 |
||
|
11
|
11
15910-77G00-000 CABLE ASSY,ACCELK6A:4V; 2000-10-01~2001-05-01 |
15910-77G00-000 |
US $41.95 |
||
|
12
|
12
15918-76G00-000 BRACKET,ACCEL CABLEK6A:4V; 2000-10-01~2001-05-01 |
15918-76G00-000 |
US $3.75 |
||
|
13
|
13
08316-10063-000
Nut
K6A:4V; 2000-10-01~2001-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTK6A:4V; 2000-10-01~2001-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
09403-05311-000 CLAMPK6A:4V; 2000-10-01~2001-05-01 |
09403-05311-000 |
US $14.40 |
||
