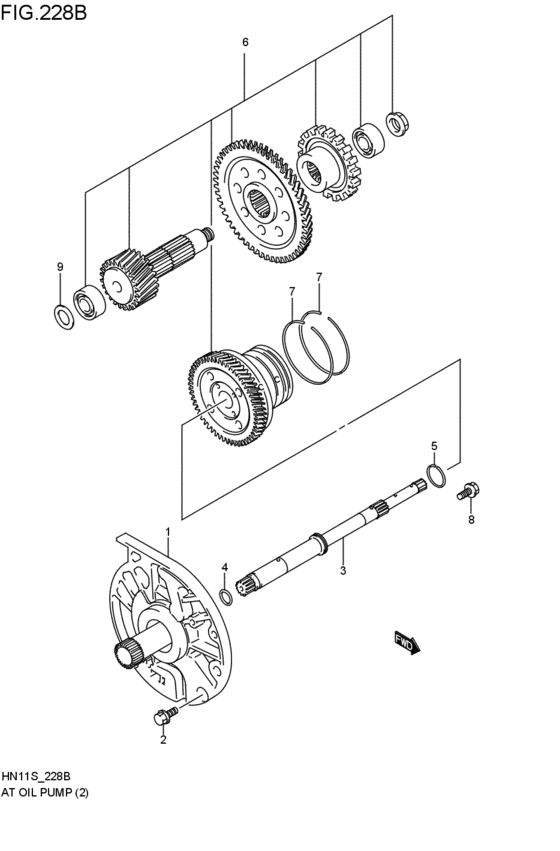

at - oil pump (4AT; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22800-78G10-000
Pump assy, oil
4AT; 1998-09-01~1999-11-01 |
22800-78G10-000 |
— | ||
| replacement | |||||
|
1
|
1
22800-78G11-000 PUMP ASSY,OIL4AT; 1998-09-01~1999-11-01 |
22800-78G11-000 |
US $939.12 |
||
|
2
|
2
22863-61D00-000
Bolt, oil pump no.1
4AT; 1998-09-01~1999-11-01 |
22863-61D00-000 |
— | ||
| replacement | |||||
|
2
|
2
22863-78G30-000 BOLT,OIL PUMP4AT; 1998-09-01~1999-11-01 |
22863-78G30-000 |
US $2.61 |
||
|
3
|
3
24111-78G10-000
SHAFT,INPUT
4AT; 1998-09-01~1999-11-01 |
24111-78G10-000 |
— | ||
|
4
|
4
24112-78G10-000 O-RING,INPUT SHAFT4AT; 1998-09-01~1999-11-01 |
24112-78G10-000 |
US $4.12 |
||
|
5
|
5
26682-56E00-000 RING,INPUT SHAFT SEAL4AT; 1998-09-01~1999-11-01 |
26682-56E00-000 |
US $6.81 |
||
|
6
|
6
24120-78GW0-000
Gear set, reduction
4AT:K6A; 1998-09-01~1999-11-01 |
24120-78GW0-000 |
— | ||
|
7
|
7
24127-78G10-000 RING,LOW CLUTCH SEAL4AT; 1998-09-01~1999-11-01 |
24127-78G10-000 |
US $12.44 |
||
|
8
|
8
24128-78G10-000 BOLT,DRUM SUPPORT TO CASE4AT; 1998-09-01~1999-11-01 |
24128-78G10-000 |
US $3.72 |
||
|
9
|
9
24160-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24160-78G10-000 |
US $6.73 |
||
|
9
|
9
24161-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24161-78G10-000 |
US $6.73 |
||
|
9
|
9
24162-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24162-78G10-000 |
US $6.73 |
||
|
9
|
9
24163-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24163-78G10-000 |
US $6.73 |
||
|
9
|
9
24164-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24164-78G10-000 |
US $6.73 |
||
|
9
|
9
24165-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24165-78G10-000 |
US $6.73 |
||
|
9
|
9
24166-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24166-78G10-000 |
US $6.73 |
||
|
9
|
9
24167-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24167-78G10-000 |
US $6.73 |
||
|
9
|
9
24168-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24168-78G10-000 |
US $6.73 |
||
|
9
|
9
24169-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24169-78G10-000 |
US $6.73 |
||
|
9
|
9
24170-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24170-78G10-000 |
US $8.10 |
||
|
9
|
9
24171-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24171-78G10-000 |
US $8.10 |
||
|
9
|
9
24172-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24172-78G10-000 |
US $8.10 |
||
|
9
|
9
24173-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24173-78G10-000 |
US $8.10 |
||
|
9
|
9
24174-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24174-78G10-000 |
US $8.10 |
||
|
9
|
9
24175-78G10-000 SHIM,COUNTERSHAFT BRG4AT; 1998-09-01~1999-11-01 |
24175-78G10-000 |
US $8.10 |
||
