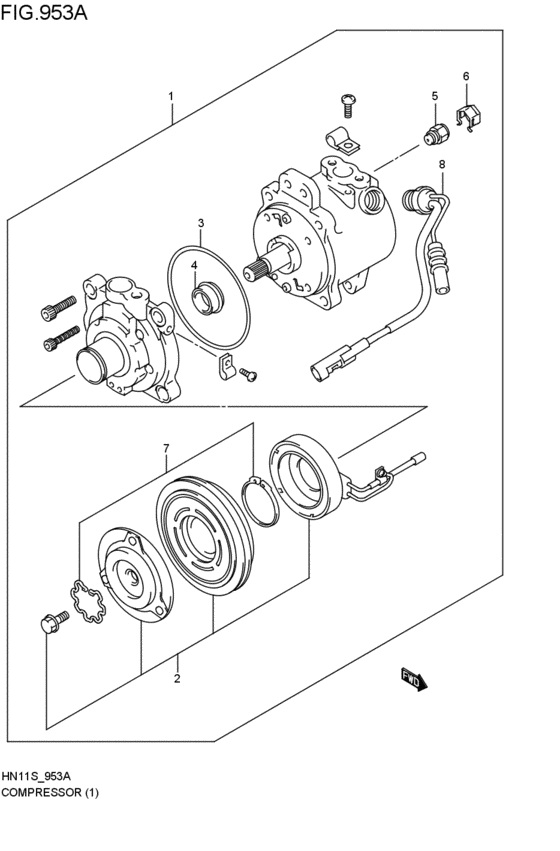

compressor (DENSO; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-76G00-000
Compressor assy
DENSO; 1998-09-01~1999-11-01 |
95200-76G00-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-76G03-000
COMPRESSOR ASSY
DENSO; 1998-09-01~1999-11-01 |
95200-76G03-000 |
— | ||
|
2
|
2
95210-76G00-000
CLUTCH,MAGNET
DENSO; 1998-09-01~1999-11-01 |
95210-76G00-000 |
— | ||
|
3
|
3
95237-71B10-000 O-RINGDENSO; 1998-09-01~1999-11-01 |
95237-71B10-000 |
US $10.56 |
||
|
4
|
4
95261-71B10-000
SEAL,SHAFT
DENSO; 1998-09-01~1999-11-01 |
95261-71B10-000 |
— | ||
|
5
|
5
95270-76G00-000 VALVE,SAFETYDENSO; 1998-09-01~1999-11-01 |
95270-76G00-000 |
US $78.02 |
||
|
6
|
6
95279-76G00-000 CAPDENSO; 1998-09-01~1999-11-01 |
95279-76G00-000 |
US $4.05 |
||
|
7
|
7
95298-71B10-000 CLIP KITDENSO; 1998-09-01~1999-11-01 |
95298-71B10-000 |
US $8.06 |
||
|
8
|
8
95527-76G00-000 SENSOR,COMPRESSORDENSO; 1998-09-01~1999-11-01 |
95527-76G00-000 |
US $82.43 |
||
