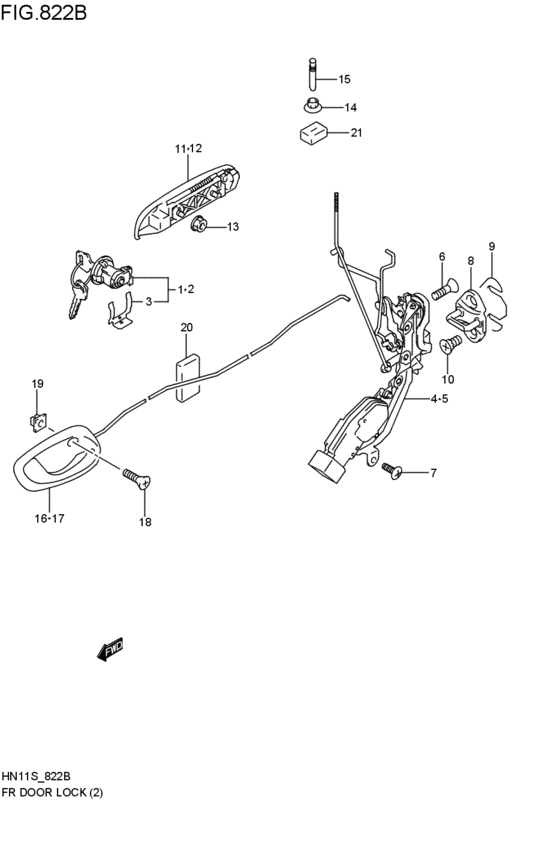

front door lock (5DR; 1999-03-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82270-76810-000 CYLINDER,FR DR LOCK,R5DR; 1999-03-01~1999-11-01 |
82270-76810-000 |
from US $45.63 |
||
|
2
|
2
82280-76810-000 CYLINDER,FR DR LOCK,L5DR; 1999-03-01~1999-11-01 |
82280-76810-000 |
US $45.63 |
||
|
3
|
3
82291-81A00-000 RETAINER,FR DR CYLINDER5DR; 1999-03-01~1999-11-01 |
82291-81A00-000 |
US $2.98 |
||
|
4
|
4
82201-75G30-000
ラッチアッシ,フロントドア,ライト
5DR; 1999-03-01~1999-11-01 |
82201-75G30-000 |
— | ||
| replacement | |||||
|
4
|
4
82201-75G31-000 LATCH ASSY,FR DR,R5DR; 1999-03-01~1999-11-01 |
82201-75G31-000 |
US $235.52 |
||
|
5
|
5
82202-75G30-000
ラッチアッシ,フロントドア,レフト
5DR; 1999-03-01~1999-11-01 |
82202-75G30-000 |
— | ||
| replacement | |||||
|
5
|
5
82202-75G31-000 LATCH ASSY,FR DR,L5DR; 1999-03-01~1999-11-01 |
82202-75G31-000 |
US $235.52 |
||
|
6
|
6
09137-06025-000 SCREW(6X16)5DR; 1999-03-01~1999-11-01 |
09137-06025-000 |
US $14.40 |
||
|
7
|
7
02142-06103-000
Screw
5DR; 1999-03-01~1999-11-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0610B-000 SCREWStopper, cl rlse cam shaft 5DR; 1999-03-01~1999-11-01 |
02142-0610B-000 |
from US $0.76 |
||
|
7
|
7
02142-0610A-000 SCREW5DR; 1999-03-01~1999-11-01 |
02142-0610A-000 |
from US $0.80 |
||
|
8
|
8
82610-60D00-000 STRIKER,DOOR LATCH5DR; 1999-03-01~1999-11-01 |
82610-60D00-000 |
US $12.51 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER5DR; 1999-03-01~1999-11-01 |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
09137-08011-000 SCREW(8X18)5DR; 1999-03-01~1999-11-01 |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
82801-81A01-Z2S
Handle, door out rh (silver)
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-Z2S |
— | ||
| replacements | |||||
|
11
|
11
82801-81A51-Z2S
HANDLE,SIDE DR OUT,R
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A51-Z2S |
— | ||
|
11
|
11
82801-81A52-Z2S
HANDLE,SIDE DR OUT,R
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A52-Z2S |
— | ||
|
11
|
11
82801-81A53-Z2S Handle Assy,fr Dr Out,rシルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A53-Z2S |
US $48.94 |
||
|
11
|
11
82801-81A01-Z2Z
Handle, door out rh (gold)
ゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-Z2Z |
— | ||
| replacement | |||||
|
11
|
11
82801-81A50-Z2Z HANDLE,SIDE DR OUT,Rゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A50-Z2Z |
US $54.83 |
||
|
11
|
11
82801-81A01-Z4A
ハンドルアッシ,ドアアウト,ライト(ブルー)
ブル-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-Z4A |
— | ||
| replacement | |||||
|
11
|
11
82801-81A50-Z4A
ハンドルアッシ,ドアアウト,ライト(ブラック)
ブル-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A50-Z4A |
— | ||
|
11
|
11
82801-81A01-Z5K
Handle, door out rh (red)
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-Z5K |
— | ||
| replacements | |||||
|
11
|
11
82801-81A50-Z5K
HANDLE,SIDE DR OUT,R
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A50-Z5K |
— | ||
|
11
|
11
82801-81A52-Z5K
HANDLE,SIDE DR OUT,R
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A52-Z5K |
— | ||
|
11
|
11
82801-81A01-0DG
Handle, door out rh (black)
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-0DG |
— | ||
| replacements | |||||
|
11
|
11
82801-81A50-0DG
HANDLE,SIDE DR OUT,R
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A50-0DG |
— | ||
|
11
|
11
82801-81A51-0DG
HANDLE,SIDE DR OUT,R
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A51-0DG |
— | ||
|
11
|
11
82801-81A52-0DG
HANDLE,SIDE DR OUT,R
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A52-0DG |
— | ||
|
11
|
11
82801-81A53-0DG Handle Assy,fr Dr Out,rブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A53-0DG |
US $54.10 |
||
|
11
|
11
82801-81A01-26U
Handle, door out rh (white)
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A01-26U |
— | ||
| replacements | |||||
|
11
|
11
82801-81A51-26U
HANDLE,SIDE DR OUT,R
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A51-26U |
— | ||
|
11
|
11
82801-81A52-26U
HANDLE,SIDE DR OUT,R
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A52-26U |
— | ||
|
11
|
11
82801-81A53-26U Handle Assy,fr Dr Out,rホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82801-81A53-26U |
from US $24.19 |
||
|
12
|
12
82802-81A01-Z5K
Handle, door out lh (red)
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-Z5K |
— | ||
| replacements | |||||
|
12
|
12
82802-81A51-Z5K
HANDLE,SIDE DR OUT,L
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A51-Z5K |
— | ||
|
12
|
12
82802-81A52-Z5K
HANDLE,SIDE DR OUT,L
レッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A52-Z5K |
— | ||
|
12
|
12
82802-81A53-799 Handle Assy,fr Dr Out,lレッド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A53-799 |
US $81.60 |
||
|
12
|
12
82802-81A01-0DG
Handle, door out lh (black)
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-0DG |
— | ||
| replacements | |||||
|
12
|
12
82802-81A50-0DG
HANDLE,SIDE DR OUT,L
ブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A50-0DG |
— | ||
|
12
|
12
82802-81A52-0DG HANDLE,SIDE DR OUT,Lブラック; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A52-0DG |
US $54.10 |
||
|
12
|
12
82802-81A01-26U
Handle, door out lh (white)
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-26U |
— | ||
| replacements | |||||
|
12
|
12
82802-81A51-26U
HANDLE,SIDE DR OUT,L
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A51-26U |
— | ||
|
12
|
12
82802-81A52-26U
HANDLE,SIDE DR OUT,L
ホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A52-26U |
— | ||
|
12
|
12
82802-81A53-26U Handle Assy,fr Dr Out,lホワイト; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A53-26U |
from US $25.09 |
||
|
12
|
12
82802-81A01-Z2S
Handle, door out lh (silver)
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-Z2S |
— | ||
| replacements | |||||
|
12
|
12
82802-81A51-Z2S
HANDLE,SIDE DR OUT,L
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A51-Z2S |
— | ||
|
12
|
12
82802-81A52-Z2S
HANDLE,SIDE DR OUT,L
シルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A52-Z2S |
— | ||
|
12
|
12
82802-81A53-Z2S Handle Assy,fr Dr Out,lシルバ-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A53-Z2S |
US $48.94 |
||
|
12
|
12
82802-81A01-Z2Z
Handle, door out lh (gold)
ゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-Z2Z |
— | ||
| replacements | |||||
|
12
|
12
82802-81A50-Z2Z
HANDLE,SIDE DR OUT,L
ゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A50-Z2Z |
— | ||
|
12
|
12
82802-81A03-5PK
HANDLE ASSY,FR DR OUT,L
ゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A03-5PK |
— | ||
|
12
|
12
82802-81A04-5PK Handle Assy,fr Dr Out,l(Black)ゴールド; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A04-5PK |
from US $11.72 |
||
|
12
|
12
82802-81A01-Z4A
ハンドルアッシ,ドアアウト,レフト(ブルー)
ブル-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A01-Z4A |
— | ||
| replacements | |||||
|
12
|
12
82802-81A50-Z4A
ハンドルアッシ,ドアアウト,レフト(ブラック)
ブル-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A50-Z4A |
— | ||
|
12
|
12
82802-81A04-5PK Handle Assy,fr Dr Out,l(Black)ブル-; 5DR:(X,S); 1999-03-01~1999-11-01 |
82802-81A04-5PK |
from US $11.72 |
||
|
13
|
13
08316-10063-000
Nut
5DR; 1999-03-01~1999-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUT5DR; 1999-03-01~1999-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
82991-76G00-T01 CAP,DR INSIDE LOCK KNOBCap, door inside lock knob (gray) グレ-; 5DR; 1999-03-01~1999-11-01 |
82991-76G00-T01 |
US $2.50 |
||
|
15
|
15
82982-65D00-T01 KNOB,SIDE DR INS LOCKKnob, inside lock (gray) グレ-; 5DR; 1999-03-01~1999-11-01 |
82982-65D00-T01 |
from US $2.24 |
||
|
16
|
16
83101-75G00-T01
HANDLE,FR DR INSIDE,R(GRAY)
グレ-; 5DR; 1999-03-01~1999-11-01 |
83101-75G00-T01 |
— | ||
| replacement | |||||
|
16
|
16
83101-75G01-T01 HANDLE,FR DR INSIDE,Rグレ-; 5DR; 1999-03-01~1999-11-01 |
83101-75G01-T01 |
US $28.70 |
||
|
17
|
17
83102-75G00-T01
HANDLE,FR DR INSIDE,L(GRAY)
グレ-; 5DR; 1999-03-01~1999-11-01 |
83102-75G00-T01 |
— | ||
| replacement | |||||
|
17
|
17
83102-75G01-T01 HANDLE,FR DR INSIDE,Lグレ-; 5DR; 1999-03-01~1999-11-01 |
83102-75G01-T01 |
US $28.70 |
||
|
18
|
18
03521-05163-000
Screw
5DR; 1999-03-01~1999-11-01 |
03521-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03521-0516A-000 SCREW5DR; 1999-03-01~1999-11-01 |
03521-0516A-000 |
US $7.70 |
||
|
19
|
19
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE5DR; 1999-03-01~1999-11-01 |
83119-60B00-000 |
US $1.77 |
||
|
20
|
20
77591-75000-000 PAD5DR; 1999-03-01~1999-11-01 |
77591-75000-000 |
US $2.28 |
||
|
21
|
21
83211-76G00-000 PAD SIDE DOOR INSIDE LOCK5DR; 1999-03-01~1999-11-01 |
83211-76G00-000 |
US $1.88 |
||
