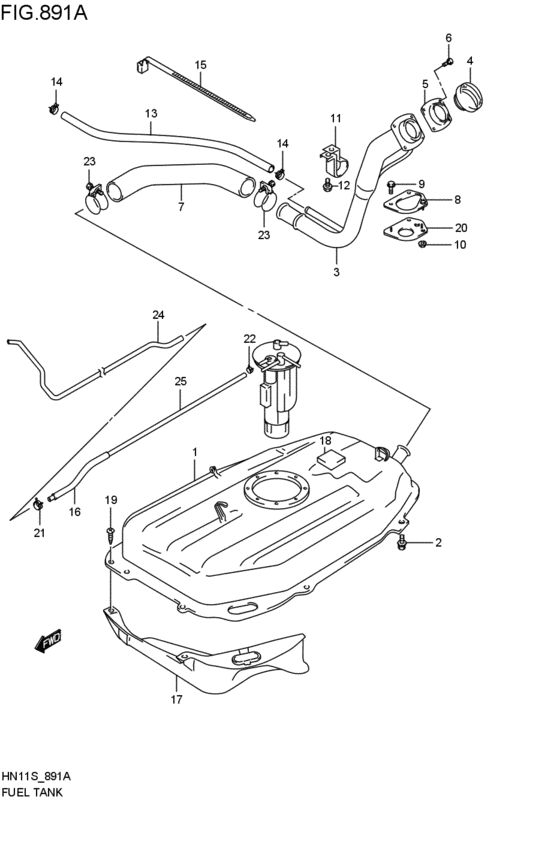

fuel tank (1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-76G10-000
Tank assy, fuel
1998-09-01~1999-11-01 |
89101-76G10-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-76G12-000 TANK ASSY,FUEL1998-09-01~1999-11-01 |
89101-76G12-000 |
US $390.08 |
||
|
2
|
2
09118-08160-000
Bolt (8x25)
1998-09-01~1999-11-01 |
09118-08160-000 |
— | ||
| replacement | |||||
|
2
|
2
09118-08161-000 BOLT(8X25)1998-09-01~1999-11-01 |
09118-08161-000 |
US $1.76 |
||
|
3
|
3
89210-76G00-000
ネック,フューエルフィラ
1998-09-01~1999-11-01 |
89210-76G00-000 |
— | ||
| replacement | |||||
|
3
|
3
89210-76G02-000 NECK,FUEL FILLER1998-09-01~1999-11-01 |
89210-76G02-000 |
US $78.02 |
||
|
4
|
4
89260-70G01-000
Cap assy, fuel filler
1998-09-01~1999-11-01 |
89260-70G01-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-73H00-000 CAP ASSY,FUEL FILLER1998-09-01~1999-11-01 |
89260-73H00-000 |
from US $19.82 |
||
|
5
|
5
89285-75F00-000 PACKING,FUEL FILLER1998-09-01~1999-11-01 |
89285-75F00-000 |
US $5.17 |
||
|
6
|
6
02162-05123-000
Screw
1998-09-01~1999-11-01 |
02162-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0512A-000 SCREW1998-09-01~1999-11-01 |
02162-0512A-000 |
from US $0.80 |
||
|
7
|
7
89241-75F00-000 HOSE,FUEL TANK FILLER1998-09-01~1999-11-01 |
89241-75F00-000 |
US $35.33 |
||
|
8
|
8
89291-75F00-000 BRACKET,FUEL FILLER1998-09-01~1999-11-01 |
89291-75F00-000 |
US $25.60 |
||
|
9
|
9
02162-06163-000
Screw
1998-09-01~1999-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 1998-09-01~1999-11-01 |
02162-0616B-000 |
from US $0.80 |
||
|
10
|
10
08316-10063-000
Nut
1998-09-01~1999-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT1998-09-01~1999-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
89280-75F00-000
Clamp, fuel filler neck
1998-09-01~1999-11-01 |
89280-75F00-000 |
— | ||
| replacement | |||||
|
11
|
11
89280-75F0V-000 CLAMP,FUEL FILLER NECK1998-09-01~1999-11-01 |
89280-75F0V-000 |
US $19.20 |
||
|
12
|
12
09118-06106-000 BOLT(6X16)1998-09-01~1999-11-01 |
09118-06106-000 |
from US $1.15 |
||
|
13
|
13
09355-11165-00B HOSE(11X16X2000)L:2000>720; 1998-09-01~1999-11-01 |
09355-11165-00B |
US $27.60 |
||
|
14
|
14
09401-14404-000 CLIP1998-09-01~1999-11-01 |
09401-14404-000 |
from US $3.59 |
||
|
15
|
15
09407-19401-000 CLAMP(L:190)1998-09-01~1999-11-01 |
09407-19401-000 |
from US $4.17 |
||
|
16
|
16
89489-76G00-000
Protector, valve outlet hose
1998-09-01~1999-11-01 |
89489-76G00-000 |
— | ||
| replacement | |||||
|
16
|
16
89489-63B00-000 PROTECTOR,VALVE OUTLET HOSE1998-09-01~1999-11-01 |
89489-63B00-000 |
US $6.18 |
||
|
17
|
17
89191-76G00-000
Cover, fuel tank lower
1998-09-01~1999-11-01 |
89191-76G00-000 |
— | ||
| replacement | |||||
|
17
|
17
89191-76G01-000 COVER,FUEL TANK,LOWER1998-09-01~1999-11-01 |
89191-76G01-000 |
US $27.42 |
||
|
18
|
18
89521-60B01-000 PAD,FUEL TANK1998-09-01~1999-11-01 |
89521-60B01-000 |
US $8.98 |
||
|
19
|
19
03542-06163-000
Screw
1998-09-01~1999-11-01 |
03542-06163-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0616A-000 SCREW1998-09-01~1999-11-01 |
03541-0616A-000 |
from US $0.64 |
||
|
20
|
20
89282-75F00-000
Seal, fuel filler neck
1998-09-01~1999-11-01 |
89282-75F00-000 |
— | ||
| replacement | |||||
|
20
|
20
89282-75F10-000 SEAL,FUEL FILLER NECK1998-09-01~1999-11-01 |
89282-75F10-000 |
US $13.28 |
||
|
21
|
21
09401-11413-000 CLIP1998-09-01~1999-11-01 |
09401-11413-000 |
from US $0.96 |
||
|
22
|
22
09401-12404-000 CLIPClip 1998-09-01~1999-11-01 |
09401-12404-000 |
from US $1.52 |
||
|
23
|
23
09400-45311-000 CLAMP1998-09-01~1999-11-01 |
09400-45311-000 |
US $1.92 |
||
|
24
|
24
89483-76G00-000 PIPE,FUEL EVAP1998-09-01~1999-11-01 |
89483-76G00-000 |
US $24.84 |
||
|
25
|
25
09359-54112-760 HOSE(5.4X11.4X760)Hose, fuel (pump to carb) (5.4x11.4x760) L:760>540; 1998-09-01~1999-11-01 |
09359-54112-760 |
US $17.50 |
||
