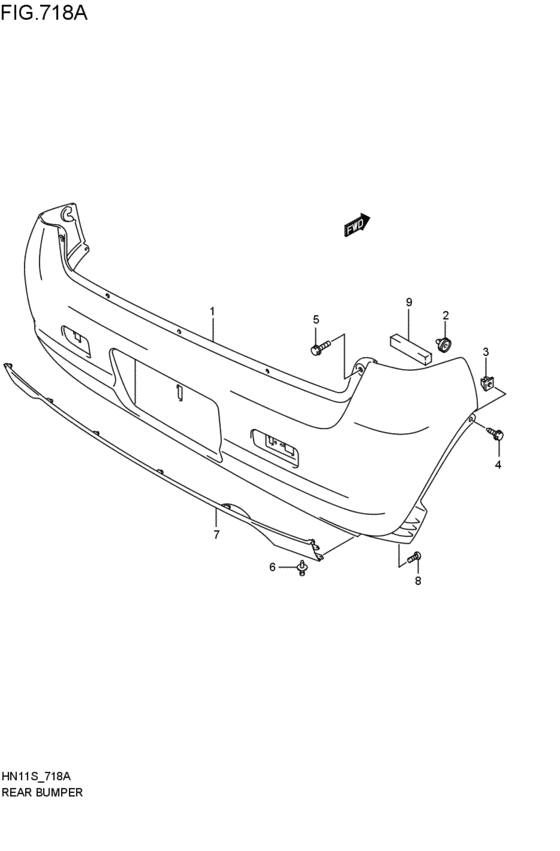

rear bumper (1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-74G00-Z2S
バンパ,リヤ(シルバー)
シルバー; C,G,X,S; 1998-09-01~1999-11-01 |
71811-74G00-Z2S |
— | ||
|
1
|
1
71811-74G00-26U
バンパ,リヤ(ホワイト)
ホワイト; G,X,S; 1998-09-01~1999-11-01 |
71811-74G00-26U |
— | ||
| replacement | |||||
|
1
|
1
71811-74G00-799 BUMPER,RR(PRIMARY)ホワイト; G,X,S; 1998-09-01~1999-11-01 |
71811-74G00-799 |
US $464.64 |
||
|
1
|
1
71811-74G00-799 BUMPER,RR(PRIMARY)プライマリ-; C,G,X,S; 1998-09-01~1999-11-01 |
71811-74G00-799 |
US $464.64 |
||
|
2
|
2
71712-74G00-000
Clip, bumper side upper
1998-09-01~1999-11-01 |
71712-74G00-000 |
— | ||
| replacement | |||||
|
2
|
2
71712-82G00-000 CLIP,BUMPER SIDE UPPER1998-09-01~1999-11-01 |
71712-82G00-000 |
US $1.60 |
||
|
3
|
3
09148-06007-000 NUT1998-09-01~1999-11-01 |
09148-06007-000 |
from US $0.88 |
||
|
4
|
4
03242-06163-000
Screw
1998-09-01~1999-11-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0616C-000 SCREW1998-09-01~1999-11-01 |
03241-0616C-000 |
from US $0.76 |
||
|
5
|
5
02162-06163-000
Screw
1998-09-01~1999-11-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust 1998-09-01~1999-11-01 |
02162-0616B-000 |
from US $0.80 |
||
|
6
|
6
09409-08327-000 CLIP1998-09-01~1999-11-01 |
09409-08327-000 |
from US $1.17 |
||
|
7
|
7
71821-74G00-W07 EXTENSION,RR BUMPERブラック; 1998-09-01~1999-11-01 |
71821-74G00-W07 |
US $90.16 |
||
|
8
|
8
03541-05123-000
Screw
1998-09-01~1999-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0512B-000 SCREW1998-09-01~1999-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
9
|
9
71812-74G00-000 PACKING,RR BUMPER1998-10-01~1999-11-01 |
71812-74G00-000 |
US $3.24 |
||
