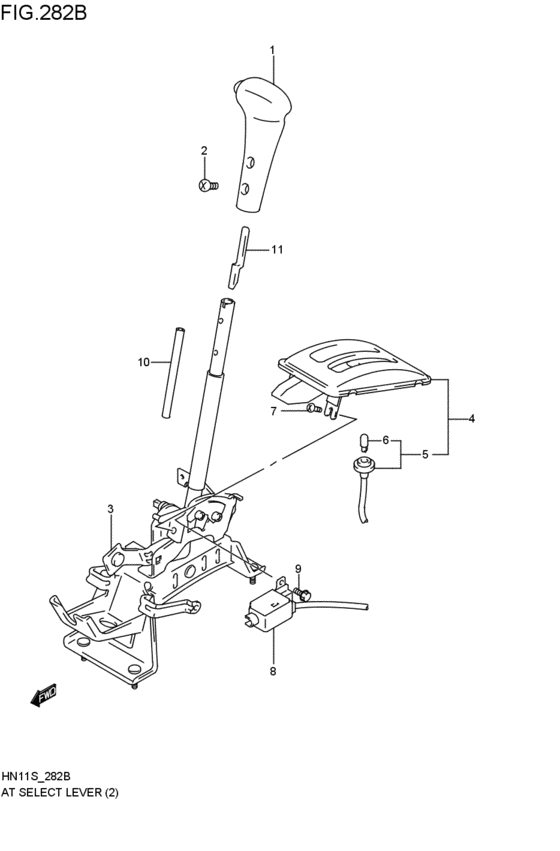

select lever (4AT; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28160-78G10-5PK
Knob assy, sel lever (black)
ブラック; 4AT; 1998-09-01~1999-11-01 |
28160-78G10-5PK |
— | ||
| replacements | |||||
|
1
|
1
28160-78G10-000
KNOB ASSY,SEL LEVER
ブラック; 4AT; 1998-09-01~1999-11-01 |
28160-78G10-000 |
— | ||
|
1
|
1
28160-78G11-000 KNOB ASSY,SEL LEVERブラック; 4AT; 1998-09-01~1999-11-01 |
28160-78G11-000 |
US $68.82 |
||
|
2
|
2
09125-05117-000 SCREW(5X6)Screw (5x6) 4AT; 1998-09-01~1999-11-01 |
09125-05117-000 |
from US $0.96 |
||
|
3
|
3
28110-74G70-000
Lever assy, select
4AT; 1998-09-01~1999-11-01 |
28110-74G70-000 |
— | ||
|
4
|
4
28150-74G70-000
INDICATOR ASSY,SELECT
4AT; 1998-09-01~1999-11-01 |
28150-74G70-000 |
— | ||
|
5
|
5
28159-76G10-000 LAMP ASSY,SEL LEVER ILLUM4AT; 1998-09-01~1999-11-01 |
28159-76G10-000 |
US $16.89 |
||
|
6
|
6
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 4AT; 1998-09-01~1999-11-01 |
09471-12077-000 |
from US $1.52 |
||
|
7
|
7
02142-05103-000
Screw 5x10
4AT; 1998-09-01~1999-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0510B-000 SCREWBolt 4AT; 1998-09-01~1999-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
8
|
8
28610-76G10-000
Solenoid, shift lock
4AT; 1998-09-01~1999-11-01 |
28610-76G10-000 |
— | ||
| replacement | |||||
|
8
|
8
28610-76G30-000 SOLENOID,SHIFT LOCK4AT; 1998-09-01~1999-11-01 |
28610-76G30-000 |
US $62.93 |
||
|
9
|
9
28178-51E30-000
Bolt, solenoid
4AT; 1998-09-01~1999-11-01 |
28178-51E30-000 |
— | ||
| replacement | |||||
|
9
|
9
09118-05006-000 BOLT(5X8)4AT; 1998-09-01~1999-11-01 |
09118-05006-000 |
US $19.90 |
||
|
10
|
10
28118-57B00-000
Tube, over drive harness
4AT; 1998-09-01~1999-11-01 |
28118-57B00-000 |
— | ||
| replacement | |||||
|
10
|
10
28118-64B61-000 TUBE,SWITCH WIRE HARNESS4AT; 1998-09-01~1999-11-01 |
28118-64B61-000 |
US $1.88 |
||
|
11
|
11
28164-76G10-000
Guide, detent release rod
4AT; 1998-09-01~1999-11-01 |
28164-76G10-000 |
— | ||
| replacement | |||||
|
11
|
11
28164-76G11-000 GUIDE,DETENT RELEASE ROD4AT; 1998-09-01~1999-11-01 |
28164-76G11-000 |
US $6.96 |
||
