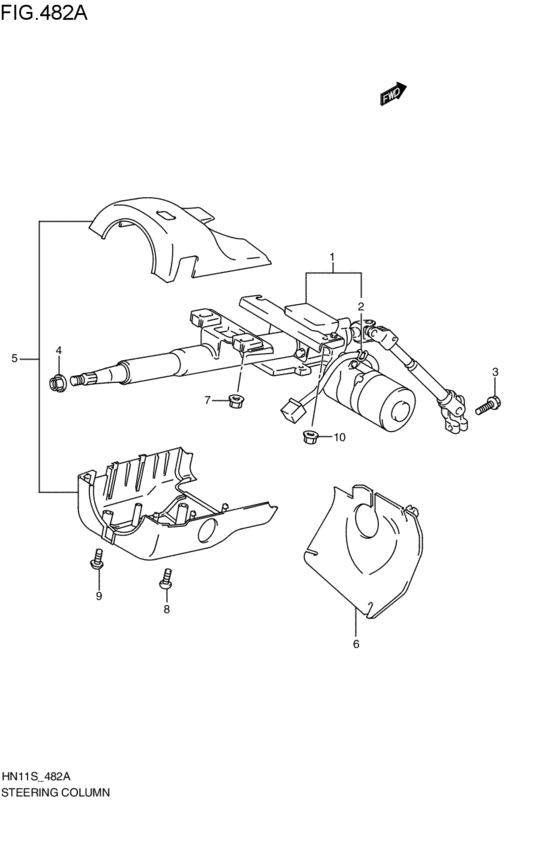

steering column (1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-74G12-000
Column assy, collapsible strg
3DR:(G,X,S),5DR; 1998-09-01~1999-11-01 |
48200-74G12-000 |
— | ||
| replacement | |||||
|
1
|
1
48200-74G13-000
COLUMN ASSY,COLPS STRG
3DR:(G,X,S),5DR; 1998-09-01~1999-11-01 |
48200-74G13-000 |
— | ||
|
2
|
2
09404-08205-000 CLAMP(L:45 T:0.6)Clamp (l:62) 1998-09-01~1999-11-01 |
09404-08205-000 |
from US $1.98 |
||
|
3
|
3
09117-08053-000 BOLT(8X30)1998-09-01~1999-11-01 |
09117-08053-000 |
US $20.20 |
||
|
4
|
4
08316-10123-000
Nut
1998-09-01~1999-11-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1012A-000 NUT1998-09-01~1999-11-01 |
08316-1012A-000 |
from US $0.96 |
||
|
5
|
5
48400-76G00-T01 COVER ASSY,STRG COLUMNグレ-; 1998-09-01~1999-11-01 |
48400-76G00-T01 |
US $47.84 |
||
|
6
|
6
48481-76G00-000 COVER,STRG JOINT1998-09-01~1999-11-01 |
48481-76G00-000 |
US $15.42 |
||
|
7
|
7
09159-08069-000
Nut
1998-09-01~1999-11-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
7
|
7
09159-08135-000 NUT1998-09-01~1999-11-01 |
09159-08135-000 |
from US $0.81 |
||
|
8
|
8
09136-05030-000 SCREW(5X12)1998-09-01~1999-11-01 |
09136-05030-000 |
US $0.96 |
||
|
9
|
9
03211-05123-000
Screw
1998-09-01~1999-11-01 |
03211-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03211-0512A-000 SCREW1998-09-01~1999-11-01 |
03211-0512A-000 |
US $0.80 |
||
|
10
|
10
08316-10083-000
Nut
1998-09-01~1999-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT1998-09-01~1999-11-01 |
08316-1008B-000 |
from US $0.76 |
||
