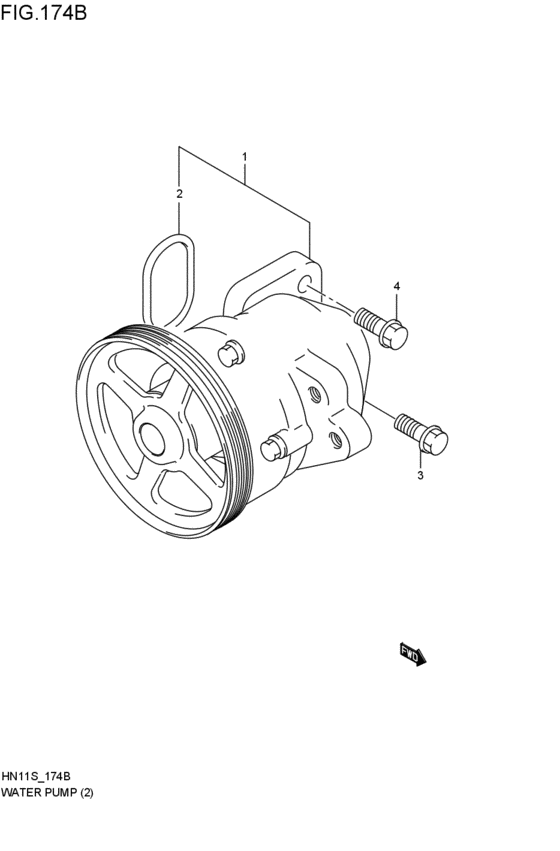

water pump (K6A; 1998-09-01~1999-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- number of the gears
- 4AT
- air bag
- AB
- abs
- ABS
- splr
- SPLR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-78850-000
Pump set, water
K6A; 1998-09-01~1999-11-01 |
17400-78850-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-78854-000
PUMP SET,WATER
K6A; 1998-09-01~1999-11-01 |
17400-78854-000 |
— | ||
|
2
|
2
17611-73G00-000
O ring
K6A; 1998-09-01~1999-11-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMPK6A; 1998-09-01~1999-11-01 |
17611-73G03-000 |
US $4.95 |
||
|
3
|
3
09103-08350-000
Bolt (8x40)
K6A; 1998-09-01~1999-11-01 |
09103-08350-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0840B-000 BoltK6A; 1998-09-01~1999-11-01 |
01550-0840B-000 |
from US $1.12 |
||
|
4
|
4
01550-08303-000
Bolt
K6A; 1998-09-01~1999-11-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltK6A; 1998-09-01~1999-11-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover K6A; 1998-09-01~1999-11-01 |
01550-0830A-000 |
from US $1.06 |
||
