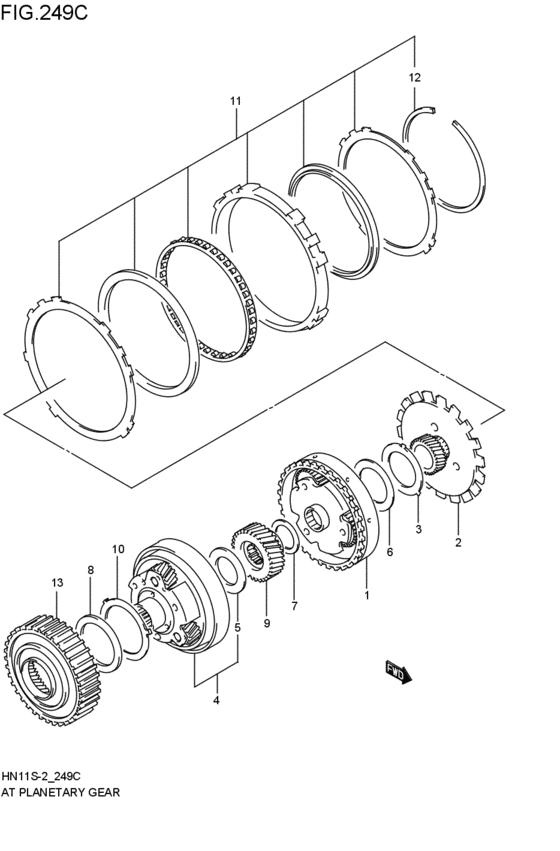

at - plastic material re-gear (AT; 1999-10-01~2000-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24910-78FH0-000
キャリアアッシ,フロントプラネタリ
>24900-79840; AT:K6A; 1999-10-01~2000-11-01 |
24910-78FH0-000 |
— | ||
|
2
|
2
24930-78G30-000 GEAR ASSY,FR PLNTY SUNAT; 1999-10-01~2000-11-01 |
24930-78G30-000 |
US $252.08 |
||
|
3
|
3
24934-78G10-000 RACE,SHELL CONNECT FRONTAT; 1999-10-01~2000-11-01 |
24934-78G10-000 |
US $8.46 |
||
|
4
|
4
24940-78FH0-000
キャリアアッシ,リヤプラネタリ
マドグチヘ オトイアワセクダサイ; AT:K6A; 1999-10-01~2000-11-01 |
24940-78FH0-000 |
— | ||
|
5
|
5
24947-78G10-000 BEARING ASSYAT; 1999-10-01~2000-11-01 |
24947-78G10-000 |
US $35.88 |
||
|
6
|
6
24942-78G30-000 BEARING,SHELL CONNECT RR THRAT; 1999-10-01~2000-11-01 |
24942-78G30-000 |
US $18.40 |
||
|
7
|
7
24943-78G10-000 BEARING,RR PLNTY SUN THRAT; 1999-10-01~2000-11-01 |
24943-78G10-000 |
US $28.52 |
||
|
8
|
8
24944-78G10-000 BEARING,RR PLNTY THRAT; 1999-10-01~2000-11-01 |
24944-78G10-000 |
US $22.26 |
||
|
9
|
9
24971-78G10-000
Gear, rr planetary sun
AT:K6A; 1999-10-01~2000-11-01 |
24971-78G10-000 |
— | ||
| replacement | |||||
|
9
|
9
24971-78G30-000 GEAR,RR PLNTY SUNAT:K6A; 1999-10-01~2000-11-01 |
24971-78G30-000 |
US $127.33 |
||
|
10
|
10
24154-78G10-000 RACE,CARRIER BRGAT; 1999-10-01~2000-11-01 |
24154-78G10-000 |
US $8.46 |
||
|
11
|
11
26691-78GT0-000
Clutch set, low one way
AT; 1999-10-01~2000-11-01 |
26691-78GT0-000 |
— | ||
| replacement | |||||
|
11
|
11
26691-78GV0-000 CLUTCH SET,LOW ONE WAYAT; 1999-10-01~2000-11-01 |
26691-78GV0-000 |
US $362.48 |
||
|
12
|
12
26692-78G10-000 RING,LOW ONE WAY CLUTCH SNAPAT; 1999-10-01~2000-11-01 |
26692-78G10-000 |
US $5.23 |
||
|
13
|
13
24151-78G10-000 GEAR ASSY,INTERNALAT; 1999-10-01~2000-11-01 |
24151-78G10-000 |
US $158.98 |
||
