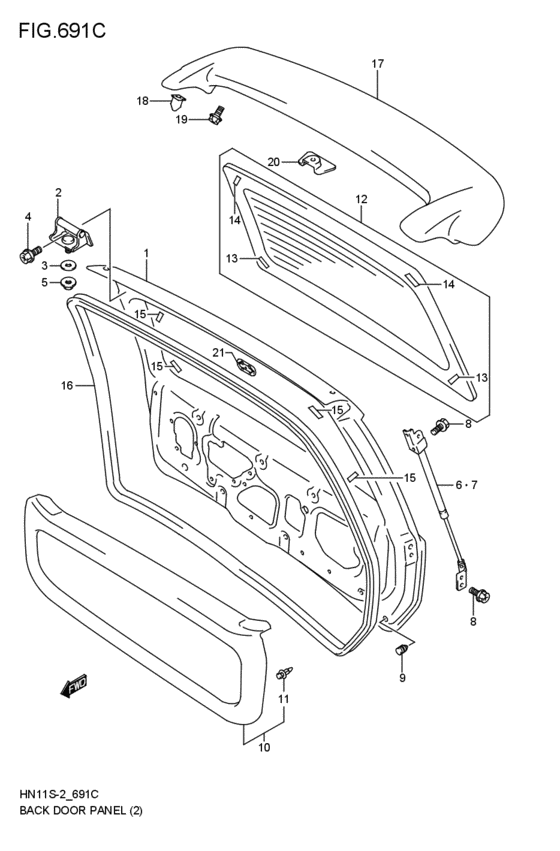

back door panel (S,XF; 1999-10-01~2000-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-74G21-000
Panel assy, back door
スポイラ; S,XF; 1999-10-01~2000-11-01 |
69100-74G21-000 |
— | ||
| replacements | |||||
|
1
|
1
35819-72J00-000 COVER,HIGH MT STOP LAMP HOLEスポイラ; S,XF; 1999-10-01~2000-11-01 |
35819-72J00-000 |
US $2.58 |
||
|
1
|
1
69100-82GC0-000 PANEL ASSY,BACK DOORスポイラ; S,XF; 1999-10-01~2000-11-01 |
69100-82GC0-000 |
US $503.36 |
||
|
1
|
1
82841-82G02-000 HANDLE,BACK DOOR INNERスポイラ; S,XF; 1999-10-01~2000-11-01 |
82841-82G02-000 |
US $7.62 |
||
|
2
|
2
69510-76G00-000 HINGE,BACK DOORS,XF; 1999-10-01~2000-11-01 |
69510-76G00-000 |
US $25.39 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNGS,XF; 1999-10-01~2000-11-01 |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
S,XF; 1999-10-01~2000-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt S,XF; 1999-10-01~2000-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket S,XF; 1999-10-01~2000-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
08361-25083-000
Nut
S,XF; 1999-10-01~2000-11-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUTS,XF; 1999-10-01~2000-11-01 |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-74G11-X10
バランサ,バックドア,ライト
S,XF; 1999-10-01~2000-11-01 |
81850-74G11-X10 |
— | ||
| replacement | |||||
|
6
|
6
81850-74G11-000 BALANCER,BACK DR,RS,XF; 1999-10-01~2000-11-01 |
81850-74G11-000 |
US $82.80 |
||
|
7
|
7
81860-74G11-X10
バランサ,バックドア,レフト
S,XF; 1999-10-01~2000-11-01 |
81860-74G11-X10 |
— | ||
| replacement | |||||
|
7
|
7
81860-74G11-000 BALANCER,BACK DR,LS,XF; 1999-10-01~2000-11-01 |
81860-74G11-000 |
US $82.80 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
S,XF; 1999-10-01~2000-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt S,XF; 1999-10-01~2000-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket S,XF; 1999-10-01~2000-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
76683-70C00-000 CUSHION,TRUNK LID/BACK DRS,XF; 1999-10-01~2000-11-01 |
76683-70C00-000 |
US $1.92 |
||
|
10
|
10
83770-74G00-T01
TRIM,BACK DOOR
グレ-; S,XF; 1999-10-01~2000-11-01 |
83770-74G00-T01 |
— | ||
|
11
|
11
09409-08320-000 CLIPS,XF; 1999-10-01~2000-11-01 |
09409-08320-000 |
from US $1.15 |
||
|
12
|
12
84570-74G11-000 GLASS,BACK DR WINDOWダークグレー,ASAHI; S,XF; 1999-10-01~2000-11-01 |
84570-74G11-000 |
US $443.52 |
||
|
13
|
13
84572-74G00-000 MALE,GLASS FASTENER NO.1S,XF; 1999-10-01~2000-11-01 |
84572-74G00-000 |
US $3.79 |
||
|
14
|
14
84513-76F00-000 MALE,GLASS FASTENER NO.2S,XF; 1999-10-01~2000-11-01 |
84513-76F00-000 |
US $1.60 |
||
|
15
|
15
84515-65D00-000 FEMALE,GLASS FASTENER NO.2S,XF; 1999-10-01~2000-11-01 |
84515-65D00-000 |
from US $3.51 |
||
|
16
|
16
84681-74G00-000 WEATHERSTRIP,BACK DR OPNGS,XF; 1999-10-01~2000-11-01 |
84681-74G00-000 |
US $67.34 |
||
|
17
|
17
83980-74G00-000
AIR SPOILER,BACK DR
キジショク; S,XF; 1999-10-01~2000-11-01 |
83980-74G00-000 |
— | ||
|
18
|
18
09410-00076-000 CLIPS,XF; 1999-10-01~2000-11-01 |
09410-00076-000 |
from US $1.19 |
||
|
19
|
19
02162-06103-000
Bolt
S,XF; 1999-10-01~2000-11-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
19
|
19
02162-0610A-000 SCREWS,XF; 1999-10-01~2000-11-01 |
02162-0610A-000 |
from US $0.64 |
||
|
20
|
20
83981-74G00-000 CAP,AIR SPOILERS,XF; 1999-10-01~2000-11-01 |
83981-74G00-000 |
US $5.34 |
||
|
21
|
21
83917-82010-T01
Cap, back door hole (gray)
S,XF; 1999-10-01~2000-11-01 |
83917-82010-T01 |
— | ||
| replacement | |||||
|
21
|
21
83917-82010-5PK CAP,BACK DR HOLES,XF; 1999-10-01~2000-11-01 |
83917-82010-5PK |
US $1.60 |
||
