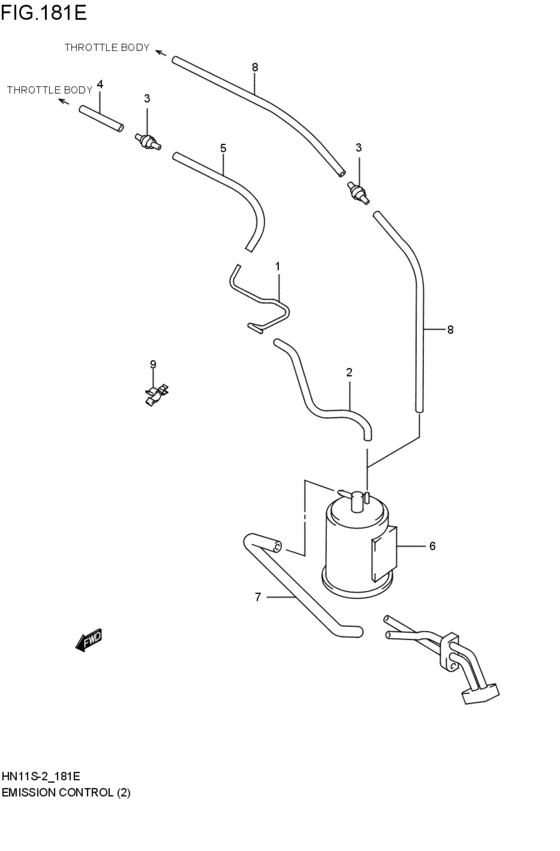

emission control (K6A; 1999-10-01~2000-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18340-77G00-000 PIPE,VACUUMK6A; 1999-10-01~2000-05-01 |
18340-77G00-000 |
US $5 |
||
|
2
|
2
18564-72GV0-000 HOSE,L:310L:310>260; K6A; 1999-10-01~2000-05-01 |
18564-72GV0-000 |
US $6.07 |
||
|
3
|
3
18565-84151-000 VALVE,CANISTER PURGEK6A; 1999-10-01~2000-11-01 |
18565-84151-000 |
US $21.60 |
||
|
4
|
4
09355-35754-601
HOSE(3.5X7.5X601)
L:601>50; K6A; 1999-10-01~2000-05-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
4
|
4
09355-35006-601 Hose(3.5X7.5X601)L:601>50; K6A; 1999-10-01~2000-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
5
|
5
09355-35754-601
HOSE(3.5X7.5X601)
L:601>110; K6A; 1999-10-01~2000-05-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
5
|
5
09355-35006-601 Hose(3.5X7.5X601)L:601>110; K6A; 1999-10-01~2000-05-01 |
09355-35006-601 |
from US $5.74 |
||
|
6
|
6
18560-75F00-000 CANISTERK6A; 1999-10-01~2000-11-01 |
18560-75F00-000 |
US $64.77 |
||
|
7
|
7
18567-76G00-000 HOSE,CANISTER INLETK6A; 1999-10-01~2000-11-01 |
18567-76G00-000 |
US $12.95 |
||
|
8
|
8
09355-35754-601
HOSE(3.5X7.5X601)
L:601>230; K6A; 2000-05-01~2000-11-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
8
|
8
09355-35006-601 Hose(3.5X7.5X601)L:601>230; K6A; 2000-05-01~2000-11-01 |
09355-35006-601 |
from US $5.74 |
||
|
9
|
9
09408-00193-000
クリップ
K6A; 2000-05-01~2000-11-01 |
09408-00193-000 |
— | ||
| replacement | |||||
|
9
|
9
09408-00131-000 CLAMPK6A; 2000-05-01~2000-11-01 |
09408-00131-000 |
US $14.40 |
||
