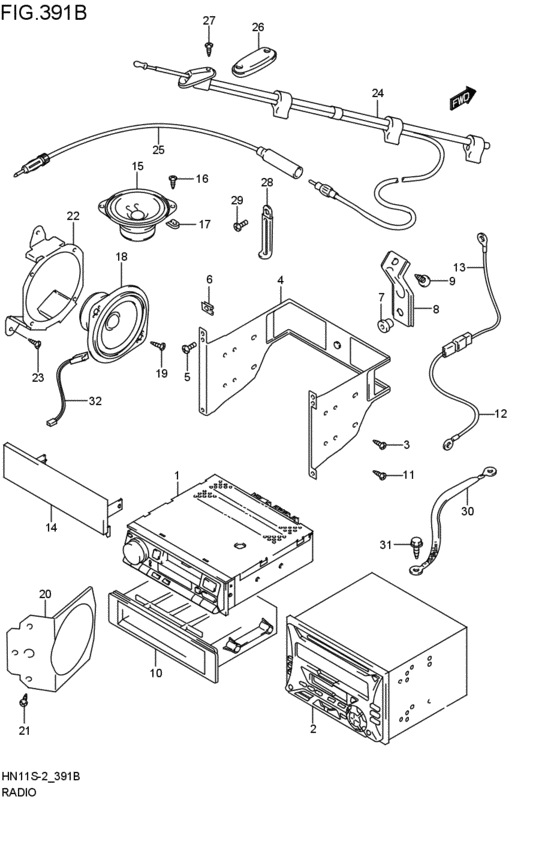

radio (1999-10-01~2000-11-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-76G70-000
チューナアッシ(AM/FM,カセット)
S,X:5DR; 1999-10-01~2000-11-01 |
39101-76G70-000 |
— | ||
|
3
|
3
02142-05083-000
Screw
G,X,S,EE; 1999-10-01~2000-11-01 |
02142-05083-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0508A-000 SCREWScrew, cap G,X,S,EE; 1999-10-01~2000-11-01 |
02142-0508A-000 |
from US $0.76 |
||
|
4
|
4
39321-74G00-000
BRACKET,TUNER
1999-10-01~2000-11-01 |
39321-74G00-000 |
— | ||
|
5
|
5
03541-05163-000
Screw
1999-10-01~2000-11-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
5
|
5
03541-0516A-000 SCREW1999-10-01~2000-11-01 |
03541-0516A-000 |
from US $0.68 |
||
|
6
|
6
09148-05045-000 NUT1999-10-01~2000-11-01 |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
34955-60E00-000 BUSH1999-10-01~2000-11-01 |
34955-60E00-000 |
US $2.40 |
||
|
8
|
8
39321-74G10-000
STAY,TUNER BRACKET
1999-10-01~2000-11-01 |
39321-74G10-000 |
— | ||
|
9
|
9
02142-05103-000
Screw 5x10
1999-10-01~2000-11-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0510B-000 SCREWBolt 1999-10-01~2000-11-01 |
02142-0510B-000 |
from US $0.76 |
||
|
10
|
10
39182-70E50-000
ポケット,チューナ
E,EE,G,X,S; 1999-10-01~2000-11-01 |
39182-70E50-000 |
— | ||
| replacement | |||||
|
10
|
10
39182-70E51-000 POCKET,TUNERE,EE,G,X,S; 1999-10-01~2000-11-01 |
39182-70E51-000 |
US $20 |
||
|
11
|
11
03242-05123-000
Screw, inner cover
1999-10-01~2000-11-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW1999-10-01~2000-11-01 |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
39191-50F00-000 WIRE,TUNER GNDG,X,S,EE,XF; 1999-10-01~2000-11-01 |
39191-50F00-000 |
US $2.24 |
||
|
13
|
13
39192-74G00-000
Wire, tuner ground no.2
1999-10-01~2000-11-01 |
39192-74G00-000 |
— | ||
| replacement | |||||
|
13
|
13
39192-76G10-000 WIRE,TUNER GND NO.21999-10-01~2000-11-01 |
39192-76G10-000 |
US $9.90 |
||
|
15
|
15
39102-60F00-000 SPEAKER ASSYG,S,X:5DR,EE,XF; 1999-10-01~2000-11-01 |
39102-60F00-000 |
US $48.21 |
||
|
16
|
16
03541-05123-000
Screw
EE,G,XF,S,5DR:X; 1999-10-01~2000-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0512B-000 SCREWEE,G,XF,S,5DR:X; 1999-10-01~2000-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
17
|
17
09148-05045-000 NUTEE,G,XF,S,5DR:X; 1999-10-01~2000-11-01 |
09148-05045-000 |
from US $0.81 |
||
|
18
|
18
39102-74G10-000
スピーカアッシ
CLARION; X,S,XF; 1999-10-01~2000-11-01 |
39102-74G10-000 |
— | ||
|
19
|
19
03142-05123-000
Screw
X,S,XF; 1999-10-01~2000-11-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0512A-000 SCREWScrew, belt cooling duct X,S,XF; 1999-10-01~2000-11-01 |
03141-0512A-000 |
from US $0.76 |
||
|
22
|
22
39350-74G10-000 BRACKET,RR SPKRS,X:5DR,XF; 1999-10-01~2000-11-01 |
39350-74G10-000 |
US $11.11 |
||
|
23
|
23
02162-06123-000
Bolt (6x12)
S,X:5DR,XF; 1999-10-01~2000-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt S,X:5DR,XF; 1999-10-01~2000-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket S,X:5DR,XF; 1999-10-01~2000-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
24
|
24
39250-70F70-000
Antenna assy
G,X,S,EE,XF; 1999-10-01~2000-11-01 |
39250-70F70-000 |
— | ||
| replacement | |||||
|
24
|
24
39250-70F20-000 ANTENNA ASSYG,X,S,EE,XF; 1999-10-01~2000-11-01 |
39250-70F20-000 |
US $73.97 |
||
|
25
|
25
39271-76F00-000 FEEDER,ANT L 460G,S,X:5DR,EE; 1999-10-01~2000-11-01 |
39271-76F00-000 |
US $22.08 |
||
|
27
|
27
39251-60D01-000
Screw
1999-10-01~2000-11-01 |
39251-60D01-000 |
— | ||
| replacements | |||||
|
27
|
27
09129-04003-000 SCREW(4X12)1999-10-01~2000-11-01 |
09129-04003-000 |
US $15.10 |
||
|
27
|
27
09125-04033-000
スクリュ,4X16
1999-10-01~2000-11-01 |
09125-04033-000 |
— | ||
|
28
|
28
09404-06432-000
CLAMP(L:65)
1999-10-01~2000-11-01 |
09404-06432-000 |
— | ||
| replacement | |||||
|
28
|
28
09404-06039-000 Clamp(L:65)1999-10-01~2000-11-01 |
09404-06039-000 |
from US $1.82 |
||
|
29
|
29
03541-05123-000
Screw
1999-10-01~2000-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
29
|
29
03541-0512B-000 SCREW1999-10-01~2000-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
30
|
30
39312-76G00-000
Wire, noise suppressor
1999-10-01~2000-11-01 |
39312-76G00-000 |
— | ||
| replacement | |||||
|
30
|
30
39312-76G10-000 WIRE,NOISE SUPPR1999-10-01~2000-11-01 |
39312-76G10-000 |
US $6.29 |
||
|
31
|
31
09115-06001-000
Bolt, lh
1999-10-01~2000-11-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
31
|
31
09115-06005-000 BOLT(6X16)1999-10-01~2000-11-01 |
09115-06005-000 |
US $1.28 |
||
|
32
|
32
36855-74G00-000 WIRE,RR SPEAKERS,X:5DR,XF; 1999-10-01~2000-11-01 |
36855-74G00-000 |
US $7.80 |
||
