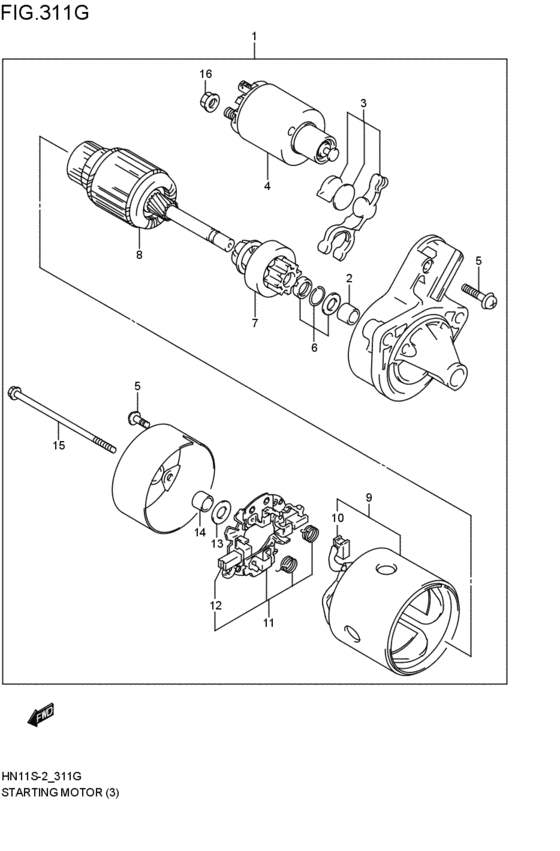

starting motor (カンレイチシヨウ,MITSUBISHI 199910 カラ 200002 マデ; K6A:AT; 1999-10-01~2000-02-01) Diagram Suzuki KEI/SWIFT
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- K6A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
- air bag
- AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-75F02-000
Motor assy,starting
カンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31100-75F02-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-75F03-000 MOTOR ASSY,STARTINGカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31100-75F03-000 |
US $499.84 |
||
|
2
|
2
31152-79030-000 BEARING,FRONTカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31152-79030-000 |
from US $4.68 |
||
|
3
|
3
31191-79030-000 LEVER ASSYカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31191-79030-000 |
US $14.46 |
||
|
4
|
4
31220-84030-000 SWITCH ASSYカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31220-84030-000 |
US $177.74 |
||
|
5
|
5
31136-79030-000
SCREW ASSY
カンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
5
|
5
31175-79030-000 Screw Setカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31175-79030-000 |
US $8.16 |
||
|
6
|
6
31313-80090-000 RING SETカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31313-80090-000 |
US $11.30 |
||
|
7
|
7
31320-82631-000 CLUTCH ASSYカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31320-82631-000 |
US $122.91 |
||
|
8
|
8
31311-86131-000 ARMATUREカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31311-86131-000 |
US $314.64 |
||
|
9
|
9
31110-70B30-000 YOKE ASSYカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31110-70B30-000 |
US $281.52 |
||
|
10
|
10
31131-80090-000 BRUSH(+)カンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31131-80090-000 |
US $11.30 |
||
|
11
|
11
31173-82130-000 HOLDER ASSY,BRUSHカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31173-82130-000 |
US $68 |
||
|
12
|
12
31132-80090-000 BRUSH(-)カンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31132-80090-000 |
US $11.30 |
||
|
13
|
13
31361-79030-000 WASHERカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31361-79030-000 |
US $8.02 |
||
|
14
|
14
31172-79030-000 BUSHカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31172-79030-000 |
US $5.63 |
||
|
15
|
15
31261-82130-000 Boltカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
31261-82130-000 |
US $6.40 |
||
|
16
|
16
08316-10083-000
Nut
カンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUTカンレイチシヨウ,MITSUBISHI; K6A:AT; 1999-10-01~2000-02-01 |
08316-1008B-000 |
from US $0.76 |
||
