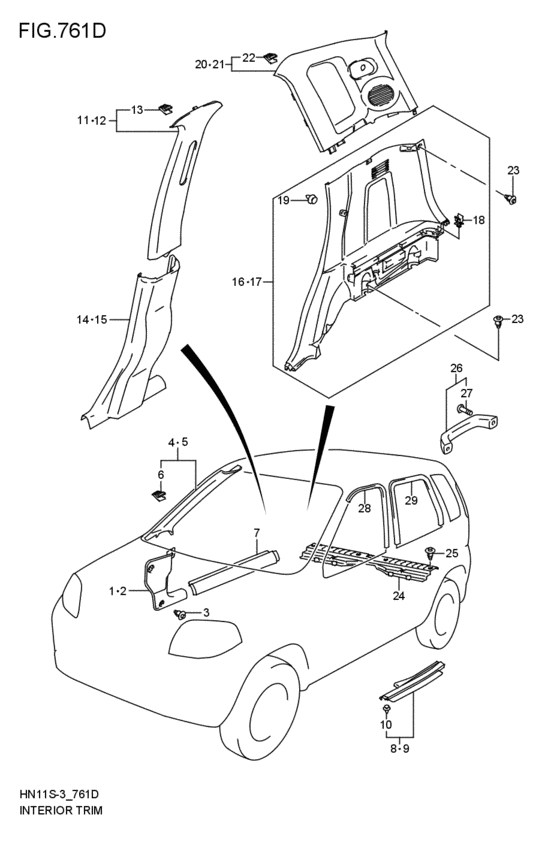

i trim interior (2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76120-74G00-P4Z
トリム,ダッシュサイド,ライト(グレー)
グレ-; 2000-10-01~2000-11-01 |
76120-74G00-P4Z |
— | ||
| replacement | |||||
|
1
|
1
76120-74G01-P4Z TRIM,DASH SIDE,Rグレ-; 2000-10-01~2000-11-01 |
76120-74G01-P4Z |
US $21.16 |
||
|
1
|
1
76120-74G01-P4Z TRIM,DASH SIDE,Rグレー; 2000-11-01~2001-05-01 |
76120-74G01-P4Z |
US $21.16 |
||
|
2
|
2
76130-74G00-P4Z TRIM,DASH SIDE,Lグレ-; 2000-10-01~2001-05-01 |
76130-74G00-P4Z |
US $21.16 |
||
|
3
|
3
09409-07308-P4Z CLIP(GRAY)グレ-; 2000-10-01~2001-05-01 |
09409-07308-P4Z |
US $1.76 |
||
|
4
|
4
76140-74G01-6GS
TRIM,FR PILLAR INNER,R
グレ-; 2000-10-01~2001-05-01 |
76140-74G01-6GS |
— | ||
|
5
|
5
76150-74G00-6GS
Trim comp,fr pillar inner,l
グレ-; 2000-10-01~2001-05-01 |
76150-74G00-6GS |
— | ||
|
6
|
6
09409-10308-000 CLIPスチール; 2000-10-01~2001-05-01 |
09409-10308-000 |
US $1.60 |
||
|
7
|
7
76161-77G00-P4Z SCUFF,SIDE SILLグレ-; 2000-10-01~2001-05-01 |
76161-77G00-P4Z |
US $20.61 |
||
|
8
|
8
76181-75G00-P4Z SCUFF,SIDE SILL RR,Rグレ-; 2000-10-01~2001-05-01 |
76181-75G00-P4Z |
US $23.74 |
||
|
9
|
9
76191-75G00-P4Z SCUFF,SIDE SILL RR,Lグレ-; 2000-10-01~2001-05-01 |
76191-75G00-P4Z |
US $23.74 |
||
|
10
|
10
09409-08331-000 CLIP2000-10-01~2001-05-01 |
09409-08331-000 |
from US $1.24 |
||
|
11
|
11
76232-75G10-6GS
TRIM,CTR PLR INR UPR,R
G,F,S; 2000-10-01~2001-05-01 |
76232-75G10-6GS |
— | ||
|
12
|
12
76242-75G10-6GS
TRIM,CTR PLR INR UPR,L
グレ-; G,F,S; 2000-10-01~2001-05-01 |
76242-75G10-6GS |
— | ||
|
13
|
13
09409-10308-000 CLIPスチール; 2000-10-01~2001-05-01 |
09409-10308-000 |
US $1.60 |
||
|
14
|
14
76230-75G00-P4Z
トリム,センタピラーロア,ライト(グレー)
グレ-; 2000-10-01~2000-11-01 |
76230-75G00-P4Z |
— | ||
| replacement | |||||
|
14
|
14
76230-75G02-P4Z TRIM,CTR PILLAR LWR,Rグレ-; 2000-10-01~2000-11-01 |
76230-75G02-P4Z |
US $37.90 |
||
|
14
|
14
76230-75G01-P4Z
トリム,センタピラーロア,ライト(グレー)
グレー; 2000-11-01~2001-05-01 |
76230-75G01-P4Z |
— | ||
| replacement | |||||
|
14
|
14
76230-75G02-P4Z TRIM,CTR PILLAR LWR,Rグレー; 2000-11-01~2001-05-01 |
76230-75G02-P4Z |
US $37.90 |
||
|
15
|
15
76240-75G00-P4Z
トリム,センタピラーロア,レフト(グレー)
グレ-; 2000-10-01~2000-11-01 |
76240-75G00-P4Z |
— | ||
| replacement | |||||
|
15
|
15
76240-75G02-P4Z TRIM,CTR PILLAR LWR,Lグレ-; 2000-10-01~2000-11-01 |
76240-75G02-P4Z |
US $37.90 |
||
|
15
|
15
76240-75G01-P4Z
トリム,センタピラーロア,レフト(グレー)
グレー; 2000-11-01~2001-05-01 |
76240-75G01-P4Z |
— | ||
| replacement | |||||
|
15
|
15
76240-75G02-P4Z TRIM,CTR PILLAR LWR,Lグレー; 2000-11-01~2001-05-01 |
76240-75G02-P4Z |
US $37.90 |
||
|
16
|
16
76210-75G01-P4Z
トリム,クォータインナ,ライト(グレー)
グレ-; 2000-10-01~2001-05-01 |
76210-75G01-P4Z |
— | ||
| replacement | |||||
|
16
|
16
76210-75G02-P4Z TRIM,QTR INNER,Rグレ-; 2000-10-01~2001-05-01 |
76210-75G02-P4Z |
US $128.80 |
||
|
17
|
17
76220-75G01-P4Z
トリム,クォータインナ,レフト(グレー)
グレ-; 2000-10-01~2001-05-01 |
76220-75G01-P4Z |
— | ||
| replacement | |||||
|
17
|
17
76220-75G02-P4Z TRIM,QTR INNER,Lグレ-; 2000-10-01~2001-05-01 |
76220-75G02-P4Z |
US $128.80 |
||
|
18
|
18
76215-74G00-000 HOLDER,LUG LID2000-10-01~2001-05-01 |
76215-74G00-000 |
from US $1.60 |
||
|
19
|
19
76216-76F20-000 CLIP,QTR TRIM2000-10-01~2001-05-01 |
76216-76F20-000 |
from US $1.82 |
||
|
20
|
20
76251-75G00-6GS TRIM,QTR WINDOW,Rグレ-; 2000-10-01~2001-05-01 |
76251-75G00-6GS |
US $73.60 |
||
|
21
|
21
76261-75G00-6GS TRIM,QTR WINDOW,Lグレ-; 2000-10-01~2001-05-01 |
76261-75G00-6GS |
US $152 |
||
|
22
|
22
09409-10308-000 CLIPスチール; 2000-10-01~2001-05-01 |
09409-10308-000 |
US $1.60 |
||
|
23
|
23
09409-07308-P4Z CLIP(GRAY)グレ-; 2000-10-01~2001-05-01 |
09409-07308-P4Z |
US $1.76 |
||
|
24
|
24
76271-74G00-P4Z TRIM,TAIL END MEMBERグレ-; 2000-10-01~2001-05-01 |
76271-74G00-P4Z |
US $35.88 |
||
|
25
|
25
09409-07308-P4Z CLIP(GRAY)グレ-; 2000-10-01~2001-05-01 |
09409-07308-P4Z |
US $1.76 |
||
|
26
|
26
76400-70820-6GS GRIP,ASSTグレ-; 2000-10-01~2001-05-01 |
76400-70820-6GS |
from US $10.87 |
||
|
27
|
27
09139-06104-000 SCREW(6X26)2000-10-01~2001-05-01 |
09139-06104-000 |
US $14 |
||
|
28
|
28
76291-75G00-6GS
TRIM,FR DOOR OPENING
グレ-; 2000-10-01~2001-05-01 |
76291-75G00-6GS |
— | ||
| replacement | |||||
|
28
|
28
76291-75G01-6GS
TRIM,FR DOOR OPENING
グレ-; 2000-10-01~2001-05-01 |
76291-75G01-6GS |
— | ||
|
29
|
29
76292-75G00-6GS
トリム,リヤドアオープニング(グレー)
グレ-; 2000-10-01~2001-05-01 |
76292-75G00-6GS |
— | ||
| replacement | |||||
|
29
|
29
76292-82G00-6GS TRIM,RR DOOR OPENINGグレ-; 2000-10-01~2001-05-01 |
76292-82G00-6GS |
US $23.37 |
||
