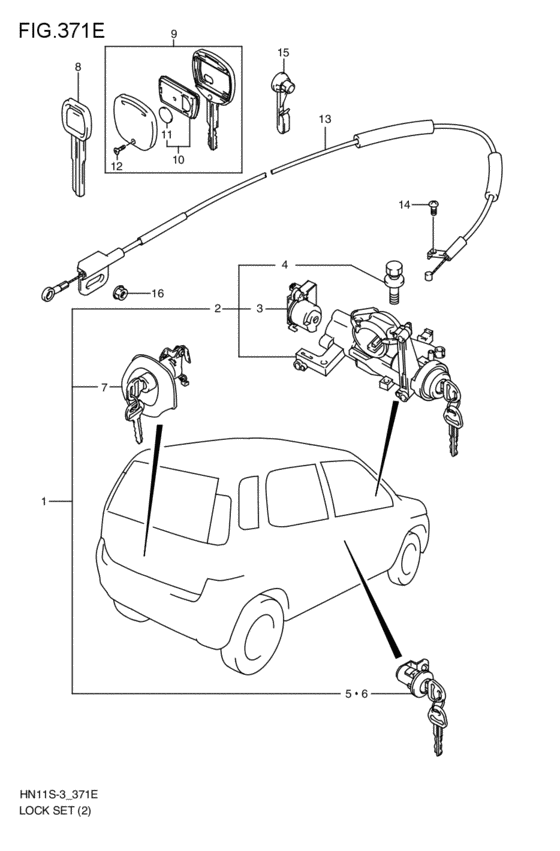

lock set (AT; 2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37105-76820-ZA4
ロックセット(ベージュ)
ベ-ジユ; AT:(F,S); 2000-10-01~2001-05-01 |
37105-76820-ZA4 |
— | ||
|
1
|
1
37105-76820-ZD9
ロックセット(グリーン)
グリ-ン; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
37105-76820-ZD9 |
— | ||
|
1
|
1
37105-76820-Z2S
ロックセット(シルバー)
シルバ-; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
37105-76820-Z2S |
— | ||
| replacement | |||||
|
1
|
1
37105-76821-Z2S
New Genuine Part
シルバ-; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
37105-76821-Z2S |
— | ||
|
1
|
1
37105-76820-Z5J
ロックセット(ブラック)
ブラック; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
37105-76820-Z5J |
— | ||
| replacement | |||||
|
1
|
1
37105-76820-ZJ3
ロックセット(ブラック)
ブラック; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
37105-76820-ZJ3 |
— | ||
|
1
|
1
37105-76820-Z7T
ロックセット(ホワイト)
ホワイト; AT:(E,G,F,S,ES); 2000-10-01~2001-05-01 |
37105-76820-Z7T |
— | ||
| replacement | |||||
|
1
|
1
37105-76821-Z7T
New Genuine Part
ホワイト; AT:(E,G,F,S,ES); 2000-10-01~2001-05-01 |
37105-76821-Z7T |
— | ||
|
2
|
2
37100-76881-000
Lock assy,steering
AT:AT; 2000-10-01~2001-05-01 |
37100-76881-000 |
— | ||
| replacement | |||||
|
2
|
2
37100-76882-000 LOCK ASSY,STEERINGAT:AT; 2000-10-01~2001-05-01 |
37100-76882-000 |
US $250.24 |
||
|
3
|
3
37111-76G00-000
Switch assy
AT; 2000-10-01~2001-05-01 |
37111-76G00-000 |
— | ||
| replacement | |||||
|
3
|
3
37111-78A10-000 SWITCH ASSYAT; 2000-10-01~2001-05-01 |
37111-78A10-000 |
US $127.68 |
||
|
4
|
4
37152-84100-000
Bolt
AT; 2000-10-01~2001-05-01 |
37152-84100-000 |
— | ||
| replacement | |||||
|
4
|
4
37152-84G00-000 BOLT, STRG LOCKAT; 2000-10-01~2001-05-01 |
37152-84G00-000 |
from US $2.98 |
||
|
5
|
5
82270-76810-000 CYLINDER,FR DR LOCK,RAT; 2000-10-01~2001-05-01 |
82270-76810-000 |
from US $45.63 |
||
|
6
|
6
82280-76810-000 CYLINDER,FR DR LOCK,LAT; 2000-10-01~2001-05-01 |
82280-76810-000 |
US $45.63 |
||
|
7
|
7
82500-74860-ZA4 CYLINDER ASSY,BACK DR LOCKベ-ジユ; AT:(F,S); 2000-10-01~2001-05-01 |
82500-74860-ZA4 |
US $121.44 |
||
|
7
|
7
82500-74860-ZD9
CYLINDER ASSY,BACK DR LOCK
グリ-ン; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
82500-74860-ZD9 |
— | ||
| replacement | |||||
|
7
|
7
82500-74860-5PK CYLINDER ASSY,BACK DR LOCKグリ-ン; AT:(E,G,F,S); 2000-10-01~2001-05-01 |
82500-74860-5PK |
US $87.22 |
||
|
7
|
7
82500-74860-Z2S CYLINDER ASSY,BACK DR LOCKシルバ-; AT:(E,G,F,S,EX); 2000-10-01~2001-05-01 |
82500-74860-Z2S |
US $121.44 |
||
|
7
|
7
82500-74860-Z5J
シリンダ,バックドアロック(ブラック)
ブラック; AT:(E,G,F,S,EX); 2000-10-01~2001-05-01 |
82500-74860-Z5J |
— | ||
| replacement | |||||
|
7
|
7
82500-74860-ZJ3 CYLINDER ASSY,BACK DR LOCKブラック; AT:(E,G,F,S,EX); 2000-10-01~2001-05-01 |
82500-74860-ZJ3 |
US $121.44 |
||
|
7
|
7
82500-74860-Z7T CYLINDER ASSY,BACK DR LOCKホワイト; AT:(E,G,F,S,EX,ES); 2000-10-01~2001-05-01 |
82500-74860-Z7T |
US $121.44 |
||
|
8
|
8
37145-50E00-000 KEY,BLANKOPT; AT; 2000-10-01~2001-05-01 |
37145-50E00-000 |
US $18.77 |
||
|
9
|
9
37145-84G00-000 KEY,BLANK TRANSMITTER,KEY LESSOPT,トランスミッタ,キーレス; AT:(E,G,F,S,ES); 2000-10-01~2001-05-01 |
37145-84G00-000 |
US $121.44 |
||
|
10
|
10
37182-84G00-000 SWITCH,TRANSMITTER,KEYLESSAT; 2000-10-01~2001-05-01 |
37182-84G00-000 |
US $79.49 |
||
|
11
|
11
37185-76G50-000
バッテリ,リチユーム,CR1220
AT; 2000-10-01~2001-05-01 |
37185-76G50-000 |
— | ||
|
12
|
12
37186-76G50-000 SCREWAT; 2000-10-01~2001-05-01 |
37186-76G50-000 |
US $2.58 |
||
|
13
|
13
28551-76G10-000 CABLE,KEY INTER LOCKAT; 2000-10-01~2001-05-01 |
28551-76G10-000 |
US $36.25 |
||
|
14
|
14
09125-05113-000 SCREW(5X12)AT; 2000-10-01~2001-05-01 |
09125-05113-000 |
US $14 |
||
|
15
|
15
09403-05316-000 CLAMPAT; 2000-10-01~2001-05-01 |
09403-05316-000 |
US $19.50 |
||
|
16
|
16
08316-10083-000
Nut
AT; 2000-10-01~2001-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUTAT; 2000-10-01~2001-05-01 |
08316-1008B-000 |
from US $0.76 |
||
