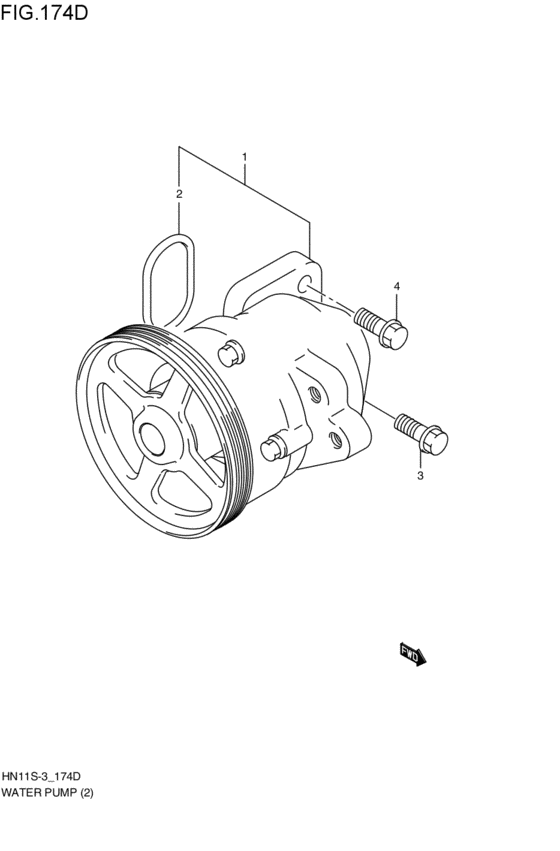

water pump (K6A; 2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-78850-000
Pump set, water
K6A:TURBO; 2000-10-01~2001-05-01 |
17400-78850-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-78854-000
PUMP SET,WATER
K6A:TURBO; 2000-10-01~2001-05-01 |
17400-78854-000 |
— | ||
|
2
|
2
17611-73G00-000
O ring
K6A; 2000-10-01~2001-05-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMPK6A; 2000-10-01~2001-05-01 |
17611-73G03-000 |
US $4.95 |
||
|
3
|
3
01550-08403-000
Bolt
K6A; 2000-10-01~2001-05-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltK6A; 2000-10-01~2001-05-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLTK6A; 2000-10-01~2001-05-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08303-000
Bolt
K6A; 2000-10-01~2001-05-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltK6A; 2000-10-01~2001-05-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover K6A; 2000-10-01~2001-05-01 |
01550-0830A-000 |
from US $1.06 |
||
