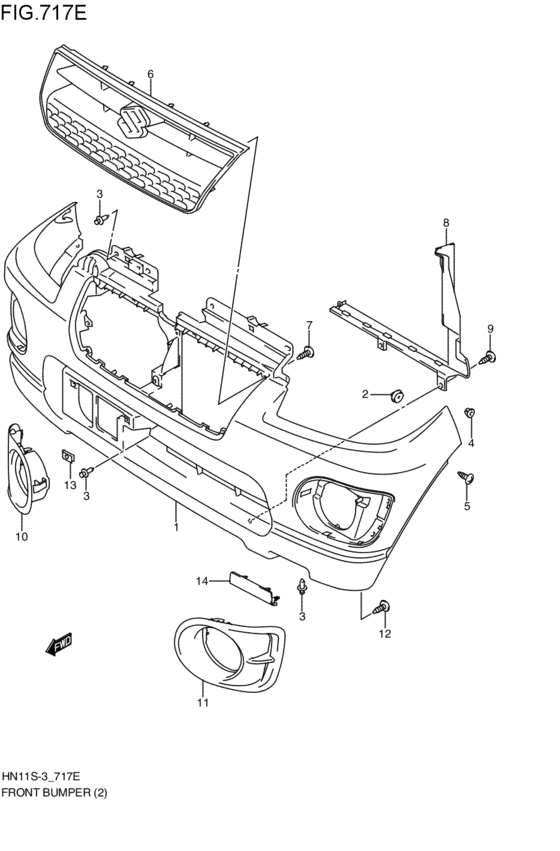

front bumper (F,S; 2000-10-01~2001-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- TURBO
- drive
- 4WD
- transmission
- AT
- grade
- S
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-82G20-Z7T
バンパ,フロント(ホワイト)
ホワイト; F,S; 2000-10-01~2001-05-01 |
71711-82G20-Z7T |
— | ||
|
1
|
1
71711-82G20-799 BUMPER,FR(PRIMARY)プライマリ-; F,S; 2000-10-01~2001-05-01 |
71711-82G20-799 |
US $499.84 |
||
|
2
|
2
71712-82G00-000 CLIP,BUMPER SIDE UPPERF,S; 2000-10-01~2001-05-01 |
71712-82G00-000 |
US $1.60 |
||
|
3
|
3
09409-08327-000 CLIPF,S; 2000-10-01~2001-05-01 |
09409-08327-000 |
from US $1.17 |
||
|
4
|
4
09148-06007-000 NUTF,S; 2000-10-01~2001-05-01 |
09148-06007-000 |
from US $0.88 |
||
|
5
|
5
03242-06163-000
Screw
F,S; 2000-10-01~2001-05-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0616C-000 SCREWF,S; 2000-10-01~2001-05-01 |
03241-0616C-000 |
from US $0.76 |
||
|
6
|
6
71741-82G10-38B
GRILLE,FR BUMPER
グレ-; F,S; 2000-10-01~2001-05-01 |
71741-82G10-38B |
— | ||
| replacement | |||||
|
6
|
6
71741-82G10-000 Grille,fr Bumper(Non Paint)グレ-; F,S; 2000-10-01~2001-05-01 |
71741-82G10-000 |
US $46.37 |
||
|
7
|
7
03541-04123-000
Screw
F,S; 2000-10-01~2001-05-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
7
|
7
03541-0412B-000 SCREWScrew, plate F,S; 2000-10-01~2001-05-01 |
03541-0412B-000 |
from US $0.80 |
||
|
7
|
7
03541-0412A-000 SCREWScrew, speedometer F,S; 2000-10-01~2001-05-01 |
03541-0412A-000 |
from US $0.80 |
||
|
8
|
8
71781-82G00-000 EXTENSION,FR BUMPER LWRF,S; 2000-10-01~2001-05-01 |
71781-82G00-000 |
US $26.86 |
||
|
9
|
9
03541-05123-000
Screw
F,S; 2000-10-01~2001-05-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0512B-000 SCREWF,S; 2000-10-01~2001-05-01 |
03541-0512B-000 |
from US $0.76 |
||
|
10
|
10
71751-82G10-ZA4 BEZEL,FR FOG LAMP,Rベ-ジユ; F,S; 2000-10-01~2001-05-01 |
71751-82G10-ZA4 |
US $57.04 |
||
|
10
|
10
71751-82G10-ZD9
Bezel,front fog lamp,r
グリ-ン; F,S; 2000-10-01~2001-05-01 |
71751-82G10-ZD9 |
— | ||
| replacement | |||||
|
10
|
10
71751-82G10-799 BEZEL,FR FOG LAMP,Rグリ-ン; F,S; 2000-10-01~2001-05-01 |
71751-82G10-799 |
US $35.70 |
||
|
10
|
10
71751-82G10-Z2S BEZEL,FR FOG LAMP,Rシルバ-; F,S; 2000-10-01~2001-05-01 |
71751-82G10-Z2S |
US $57.04 |
||
|
10
|
10
71751-82G10-Z5J
BEZEL,FR FOG LAMP,R
ブラック; F,S; 2000-10-01~2001-05-01 |
71751-82G10-Z5J |
— | ||
| replacement | |||||
|
10
|
10
71751-82G10-799 BEZEL,FR FOG LAMP,Rブラック; F,S; 2000-10-01~2001-05-01 |
71751-82G10-799 |
US $35.70 |
||
|
10
|
10
71751-82G10-Z7T BEZEL,FR FOG LAMP,Rホワイト; F,S; 2000-10-01~2001-05-01 |
71751-82G10-Z7T |
US $56.30 |
||
|
11
|
11
71761-82G10-ZA4
BEZEL,FR FOG LAMP,L
ベ-ジユ; F,S; 2000-10-01~2001-05-01 |
71761-82G10-ZA4 |
— | ||
| replacement | |||||
|
11
|
11
71761-82G10-799 BEZEL,FR FOG LAMP,Lベ-ジユ; F,S; 2000-10-01~2001-05-01 |
71761-82G10-799 |
US $35.70 |
||
|
11
|
11
71761-82G10-ZD9
BEZEL,FR FOG LAMP,L
グリ-ン; F,S; 2000-10-01~2001-05-01 |
71761-82G10-ZD9 |
— | ||
| replacement | |||||
|
11
|
11
71761-82G10-799 BEZEL,FR FOG LAMP,Lグリ-ン; F,S; 2000-10-01~2001-05-01 |
71761-82G10-799 |
US $35.70 |
||
|
11
|
11
71761-82G10-Z2S BEZEL,FR FOG LAMP,Lシルバ-; F,S; 2000-10-01~2001-05-01 |
71761-82G10-Z2S |
US $57.04 |
||
|
11
|
11
71761-82G10-Z5J
BEZEL,FR FOG LAMP,L
ブラック; F,S; 2000-10-01~2001-05-01 |
71761-82G10-Z5J |
— | ||
| replacement | |||||
|
11
|
11
71761-82G10-799 BEZEL,FR FOG LAMP,Lブラック; F,S; 2000-10-01~2001-05-01 |
71761-82G10-799 |
US $35.70 |
||
|
11
|
11
71761-82G10-Z7T BEZEL,FR FOG LAMP,Lホワイト; F,S; 2000-10-01~2001-05-01 |
71761-82G10-Z7T |
US $56.30 |
||
|
12
|
12
03541-04123-000
Screw
F,S; 2000-10-01~2001-05-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
12
|
12
03541-0412B-000 SCREWScrew, plate F,S; 2000-10-01~2001-05-01 |
03541-0412B-000 |
from US $0.80 |
||
|
12
|
12
03541-0412A-000 SCREWScrew, speedometer F,S; 2000-10-01~2001-05-01 |
03541-0412A-000 |
from US $0.80 |
||
|
13
|
13
71812-82010-000
Nut
F,S; 2000-10-01~2001-05-01 |
71812-82010-000 |
— | ||
| replacement | |||||
|
13
|
13
09148-06021-000 NUTNut, air cleaner F,S; 2000-10-01~2001-05-01 |
09148-06021-000 |
from US $1.31 |
||
|
14
|
14
71713-82G00-ZA4
COVER,FR BUMPER LWR
ベ-ジユ; F,S; 2000-10-01~2001-05-01 |
71713-82G00-ZA4 |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRベ-ジユ; F,S; 2000-10-01~2001-05-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-ZD9
COVER,FR BUMPER LWR
グリ-ン; F,S; 2000-10-01~2001-05-01 |
71713-82G00-ZD9 |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRグリ-ン; F,S; 2000-10-01~2001-05-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-Z2S
COVER,FR BUMPER LWR
シルバ-; F,S; 2000-10-01~2001-05-01 |
71713-82G00-Z2S |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRシルバ-; F,S; 2000-10-01~2001-05-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-Z5J
COVER,FR BUMPER LWR
ブラック; F,S; 2000-10-01~2001-05-01 |
71713-82G00-Z5J |
— | ||
| replacement | |||||
|
14
|
14
71713-82G00-799 COVER,FR BUMPER LWRブラック; F,S; 2000-10-01~2001-05-01 |
71713-82G00-799 |
US $34.96 |
||
|
14
|
14
71713-82G00-Z7T COVER,FR BUMPER LWRホワイト; F,S; 2000-10-01~2001-05-01 |
71713-82G00-Z7T |
US $46.37 |
||
