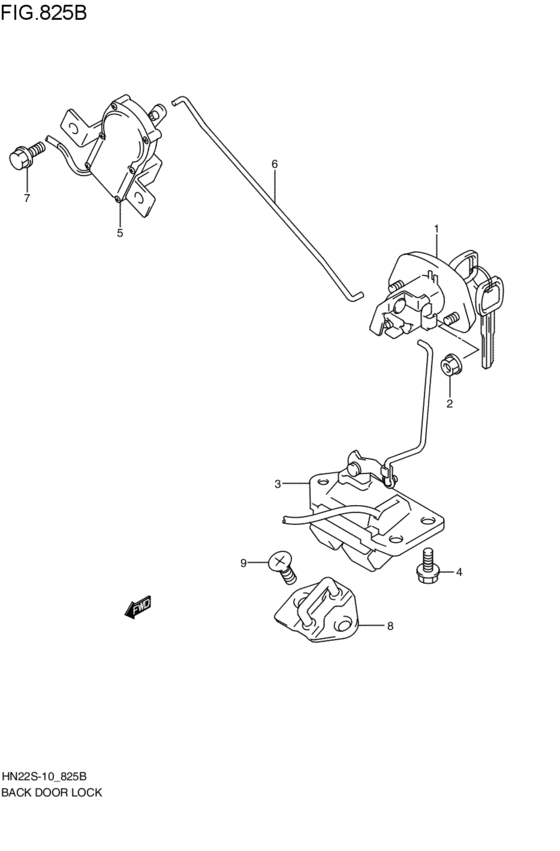

back door lock (2007-05-01~) Diagram Suzuki KEI/SWIFT
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 4WD
- transmission
- MT
- grade
- BB
- abs
- ABS
- deice
- DEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-74860-ZJ3 CYLINDER ASSY,BACK DR LOCKブラック; BA,BB,BW; 2007-05-01~ |
82500-74860-ZJ3 |
US $121.44 |
||
|
1
|
1
82500-74860-ZY4 CYLINDER ASSY,BACK DR LOCKグレ-; BA,BB,BW; 2007-05-01~ |
82500-74860-ZY4 |
US $121.44 |
||
|
1
|
1
82500-74860-Z2S CYLINDER ASSY,BACK DR LOCKシルバ-; BA,BB; 2007-05-01~ |
82500-74860-Z2S |
US $121.44 |
||
|
1
|
1
82500-74860-Z7T CYLINDER ASSY,BACK DR LOCKホワイト; BA,BB,BW; 2007-05-01~ |
82500-74860-Z7T |
US $121.44 |
||
|
2
|
2
08316-1006A-000 NUT2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
3
|
3
82510-74G01-000 LATCH ASSY,BACK DR2007-05-01~ |
82510-74G01-000 |
US $75.07 |
||
|
4
|
4
02162-0616C-000 SCREW2007-05-01~ |
02162-0616C-000 |
from US $0.80 |
||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2007-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH2007-05-01~ |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-74G00-000 ROD,BACK DOOR ACTUATOR2007-05-01~ |
82555-74G00-000 |
US $4.75 |
||
|
7
|
7
02162-0616C-000 SCREW2007-05-01~ |
02162-0616C-000 |
from US $0.80 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2007-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
82650-75F00-000 STRIKER,BACK DOOR2007-05-01~ |
82650-75F00-000 |
US $12.40 |
||
|
9
|
9
09137-08004-000 SCREW(8X18)2007-05-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
9
|
9
09137-08011-000 SCREW(8X18)2007-05-01~ |
09137-08011-000 |
US $1.44 |
||
