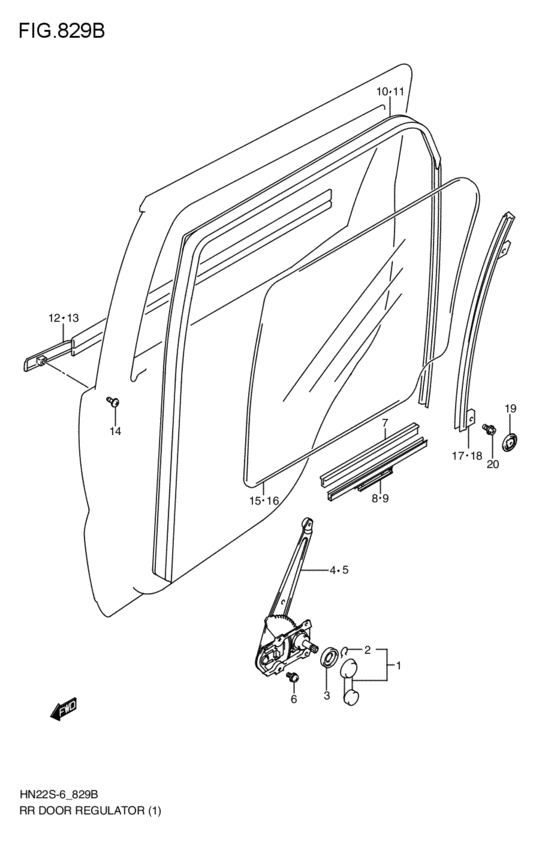

rear door regulator (B; 2002-11-01~2003-10-01) Diagram Suzuki KEI/SWIFT
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- B
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82960-60G00-P4Z HANDLE,DR WINDOW RGLTR(GRAY)グレー; B; 2002-11-01~2003-10-01 |
82960-60G00-P4Z |
from US $18.97 |
||
|
2
|
2
78463-78000-000 SNAPB; 2002-11-01~2003-10-01 |
78463-78000-000 |
US $1.60 |
||
|
3
|
3
82972-70B00-P4Z ESCUTCHEON,WINDOW RGLTR HDL(GRグレー; B; 2002-11-01~2003-10-01 |
82972-70B00-P4Z |
US $2.24 |
||
|
4
|
4
83510-75G00-000 REGULATOR ASSY,RR WINDOW,RB; 2002-11-01~2003-10-01 |
83510-75G00-000 |
US $61.82 |
||
|
5
|
5
83540-75G00-000 REGULATOR ASSY,RR WINDOW,LB; 2002-11-01~2003-10-01 |
83540-75G00-000 |
US $61.82 |
||
|
6
|
6
02112-76103-000
Screw
B; 2002-11-01~2003-10-01 |
02112-76103-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-7610A-000 SCREWB; 2002-11-01~2003-10-01 |
02112-7610A-000 |
from US $3.59 |
||
|
7
|
7
83691-77G00-000 RUBBER,GLASS BOTTOMB; 2002-11-01~2003-10-01 |
83691-77G00-000 |
US $4.67 |
||
|
8
|
8
83630-75G00-000 CHANNEL,RR GLASS BOTTOM,RB; 2002-11-01~2003-10-01 |
83630-75G00-000 |
US $14.83 |
||
|
9
|
9
83640-75G00-000 CHANNEL,RR GLASS BOTTOM,LB; 2002-11-01~2003-10-01 |
83640-75G00-000 |
US $14.83 |
||
|
10
|
10
83671-75G00-000 RUN,RR DOOR GLASS,RB; 2002-11-01~2003-10-01 |
83671-75G00-000 |
US $90.53 |
||
|
11
|
11
83675-75G00-000 RUN,RR DOOR GLASS,LB; 2002-11-01~2003-10-01 |
83675-75G00-000 |
US $90.53 |
||
|
12
|
12
83831-75G00-000 WEATHERSTRIP,RR DR OUT.RB; 2002-11-01~2003-10-01 |
83831-75G00-000 |
US $46 |
||
|
13
|
13
83841-75G00-000 WEATHERSTRIP,RR DR OUT.LB; 2002-11-01~2003-10-01 |
83841-75G00-000 |
US $46 |
||
|
14
|
14
09136-05059-000 SCREW(5X12)B; 2002-11-01~2003-10-01 |
09136-05059-000 |
US $15.50 |
||
|
15
|
15
84541-75G00-000 GLASS,RR DR WINDOW,RCENTRAL,グリーン; B; 2002-11-01~2003-10-01 |
84541-75G00-000 |
US $129.54 |
||
|
16
|
16
84546-75G00-000 GLASS RR DR WINDOW,LCENTRAL,グリーン; B; 2002-11-01~2003-10-01 |
84546-75G00-000 |
US $128.43 |
||
|
17
|
17
81770-75G00-000 SASH,RR DOOR REAR,RB; 2002-11-01~2003-10-01 |
81770-75G00-000 |
US $17.88 |
||
|
18
|
18
81780-75G00-000 SASH,RR DOOR REAR,LB; 2002-11-01~2003-10-01 |
81780-75G00-000 |
US $17.88 |
||
|
19
|
19
09250-30010-000
Grommet
B; 2002-11-01~2003-10-01 |
09250-30010-000 |
— | ||
| replacement | |||||
|
19
|
19
72999-67H00-000 CAP,OD:40B; 2002-11-01~2003-10-01 |
72999-67H00-000 |
from US $4.32 |
||
|
20
|
20
02162-06123-000
Bolt (6x12)
B; 2002-11-01~2003-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
20
|
20
02162-0612B-000 SCREWBolt B; 2002-11-01~2003-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
20
|
20
02162-0612A-000 SCREWBolt, bracket B; 2002-11-01~2003-10-01 |
02162-0612A-000 |
from US $0.80 |
||
