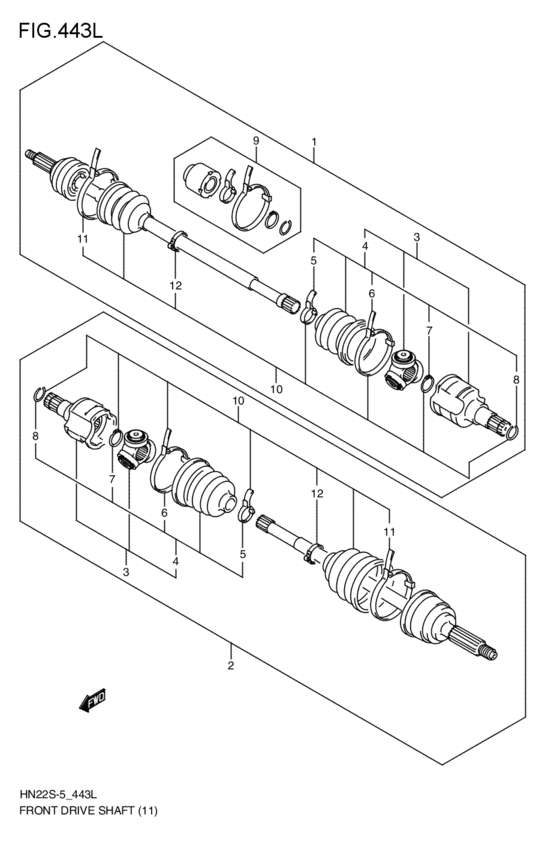

front-drive shaft (NSK,ABSシヨウ,200202 マデ; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01) Diagram Suzuki KEI/SWIFT
- Year
- 2001 - 2002
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- E
- abs
- ABS
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-76G11-000
シャフトアッシ,フロントドライブ,ライト
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44101-76G11-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-75H16-000 SHAFT ASSY,FRONT DRIVE,RNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44101-75H16-000 |
US $566.72 |
||
|
2
|
2
44102-76G11-000
シャフトアッシ,フロントドライブ,レフト
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44102-76G11-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-75H15-000 SHAFT ASSY,FRONT DRIVE,LNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44102-75H15-000 |
US $535.04 |
||
|
3
|
3
44114-76G00-000
ジョイントアッシ,ディファレンシャルサイド
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44114-76G00-000 |
— | ||
|
4
|
4
44119-60DA1-000
ブーツセット,ディファレンシャルサイド
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44119-60DA1-000 |
— | ||
|
5
|
5
44124-84040-000 BAND,BOOTNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44124-84040-000 |
US $9.68 |
||
|
6
|
6
44122-84040-000 BAND,BOOTNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44122-84040-000 |
US $8.87 |
||
|
7
|
7
44111-71B20-000 RING,SNAPNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44111-71B20-000 |
US $4.45 |
||
|
8
|
8
09381-24001-000 RING,SNAPRing (od:24,d:1.6) NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
09381-24001-000 |
from US $1.60 |
||
|
9
|
9
44411-76G10-000
ダンパセット
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44411-76G10-000 |
— | ||
|
10
|
10
44118-76G51-000 BOOT SET,WHEEL SIDENSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44118-76G51-000 |
US $101.57 |
||
|
11
|
11
44122-54G50-000 BAND,BOOTNSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44122-54G50-000 |
US $8.87 |
||
|
12
|
12
44124-76G01-000
バンド,ブーツ
NSK; 2WD:AT:4V:(E,MM):ABS; 2001-11-01~2002-02-01 |
44124-76G01-000 |
— | ||
