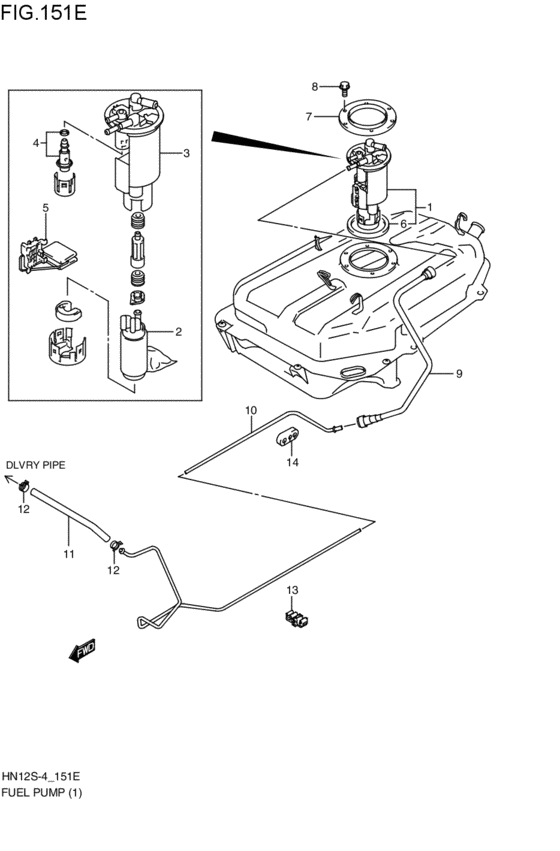

Fuel Pump (4V; 2001-03-01~2001-12-01) Diagram Suzuki KEI/SWIFT
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- K6A
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- M
- air bag
- AB
- abs
- ABS
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78822-000
ポンプセット,フューエル
4V; 2001-03-01~2001-12-01 |
15100-78822-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-78825-000
ポンプセット,フューエル
4V; 2001-03-01~2001-12-01 |
15100-78825-000 |
— | ||
|
2
|
2
15110-78G01-000
ポンプセット,フューエル
4V; 2001-03-01~2001-12-01 |
15110-78G01-000 |
— | ||
| replacement | |||||
|
2
|
2
15110-73H11-000
ポンプアッシ,フューエル
4V; 2001-03-01~2001-12-01 |
15110-73H11-000 |
— | ||
|
3
|
3
15310-78G01-000
フィルタアッシ,フューエル
4V; 2001-03-01~2001-12-01 |
15310-78G01-000 |
— | ||
| replacement | |||||
|
3
|
3
15310-78G02-000 FILTER ASSY,FUEL4V; 2001-03-01~2001-12-01 |
15310-78G02-000 |
US $176.27 |
||
|
4
|
4
15610-78G01-000 REGULATOR ASSY,FUEL4V; 2001-03-01~2001-12-01 |
15610-78G01-000 |
US $214.40 |
||
|
5
|
5
34810-78G00-000
ゲージアッシ,フューエルレベル
4V; 2001-03-01~2001-12-01 |
34810-78G00-000 |
— | ||
|
6
|
6
15111-75F00-000
Gasket
4V; 2001-03-01~2001-12-01 |
15111-75F00-000 |
— | ||
| replacement | |||||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP4V; 2001-03-01~2001-12-01 |
15111-75F01-000 |
US $9.12 |
||
|
7
|
7
15121-83G00-000
プレート,フューエルポンプ
4V; 2001-03-01~2001-12-01 |
15121-83G00-000 |
— | ||
| replacements | |||||
|
7
|
7
15111-75F01-000 GASKET,FUEL PUMP4V; 2001-03-01~2001-12-01 |
15111-75F01-000 |
US $9.12 |
||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP4V; 2001-03-01~2001-12-01 |
15121-75F01-000 |
US $9.75 |
||
|
8
|
8
02162-06103-000
Bolt
4V; 2001-03-01~2001-12-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW4V; 2001-03-01~2001-12-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15812-76G01-000
Pipe, fuel (pump to pipe)
ポンプツーパイプ; 4V; 2001-03-01~2001-12-01 |
15812-76G01-000 |
— | ||
| replacement | |||||
|
9
|
9
15812-76G03-000 PIPE,FUEL PUMP TO PIPEポンプツーパイプ; 4V; 2001-03-01~2001-12-01 |
15812-76G03-000 |
US $81.32 |
||
|
10
|
10
15811-76G10-000
パイプ,フューエル
4V; 2001-03-01~2001-12-01 |
15811-76G10-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-76G11-000 PIPE,FUEL4V; 2001-03-01~2001-12-01 |
15811-76G11-000 |
US $51.52 |
||
|
11
|
11
15815-83G00-000
ホース,フューエル(パイプツーエンジン)
パイプツーエンジン; 4V; 2001-03-01~2001-12-01 |
15815-83G00-000 |
— | ||
| replacements | |||||
|
11
|
11
09401-13419-000 CLIPパイプツーエンジン; 4V; 2001-03-01~2001-12-01 |
09401-13419-000 |
from US $1.60 |
||
|
11
|
11
15815-83G20-000 HOSE,FUELパイプツーエンジン; 4V; 2001-03-01~2001-12-01 |
15815-83G20-000 |
US $82.40 |
||
|
12
|
12
09401-11420-000 CLIP4V; 2001-03-01~2001-12-01 |
09401-11420-000 |
US $1.52 |
||
|
13
|
13
15893-83G00-000
クランプ,フューエルパイプ
4V; 2001-03-01~2001-12-01 |
15893-83G00-000 |
— | ||
| replacement | |||||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPE4V; 2001-03-01~2001-12-01 |
15893-83G01-000 |
US $1.52 |
||
|
14
|
14
15438-76G00-000 CUSHION,FUEL PIPE4V; 2001-03-01~2001-12-01 |
15438-76G00-000 |
US $6.69 |
||
