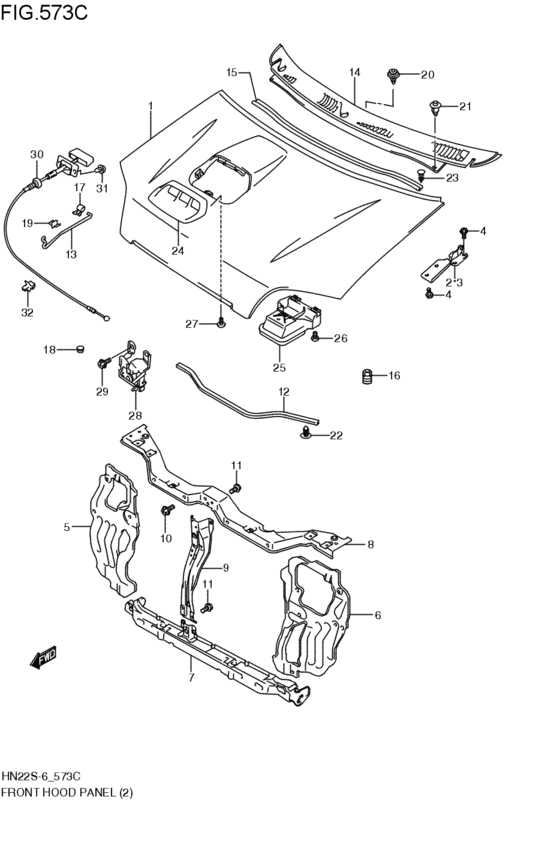

front hood (TURBO; 2002-11-01~2003-10-01) Diagram Suzuki KEI/SWIFT
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57300-74G12-000 PANEL ASSY,FRONT HOODTURBO; 2002-11-01~2003-10-01 |
57300-74G12-000 |
US $382.72 |
||
|
2
|
2
57410-84G00-000 HINGE,FR HOOD,RTURBO; 2002-11-01~2003-10-01 |
57410-84G00-000 |
US $52.80 |
||
|
3
|
3
57420-84G00-000 HINGE,FR HOOD,LTURBO; 2002-11-01~2003-10-01 |
57420-84G00-000 |
US $52.80 |
||
|
4
|
4
02162-06163-000
Screw
TURBO; 2002-11-01~2003-10-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust TURBO; 2002-11-01~2003-10-01 |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
58111-82GV0-000 PANEL,LAMP SUPPORT,RTURBO; 2002-11-01~2003-10-01 |
58111-82GV0-000 |
US $62.93 |
||
|
6
|
6
58131-82GV0-000
パネル,ランプサポート,レフト
TURBO; 2002-11-01~2003-10-01 |
58131-82GV0-000 |
— | ||
| replacement | |||||
|
6
|
6
58131-82GV1-000 PANEL,LAMP SUPPORT,LTURBO; 2002-11-01~2003-10-01 |
58131-82GV1-000 |
US $62.93 |
||
|
7
|
7
58210-84G00-000
クロスメンバ,フロント,ロア
TURBO; 2002-11-01~2003-10-01 |
58210-84G00-000 |
— | ||
| replacement | |||||
|
7
|
7
58210-84G02-000 CROSSMEMBER,FR LOWERTURBO; 2002-11-01~2003-10-01 |
58210-84G02-000 |
US $173.70 |
||
|
8
|
8
58230-74G00-000 MEMBER,HOOD LOCKTURBO; 2002-11-01~2003-10-01 |
58230-74G00-000 |
US $127.33 |
||
|
9
|
9
58241-84G00-000 BRACE,HOOD LOCKTURBO; 2002-11-01~2003-10-01 |
58241-84G00-000 |
US $26.13 |
||
|
10
|
10
09132-05049-000 SCREW(5X12)TURBO; 2002-11-01~2003-10-01 |
09132-05049-000 |
US $12.90 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
TURBO; 2002-11-01~2003-10-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt TURBO; 2002-11-01~2003-10-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket TURBO; 2002-11-01~2003-10-01 |
02162-0612A-000 |
from US $0.80 |
||
|
12
|
12
72151-76G01-000 SEAL,HOOD FRTURBO; 2002-11-01~2003-10-01 |
72151-76G01-000 |
US $32.38 |
||
|
13
|
13
72311-50E00-000 STAY,FRONT HOODTURBO; 2002-11-01~2003-10-01 |
72311-50E00-000 |
US $12.14 |
||
|
14
|
14
72331-74G00-5PK GARNISH,COWL TOPブラック; TURBO; 2002-11-01~2003-10-01 |
72331-74G00-5PK |
US $100.46 |
||
|
15
|
15
72341-76G00-000 SEAL,HOOD RRTURBO; 2002-11-01~2003-10-01 |
72341-76G00-000 |
US $30.54 |
||
|
16
|
16
72372-82000-000 CUSHION,BACK DR SIDECushion TURBO; 2002-11-01~2003-10-01 |
72372-82000-000 |
from US $1.96 |
||
|
17
|
17
09209-09007-000 LINKAGEConnector TURBO; 2002-11-01~2003-10-01 |
09209-09007-000 |
from US $1.64 |
||
|
18
|
18
09321-10023-000 CUSHIONTURBO; 2002-11-01~2003-10-01 |
09321-10023-000 |
from US $1.82 |
||
|
19
|
19
09403-07311-000 CLAMPTURBO; 2002-11-01~2003-10-01 |
09403-07311-000 |
from US $0.95 |
||
|
20
|
20
09409-08320-000 CLIPTURBO; 2002-11-01~2003-10-01 |
09409-08320-000 |
from US $1.15 |
||
|
21
|
21
09409-07019-5PK CLIP(BLACK)ブラック; TURBO; 2002-11-01~2003-10-01 |
09409-07019-5PK |
US $1.60 |
||
|
22
|
22
09409-10304-5ES CLIP(BLACK)ブラック; TURBO; 2002-11-01~2003-02-01 |
09409-10304-5ES |
US $1.28 |
||
|
22
|
22
09409-05308-5PK CLIP(BLACK)ブラック; TURBO; 2003-02-01~2003-10-01 |
09409-05308-5PK |
from US $1.42 |
||
|
23
|
23
09409-10304-5ES CLIP(BLACK)ブラック; TURBO; 2002-11-01~2003-10-01 |
09409-10304-5ES |
US $1.28 |
||
|
24
|
24
72411-74G00-000 GRILLE,AIR SCOOPキジショク; TURBO; 2002-11-01~2003-10-01 |
72411-74G00-000 |
US $53.73 |
||
|
25
|
25
72420-82G10-000 GUIDE,HOOD AIRTURBO; 2002-11-01~2003-10-01 |
72420-82G10-000 |
US $58.51 |
||
|
26
|
26
03242-05123-000
Screw, inner cover
TURBO; 2002-11-01~2003-10-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
26
|
26
03241-0512A-000 SCREWTURBO; 2002-11-01~2003-10-01 |
03241-0512A-000 |
from US $0.68 |
||
|
27
|
27
03242-05123-000
Screw, inner cover
TURBO; 2002-11-01~2003-10-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0512A-000 SCREWTURBO; 2002-11-01~2003-10-01 |
03241-0512A-000 |
from US $0.68 |
||
|
28
|
28
82110-74G10-000 LATCH,HOODTURBO; 2002-11-01~2003-10-01 |
82110-74G10-000 |
US $43.79 |
||
|
29
|
29
02162-06163-000
Screw
TURBO; 2002-11-01~2003-10-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
29
|
29
02162-0616B-000 SCREWBolt, adjust TURBO; 2002-11-01~2003-10-01 |
02162-0616B-000 |
from US $0.80 |
||
|
30
|
30
82160-84G00-000 CABLE,HOOD LATCH RELEASETURBO; 2002-11-01~2003-10-01 |
82160-84G00-000 |
US $23.55 |
||
|
31
|
31
09409-07308-5PK CLIP(BLACK)ブラック; TURBO; 2002-11-01~2003-10-01 |
09409-07308-5PK |
from US $1.04 |
||
|
32
|
32
09403-04401-000 CLAMPTURBO; 2002-11-01~2003-10-01 |
09403-04401-000 |
US $9.90 |
||
