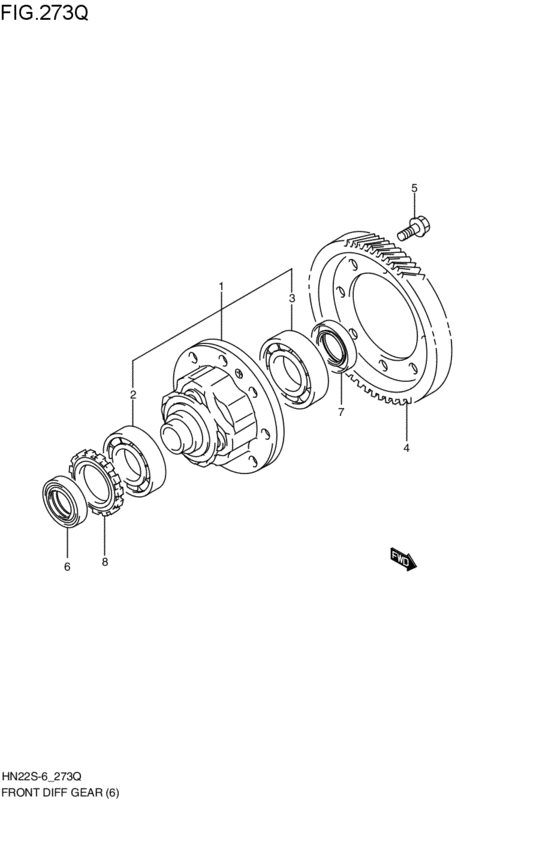

フロントデファレンシャルギヤ (2WD:MT:TURBO:S; 2002-11-01~2003-10-01) Diagram Suzuki KEI/SWIFT
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27400-78810-000
LSD SET
2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
27400-78810-000 |
— | ||
|
2
|
2
09262-35070-000 BEARING(35X62X14)2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
09262-35070-000 |
from US $23.20 |
||
|
3
|
3
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) 2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
09262-35038-000 |
from US $22.04 |
||
|
4
|
4
27511-78G00-000 GEAR,FINAL2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
27511-78G00-000 |
US $217.12 |
||
|
5
|
5
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
09103-10189-000 |
from US $2.40 |
||
|
6
|
6
09283-40028-000 SEAL,OIL(40X58X9.6)2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
09283-40028-000 |
from US $10.08 |
||
|
7
|
7
09283-40029-000 SEAL,OIL(40X62X8)2WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
09283-40029-000 |
from US $12.83 |
||
|
8
|
8
26121-76G10-000 RING,EXCITER T:8 ID:452WD:MT:TURBO:S; 2002-11-01~2003-10-01 |
26121-76G10-000 |
US $25.21 |
