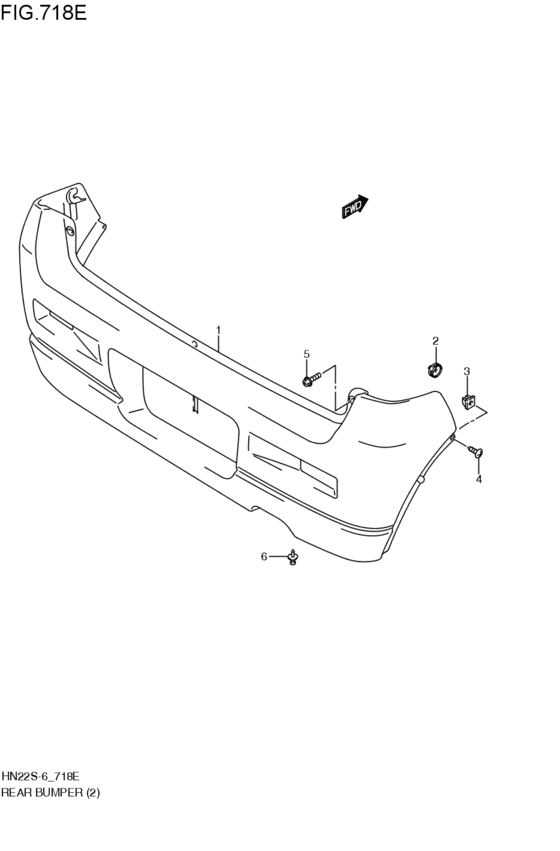

rear bumper (S; 2002-11-01~2003-10-01) Diagram Suzuki KEI/SWIFT
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-82G00-Z7T バンパ,リヤ(ホワイト)ホワイト; S; 2002-11-01~2003-10-01 |
71811-82G00-Z7T |
US $485.76 |
||
|
1
|
1
71811-82G00-799 BUMPER,RR(PRIMARY)プライマリ-; S; 2002-11-01~2003-10-01 |
71811-82G00-799 |
US $464.64 |
||
|
2
|
2
71712-82G00-000 CLIP,BUMPER SIDE UPPERS; 2002-11-01~2003-10-01 |
71712-82G00-000 |
US $1.60 |
||
|
3
|
3
09148-06007-000 NUTS; 2002-11-01~2003-10-01 |
09148-06007-000 |
from US $0.88 |
||
|
4
|
4
03242-06163-000
Screw
S; 2002-11-01~2003-10-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0616C-000 SCREWS; 2002-11-01~2003-10-01 |
03241-0616C-000 |
from US $0.76 |
||
|
5
|
5
02162-06163-000
Screw
S; 2002-11-01~2003-10-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust S; 2002-11-01~2003-10-01 |
02162-0616B-000 |
from US $0.80 |
||
|
6
|
6
09409-08327-000 CLIPS; 2002-11-01~2003-10-01 |
09409-08327-000 |
from US $1.17 |
||
