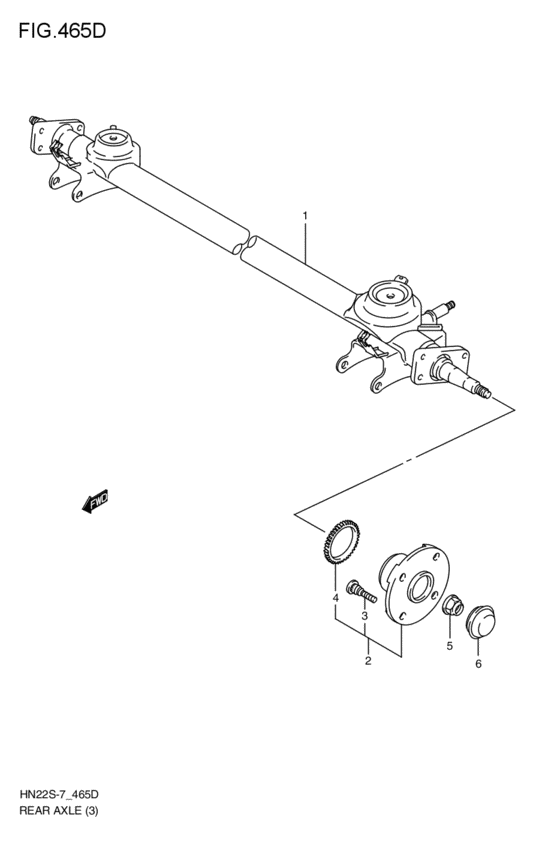

rear axle (2WD:S; 2003-08-01~2004-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46510-78G51-000 AXLE ASSY,RR2WD:S; 2003-08-01~2004-05-01 |
46510-78G51-000 |
US $404.80 |
||
|
2
|
2
43402-77A70-000
ハブアッシ,リヤホイール
2WD:S; 2003-08-01~2004-05-01 |
43402-77A70-000 |
— | ||
| replacement | |||||
|
2
|
2
43402-77A21-000 HUB ASSY,RR WHL2WD:S; 2003-08-01~2004-05-01 |
43402-77A21-000 |
US $207.92 |
||
|
3
|
3
09119-12012-000 BOLT(12X38)2WD:S; 2003-08-01~2004-05-01 |
09119-12012-000 |
from US $1.26 |
||
|
4
|
4
56451-76G00-000 RING,RR WHEEL SENSOR2WD:S; 2003-08-01~2004-05-01 |
56451-76G00-000 |
US $48.58 |
||
|
5
|
5
09159-18017-000
Nut
2WD:S; 2003-08-01~2004-05-01 |
09159-18017-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-18026-000 NUT2WD:S; 2003-08-01~2004-05-01 |
09159-18026-000 |
from US $3.33 |
||
|
6
|
6
43241-79001-000
Cap, spindle
2WD:S; 2003-08-01~2004-05-01 |
43241-79001-000 |
— | ||
| replacement | |||||
|
6
|
6
43241-79002-000 CAP,SPINDLE2WD:S; 2003-08-01~2004-05-01 |
43241-79002-000 |
US $5.92 |
||
