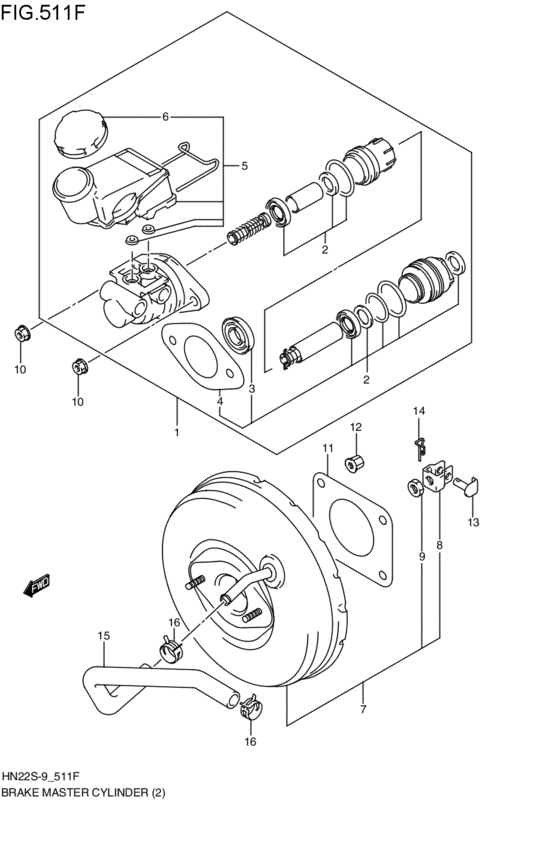

brakes master cylinder (ABSシヨウ; ABS; 2006-03-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-80G61-000 CYLINDER ASSY,BRAKE MASTERABS; 2006-03-01~2007-06-01 |
51100-80G61-000 |
US $266.80 |
||
|
2
|
2
51810-76F20-000 PISTON SET,BRAKE MASTERABS; 2006-03-01~2007-06-01 |
51810-76F20-000 |
US $95.76 |
||
|
3
|
3
51311-76F20-000 SEAL,BRAKE MASTER CYLINDERABS; 2006-03-01~2007-06-01 |
51311-76F20-000 |
US $19.50 |
||
|
4
|
4
51312-76F20-000 GASKET,BRAKE MASTER CYLINDERABS; 2006-03-01~2007-06-01 |
51312-76F20-000 |
US $6.11 |
||
|
5
|
5
51200-80G00-000 RESERVOIR ASSY,MASTER CYLINDERABS; 2006-03-01~2007-06-01 |
51200-80G00-000 |
US $100.46 |
||
|
6
|
6
51220-75F51-000
Cap,reservoir
ABS; 2006-03-01~2007-06-01 |
51220-75F51-000 |
— | ||
| replacement | |||||
|
6
|
6
51220-77M00-000 CAP,RESERVOIRABS; 2006-03-01~2007-06-01 |
51220-77M00-000 |
US $20 |
||
|
7
|
7
51300-76F71-000
ブースタアッシ,ブレーキマスタ
ABS:MT; 2006-10-01~2007-06-01 |
51300-76F71-000 |
— | ||
|
7
|
7
51300-76F70-000
BOOSTER ASSY,BRAKE MASTER
ABS:MT; 2006-03-01~2006-10-01 |
51300-76F70-000 |
— | ||
|
8
|
8
51182-60D10-000 CLEVIS,CYLINDER PUSH RODABS; 2006-03-01~2007-06-01 |
51182-60D10-000 |
US $14.32 |
||
|
9
|
9
08316-1010B-000 NUTABS; 2006-03-01~2007-06-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
09159-08075-000 NUTABS; 2006-03-01~2007-06-01 |
09159-08075-000 |
US $0.91 |
||
|
11
|
11
51132-82003-000 PACKING,BRAKE MASTER CYLINDERABS; 2006-03-01~2007-06-01 |
51132-82003-000 |
US $1.60 |
||
|
12
|
12
09159-08127-000 NUTABS; 2006-03-01~2007-06-01 |
09159-08127-000 |
US $9.90 |
||
|
13
|
13
09200-08069-000 PINABS; 2006-03-01~2007-06-01 |
09200-08069-000 |
US $21.70 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip ABS; 2006-03-01~2007-06-01 |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
51010-58J10-000
ホース,ブレーキバキューム
ABS; 2006-10-01~2007-06-01 |
51010-58J10-000 |
— | ||
|
15
|
15
51010-76F10-000 HOSE,BRAKE VACUUMABS; 2006-03-01~2006-10-01 |
51010-76F10-000 |
US $42.69 |
||
|
16
|
16
09401-15404-000 CLIPABS; 2006-03-01~2007-06-01 |
09401-15404-000 |
from US $1.04 |
||
