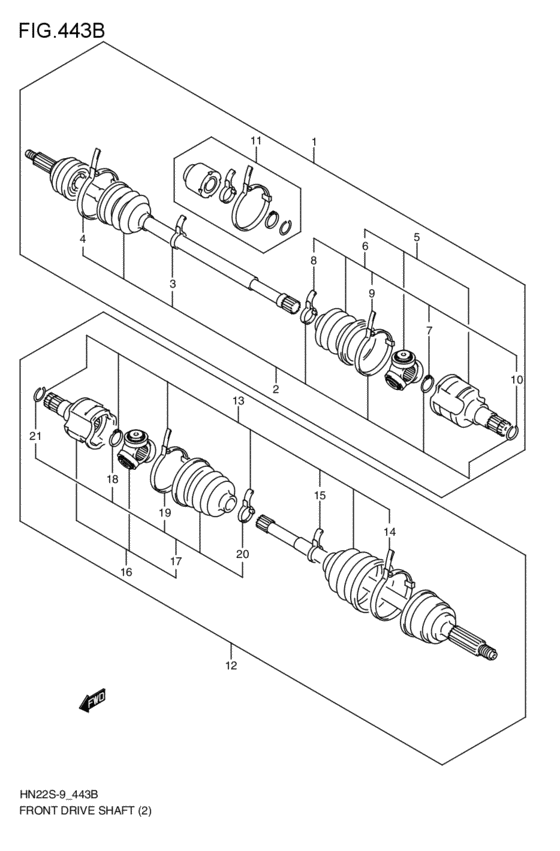

front-drive shaft (2WD:MT:TURBO; 2006-03-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-78G20-000
シャフトアッシ,フロントドライブ,ライト
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44101-78G20-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-78G24-000 SHAFT ASSY,FRONT DRIVE,R2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44101-78G24-000 |
US $587.84 |
||
|
1
|
1
44101-78G21-000
シャフトアッシ,フロントドライブライト
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44101-78G21-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-78G24-000 SHAFT ASSY,FRONT DRIVE,R2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44101-78G24-000 |
US $587.84 |
||
|
2
|
2
44118-76G10-000
BOOT SET,WHEEL SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44118-76G10-000 |
— | ||
| replacement | |||||
|
2
|
2
44118-76GD0-000 BOOT SET,WHEEL SIDE2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44118-76GD0-000 |
US $81.33 |
||
|
2
|
2
44118-76G11-000
ブーツセット,ホイールサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44118-76G11-000 |
— | ||
| replacement | |||||
|
2
|
2
44118-76G12-000
New Genuine Part
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44118-76G12-000 |
— | ||
|
3
|
3
44124-86011-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44124-86011-000 |
US $6.81 |
||
|
4
|
4
44222-51F00-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44222-51F00-000 |
US $10.23 |
||
|
5
|
5
44117-76G70-000
JOINT ASSY,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44117-76G70-000 |
— | ||
| replacement | |||||
|
5
|
5
44117-76GN0-000
JOINT ASSY,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44117-76GN0-000 |
— | ||
|
5
|
5
44117-76G71-000
ジョイントアッシ,ディファレンシャルサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44117-76G71-000 |
— | ||
| replacement | |||||
|
5
|
5
44117-76G72-000
New Genuine Part
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44117-76G72-000 |
— | ||
|
6
|
6
44119-76G30-000
BOOT SET,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44119-76G30-000 |
— | ||
| replacement | |||||
|
6
|
6
44119-76GD0-000 BOOT SET,DIFF SIDE2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44119-76GD0-000 |
US $69.92 |
||
|
6
|
6
44119-76G31-000
ブーツセット,ディファレンシャルサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44119-76G31-000 |
— | ||
| replacement | |||||
|
6
|
6
44119-76GE0-000
New Genuine Part
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44119-76GE0-000 |
— | ||
|
7
|
7
44111-64B90-000 RING,SNAP2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44111-64B90-000 |
US $2.80 |
||
|
8
|
8
44124-86011-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44124-86011-000 |
US $6.81 |
||
|
9
|
9
44121-60B00-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44121-60B00-000 |
US $8.80 |
||
|
10
|
10
44112-58JA0-000 CIRCLIP2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44112-58JA0-000 |
US $3.97 |
||
|
10
|
10
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 2WD:MT:TURBO; 2006-03-01~2007-02-01 |
09381-24001-000 |
from US $1.60 |
||
|
11
|
11
44411-78G00-000
DAMPER SET
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44411-78G00-000 |
— | ||
| replacement | |||||
|
11
|
11
44411-78GC0-000 DAMPER SET2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44411-78GC0-000 |
US $87.22 |
||
|
11
|
11
44411-78G01-000
ダンパセット
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44411-78G01-000 |
— | ||
|
12
|
12
44102-84H00-000
シャフトアッシ,フロントドライブ,レフト
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44102-84H00-000 |
— | ||
| replacement | |||||
|
12
|
12
44102-84H04-000 SHAFT ASSY,FRONT DRIVE,L2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44102-84H04-000 |
US $538.56 |
||
|
12
|
12
44102-84H01-000
シャフトアッシ,フロントドライブレフト
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44102-84H01-000 |
— | ||
| replacement | |||||
|
12
|
12
44102-84H04-000 SHAFT ASSY,FRONT DRIVE,L2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44102-84H04-000 |
US $538.56 |
||
|
13
|
13
44118-76G10-000
BOOT SET,WHEEL SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44118-76G10-000 |
— | ||
| replacement | |||||
|
13
|
13
44118-76GD0-000 BOOT SET,WHEEL SIDE2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44118-76GD0-000 |
US $81.33 |
||
|
13
|
13
44118-76G11-000
ブーツセット,ホイールサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44118-76G11-000 |
— | ||
| replacement | |||||
|
13
|
13
44118-76G12-000
New Genuine Part
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44118-76G12-000 |
— | ||
|
14
|
14
44222-51F00-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44222-51F00-000 |
US $10.23 |
||
|
15
|
15
44124-86011-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44124-86011-000 |
US $6.81 |
||
|
16
|
16
44117-76G31-000
ジョイントアッシ,ディファレンシャルサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44117-76G31-000 |
— | ||
|
16
|
16
44117-76G70-000
JOINT ASSY,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44117-76G70-000 |
— | ||
| replacement | |||||
|
16
|
16
44117-76GN0-000
JOINT ASSY,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44117-76GN0-000 |
— | ||
|
17
|
17
44119-76G30-000
BOOT SET,DIFF SIDE
2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44119-76G30-000 |
— | ||
| replacement | |||||
|
17
|
17
44119-76GD0-000 BOOT SET,DIFF SIDE2WD:MT:TURBO; 2006-03-01~2007-02-01 |
44119-76GD0-000 |
US $69.92 |
||
|
17
|
17
44119-76G31-000
ブーツセット,ディファレンシャルサイド
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44119-76G31-000 |
— | ||
| replacement | |||||
|
17
|
17
44119-76GE0-000
New Genuine Part
2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44119-76GE0-000 |
— | ||
|
18
|
18
44111-64B90-000 RING,SNAP2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44111-64B90-000 |
US $2.80 |
||
|
19
|
19
44121-60B00-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44121-60B00-000 |
US $8.80 |
||
|
20
|
20
44124-86011-000 BAND,BOOT2WD:MT:TURBO; 2006-03-01~2007-06-01 |
44124-86011-000 |
US $6.81 |
||
|
21
|
21
44112-58JA0-000 CIRCLIP2WD:MT:TURBO; 2007-02-01~2007-06-01 |
44112-58JA0-000 |
US $3.97 |
||
|
21
|
21
09381-24001-000 RING,SNAPRing (od:24,d:1.6) 2WD:MT:TURBO; 2006-03-01~2007-02-01 |
09381-24001-000 |
from US $1.60 |
||
