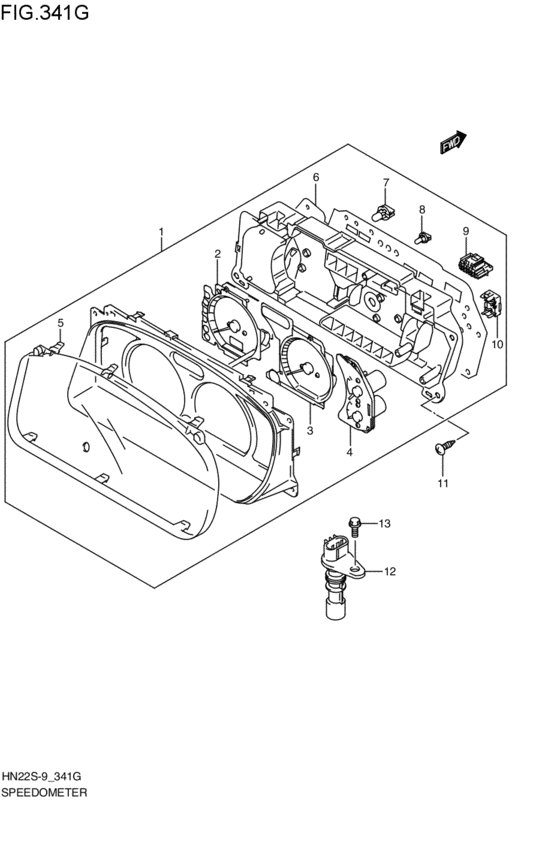

speed meter (2006-03-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- MT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-83G60-000
スピードメータアッシ,コンビネーション
S:MT; 2006-03-01~2007-06-01 |
34100-83G60-000 |
— | ||
|
2
|
2
34120-83G10-000
ボディアッシ,スピードメータ
S; 2006-03-01~2007-06-01 |
34120-83G10-000 |
— | ||
|
3
|
3
34220-83G20-000
ボディアッシ,タコメータ
S; 2006-03-01~2007-06-01 |
34220-83G20-000 |
— | ||
|
4
|
4
34320-83H10-000 BODY ASSY,FUEL METERS; 2006-03-01~2007-06-01 |
34320-83H10-000 |
US $123.65 |
||
|
5
|
5
34112-81A00-000 GLASS,METER WINDOW2006-03-01~2007-06-01 |
34112-81A00-000 |
US $37.60 |
||
|
6
|
6
34152-83G20-000
プレート,プリンテッド
S:MT; 2006-03-01~2007-06-01 |
34152-83G20-000 |
— | ||
|
7
|
7
34171-70G00-000 BULB,14V 3.4W G202006-03-01~2007-06-01 |
34171-70G00-000 |
US $6.59 |
||
|
8
|
8
34171-70G10-000 BULB,14V 1.4W2006-03-01~2007-06-01 |
34171-70G10-000 |
from US $2.59 |
||
|
9
|
9
34191-65D00-000 BUZZER ASSY,WARNING2006-03-01~2007-06-01 |
34191-65D00-000 |
US $60.35 |
||
|
10
|
10
34155-82DG0-000 CIRCUIT,ABS WARNINGABS ウオーニング; ABS; 2006-03-01~2007-06-01 |
34155-82DG0-000 |
US $30.54 |
||
|
11
|
11
03541-0516A-000 SCREW2006-03-01~2007-06-01 |
03541-0516A-000 |
from US $0.68 |
||
|
12
|
12
34960-65G00-000 SENSOR ASSY,SPEED2006-03-01~2007-06-01 |
34960-65G00-000 |
US $151.62 |
||
|
13
|
13
01550-0616A-000 BOLT2006-03-01~2007-06-01 |
01550-0616A-000 |
from US $0.76 |
