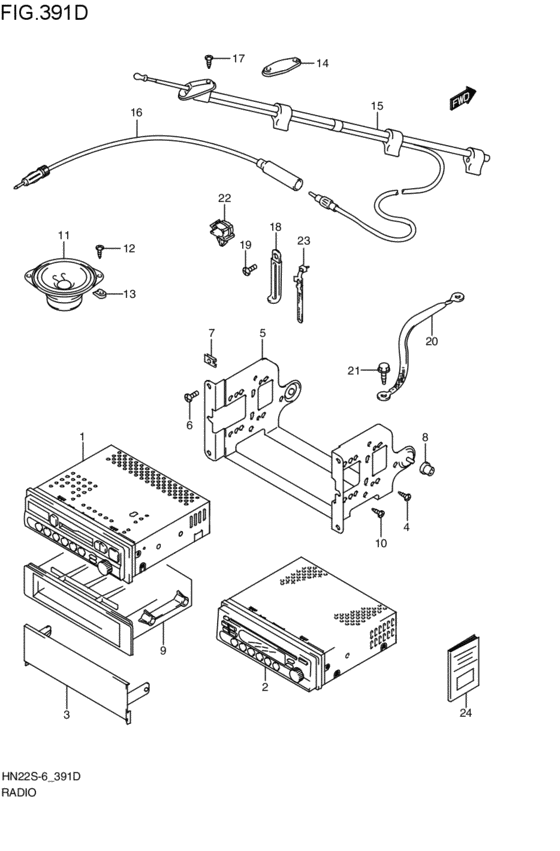

radio (2002-11-01~2003-10-01) Diagram Suzuki KEI/SWIFT
- Year
- 2002 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
39161-74G00-000 COVER,RADIO HOLEB,D,S; 2002-11-01~2003-10-01 |
39161-74G00-000 |
US $8.65 |
||
|
5
|
5
39321-54G03-000 BRACKET,TUNER2002-11-01~2003-10-01 |
39321-54G03-000 |
US $11.74 |
||
|
6
|
6
03541-05163-000
Screw
2002-11-01~2003-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW2002-11-01~2003-10-01 |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
09148-05045-000 NUT2002-11-01~2003-10-01 |
09148-05045-000 |
from US $0.81 |
||
|
8
|
8
34955-54G10-000 BUSH,RADIO BRKT2002-11-01~2003-10-01 |
34955-54G10-000 |
US $1.44 |
||
|
9
|
9
39182-70E50-000
ポケット,チューナ
2002-11-01~2003-10-01 |
39182-70E50-000 |
— | ||
| replacement | |||||
|
9
|
9
39182-70E51-000 POCKET,TUNER2002-11-01~2003-10-01 |
39182-70E51-000 |
US $20 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
2002-11-01~2003-10-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW2002-11-01~2003-10-01 |
03241-0512A-000 |
from US $0.68 |
||
|
14
|
14
39262-76G00-000 COVER,ANT HOLEB,D,S; 2002-11-01~2003-10-01 |
39262-76G00-000 |
US $16.67 |
||
|
17
|
17
09125-04033-000
スクリュ,4X16
2002-11-01~2003-10-01 |
09125-04033-000 |
— | ||
| replacement | |||||
|
17
|
17
09129-04003-000 SCREW(4X12)2002-11-01~2003-10-01 |
09129-04003-000 |
US $15.10 |
||
|
18
|
18
09404-06431-000
CLAMP(L:65)
2002-11-01~2003-10-01 |
09404-06431-000 |
— | ||
| replacements | |||||
|
18
|
18
09404-06432-000
CLAMP(L:65)
2002-11-01~2003-10-01 |
09404-06432-000 |
— | ||
|
18
|
18
09404-06039-000 Clamp(L:65)2002-11-01~2003-10-01 |
09404-06039-000 |
from US $1.82 |
||
|
18
|
18
09404-06038-000 Clamp(L:65)2002-11-01~2003-10-01 |
09404-06038-000 |
from US $2.40 |
||
|
19
|
19
03541-05123-000
Screw
2002-11-01~2003-10-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03541-0512B-000 SCREW2002-11-01~2003-10-01 |
03541-0512B-000 |
from US $0.76 |
||
|
20
|
20
39312-76G10-000 WIRE,NOISE SUPPRTURBO; 2002-11-01~2003-10-01 |
39312-76G10-000 |
US $6.29 |
||
|
21
|
21
09115-06001-000
Bolt, lh
2002-11-01~2003-10-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
21
|
21
09115-06005-000 BOLT(6X16)2002-11-01~2003-10-01 |
09115-06005-000 |
US $1.28 |
||
|
23
|
23
09407-10402-000 CLAMP(L:100)Clamp (l:100) S; 2002-11-01~2003-10-01 |
09407-10402-000 |
from US $1.47 |
||
