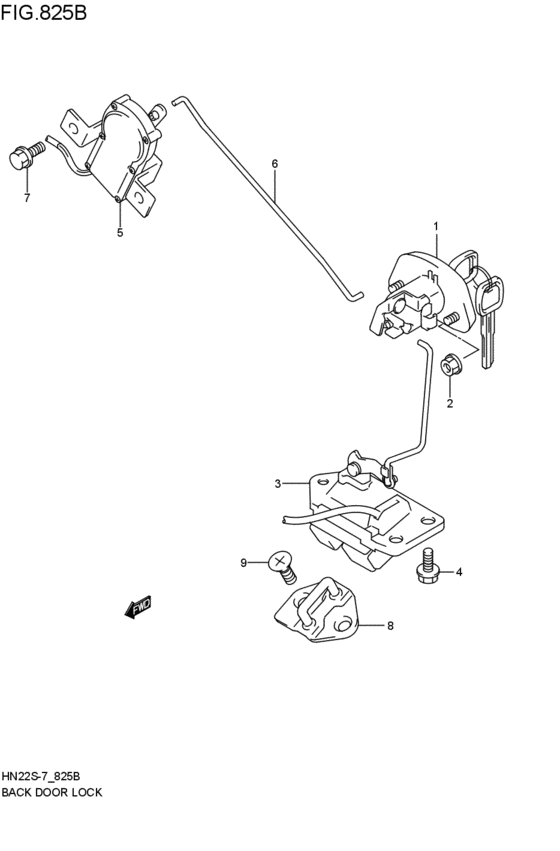

back door lock (2003-08-01~2004-05-01) Diagram Suzuki KEI/SWIFT
- Year
- 2003 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
- vst
- VST-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-74860-ZJ3 CYLINDER ASSY,BACK DR LOCKブラック; E,ES,S; 2003-08-01~2004-05-01 |
82500-74860-ZJ3 |
US $121.44 |
||
|
1
|
1
82500-74860-ZY4 CYLINDER ASSY,BACK DR LOCKグレ-; S; 2003-08-01~2004-05-01 |
82500-74860-ZY4 |
US $121.44 |
||
|
1
|
1
82500-74860-Z7T CYLINDER ASSY,BACK DR LOCKパールホワイト; E,ES,S; 2003-08-01~2004-05-01 |
82500-74860-Z7T |
US $121.44 |
||
|
1
|
1
82500-74860-Z9T
CYLINDER ASSY,BACK DR LOCK
レッド; S; 2003-08-01~2004-05-01 |
82500-74860-Z9T |
— | ||
| replacement | |||||
|
1
|
1
82500-74860-5PK CYLINDER ASSY,BACK DR LOCKレッド; S; 2003-08-01~2004-05-01 |
82500-74860-5PK |
US $87.22 |
||
|
2
|
2
08316-10063-000
Nut
2003-08-01~2004-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1006B-000 NUT2003-08-01~2004-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
82510-74G01-000 LATCH ASSY,BACK DR2003-08-01~2004-05-01 |
82510-74G01-000 |
US $75.07 |
||
|
4
|
4
02162-06163-000
Screw
2003-08-01~2004-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2003-08-01~2004-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH2003-08-01~2004-05-01 |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-74G00-000 ROD,BACK DOOR ACTUATOR2003-08-01~2004-05-01 |
82555-74G00-000 |
US $4.75 |
||
|
7
|
7
02162-06163-000
Screw
2003-08-01~2004-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2003-08-01~2004-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
82610-60D00-000 STRIKER,DOOR LATCH2003-08-01~2004-05-01 |
82610-60D00-000 |
US $12.51 |
||
|
9
|
9
09137-08006-000
Screw
2003-08-01~2004-05-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
9
|
9
09137-08011-000 SCREW(8X18)2003-08-01~2004-05-01 |
09137-08011-000 |
US $1.44 |
||
|
9
|
9
09137-08004-000 SCREW(8X18)2003-08-01~2004-05-01 |
09137-08004-000 |
from US $0.90 |
||
