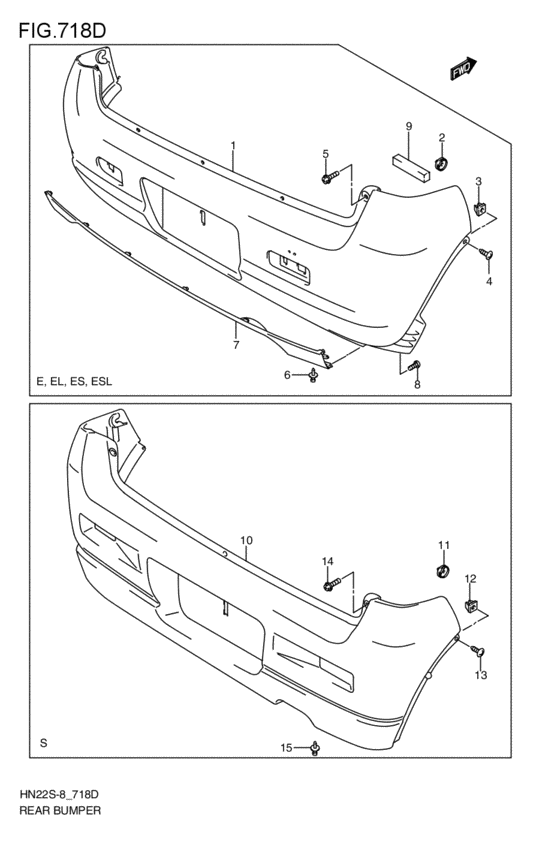

rear bumper (2004-04-01~2005-12-01) Diagram Suzuki KEI/SWIFT
- Year
- 2004 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
71811-82G00-Z7T バンパ,リヤ(ホワイト)パールホワイト; S; 2004-04-01~2005-12-01 |
71811-82G00-Z7T |
US $485.76 |
||
|
10
|
10
71811-82G00-799 BUMPER,RR(PRIMARY)プライマリ-; S; 2004-04-01~2005-12-01 |
71811-82G00-799 |
US $464.64 |
||
|
11
|
11
71712-82G00-000 CLIP,BUMPER SIDE UPPERS; 2004-04-01~2005-12-01 |
71712-82G00-000 |
US $1.60 |
||
|
12
|
12
09148-06007-000 NUTS; 2004-04-01~2005-12-01 |
09148-06007-000 |
from US $0.88 |
||
|
13
|
13
03242-06163-000
Screw
S; 2004-04-01~2005-12-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
13
|
13
03241-0616C-000 SCREWS; 2004-04-01~2005-12-01 |
03241-0616C-000 |
from US $0.76 |
||
|
14
|
14
02162-06163-000
Screw
S; 2004-04-01~2005-12-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust S; 2004-04-01~2005-12-01 |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
09409-08327-000 CLIPS; 2004-04-01~2005-12-01 |
09409-08327-000 |
from US $1.17 |
||
