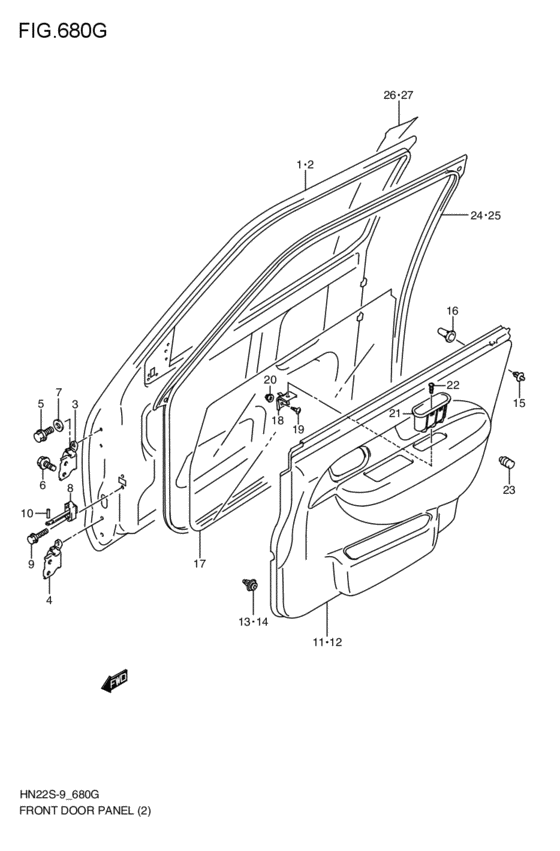

front door panel (ES,S; 2006-03-01~2007-06-01) Diagram Suzuki KEI/SWIFT
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- S
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-83G11-000
PANEL ASSY,FRONT DOOR,R
ES,S; 2006-03-01~2007-06-01 |
68001-83G11-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-83G01-000 PANEL ASSY,FRONT DOOR,RES,S; 2006-03-01~2007-06-01 |
68001-83G01-000 |
US $577.28 |
||
|
2
|
2
68002-81G11-000
PANEL ASSY,FRONT DOOR,L
ES,S; 2006-03-01~2007-06-01 |
68002-81G11-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-81G01-000 PANEL ASSY,FRONT DOOR,LES,S; 2006-03-01~2007-06-01 |
68002-81G01-000 |
US $577.28 |
||
|
3
|
3
69310-60G01-000 HINGE,FR DR NO.1アッパ ライト; ES,S; 2006-03-01~2007-06-01 |
69310-60G01-000 |
US $41.60 |
||
|
3
|
3
69320-60G01-000 HINGE,FR DR NO.2アッパ レフト; ES,S; 2006-03-01~2007-06-01 |
69320-60G01-000 |
US $41.60 |
||
|
4
|
4
69310-60G01-000 HINGE,FR DR NO.1ロア レフト; ES,S; 2006-03-01~2007-06-01 |
69310-60G01-000 |
US $41.60 |
||
|
4
|
4
69320-60G01-000 HINGE,FR DR NO.2ロア ライト; ES,S; 2006-03-01~2007-06-01 |
69320-60G01-000 |
US $41.60 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)ES,S; 2006-03-01~2007-06-01 |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
01551-0820A-000 BOLTES,S; 2006-03-01~2007-06-01 |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
69480-65D00-000
Washer
ES,S; 2006-03-01~2007-06-01 |
69480-65D00-000 |
— | ||
|
8
|
8
81810-65D00-000 STOP,FRONT DOOR OPENES,S; 2006-03-01~2007-06-01 |
81810-65D00-000 |
US $37.24 |
||
|
9
|
9
09122-86004-000 SCREW(6X20)ES,S; 2006-03-01~2007-06-01 |
09122-86004-000 |
US $11.80 |
||
|
10
|
10
81831-70B00-000 PIN,DOOR OPEN STOPPER BODYES,S; 2006-03-01~2007-06-01 |
81831-70B00-000 |
US $1.60 |
||
|
11
|
11
83710-83GB0-DJU
トリム,フロントドア,ライト
レッド/グレー; S; 2006-03-01~2007-06-01 |
83710-83GB0-DJU |
— | ||
| replacement | |||||
|
11
|
11
83710-83GB2-DJU
New Genuine Part
レッド/グレー; S; 2006-03-01~2007-06-01 |
83710-83GB2-DJU |
— | ||
|
12
|
12
83720-83GB0-DJU
トリム,フロントドア,レフト
レッド/グレー; S; 2006-03-01~2007-06-01 |
83720-83GB0-DJU |
— | ||
| replacement | |||||
|
12
|
12
83720-83GB2-DJU
New Genuine Part
レッド/グレー; S; 2006-03-01~2007-06-01 |
83720-83GB2-DJU |
— | ||
|
13
|
13
09409-08320-000 CLIPES,S; 2006-03-01~2007-06-01 |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
09409-10312-000 CLIPES,S; 2006-03-01~2007-06-01 |
09409-10312-000 |
from US $1.08 |
||
|
15
|
15
09409-06314-5PK CLIP(BLACK)ブラック; ES,S; 2006-03-01~2007-06-01 |
09409-06314-5PK |
from US $1.40 |
||
|
16
|
16
83751-75G00-000 SEAL,CLIPES,S; 2006-03-01~2007-06-01 |
83751-75G00-000 |
US $2.17 |
||
|
17
|
17
83911-60X51-000
Cover, door sealing (600x1200)
ES,S; 2006-03-01~2007-06-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
17
|
17
83911-60X52-000 COVER,DR SEALINGES,S; 2006-03-01~2007-06-01 |
83911-60X52-000 |
US $6.06 |
||
|
18
|
18
83751-55J0V-000 BRACKET FR DR TRIMES,S; 2006-03-01~2007-06-01 |
83751-55J0V-000 |
US $3.64 |
||
|
19
|
19
03241-0612A-000 SCREWES,S; 2006-03-01~2007-06-01 |
03241-0612A-000 |
US $0.80 |
||
|
20
|
20
09148-06007-000 NUTES,S; 2006-03-01~2007-06-01 |
09148-06007-000 |
from US $0.88 |
||
|
21
|
21
83799-75H00-P4Z HANDLE,SIDE DOOR TRIMグレ-; ES,S; 2006-03-01~2007-06-01 |
83799-75H00-P4Z |
US $9.64 |
||
|
22
|
22
09132-05058-000 SCREW(5X12)ES,S; 2006-03-01~2007-06-01 |
09132-05058-000 |
US $12.50 |
||
|
23
|
23
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower ES,S; 2006-03-01~2007-06-01 |
82711-56B00-000 |
from US $2.88 |
||
|
24
|
24
84641-75G00-000 WEATHERSTRIP,FR DR OPNG,RES,S; 2006-03-01~2007-06-01 |
84641-75G00-000 |
US $73.97 |
||
|
25
|
25
84651-75G00-000 WEATHERSTRIP,FR DR OPNG,LES,S; 2006-03-01~2007-06-01 |
84651-75G00-000 |
from US $69.82 |
||
|
26
|
26
83921-75G10-ME7 TAPE,FR DOOR OUTER,Rブラック; S; 2006-03-01~2007-06-01 |
83921-75G10-ME7 |
US $34.96 |
||
|
27
|
27
83922-75G10-ME7 TAPE,FR DOOR OUTER,Lブラック; S; 2006-03-01~2007-06-01 |
83922-75G10-ME7 |
US $34.96 |
||
